Vetus Louvered Air Suction Vent, Aluminum ASV 70

SKU: VTSASV070A  |  Manuf. Code: ASV070A
$281.27 $210.95 USD

Description

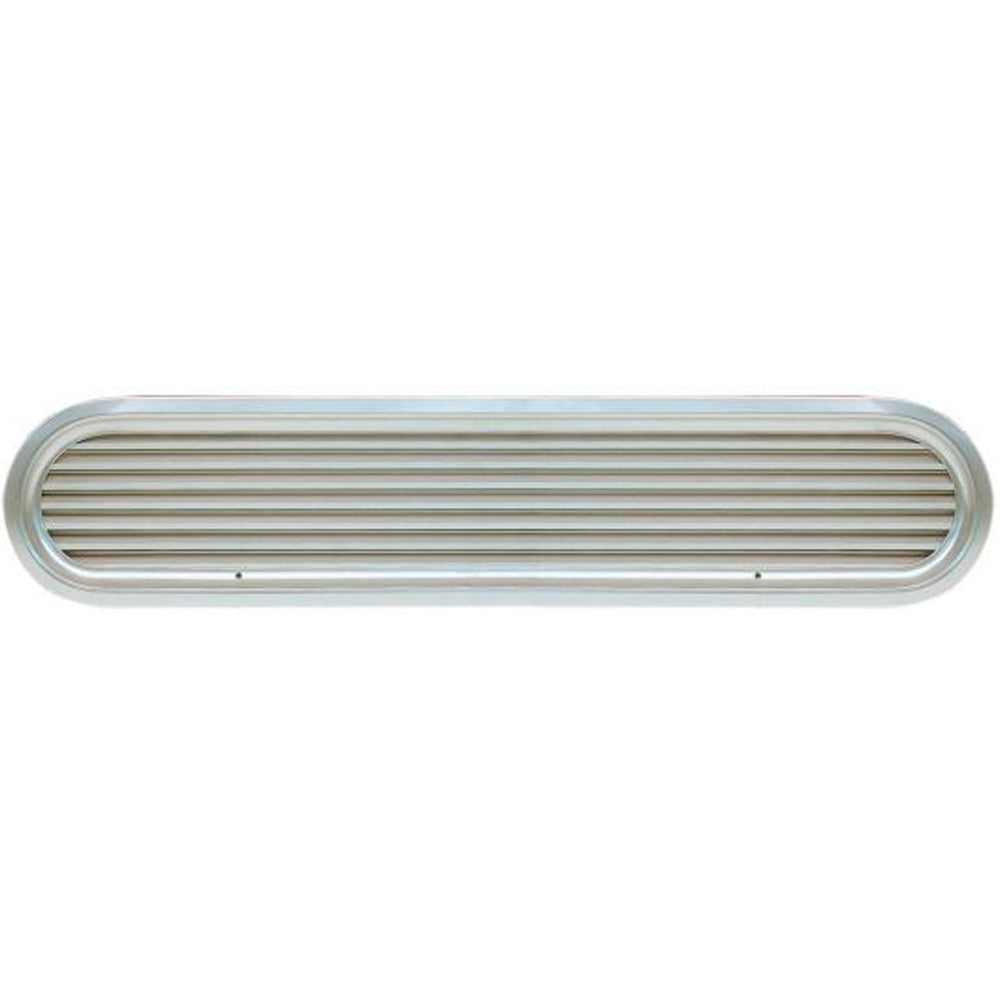

The ASV70A vent frame is polished and grilles are naturally anodised aluminium. Model number relates to the engine horsepower for which it is suitable.

Our Part # VTSASV070A | Mfr. Part # ASV070A

Technical Information

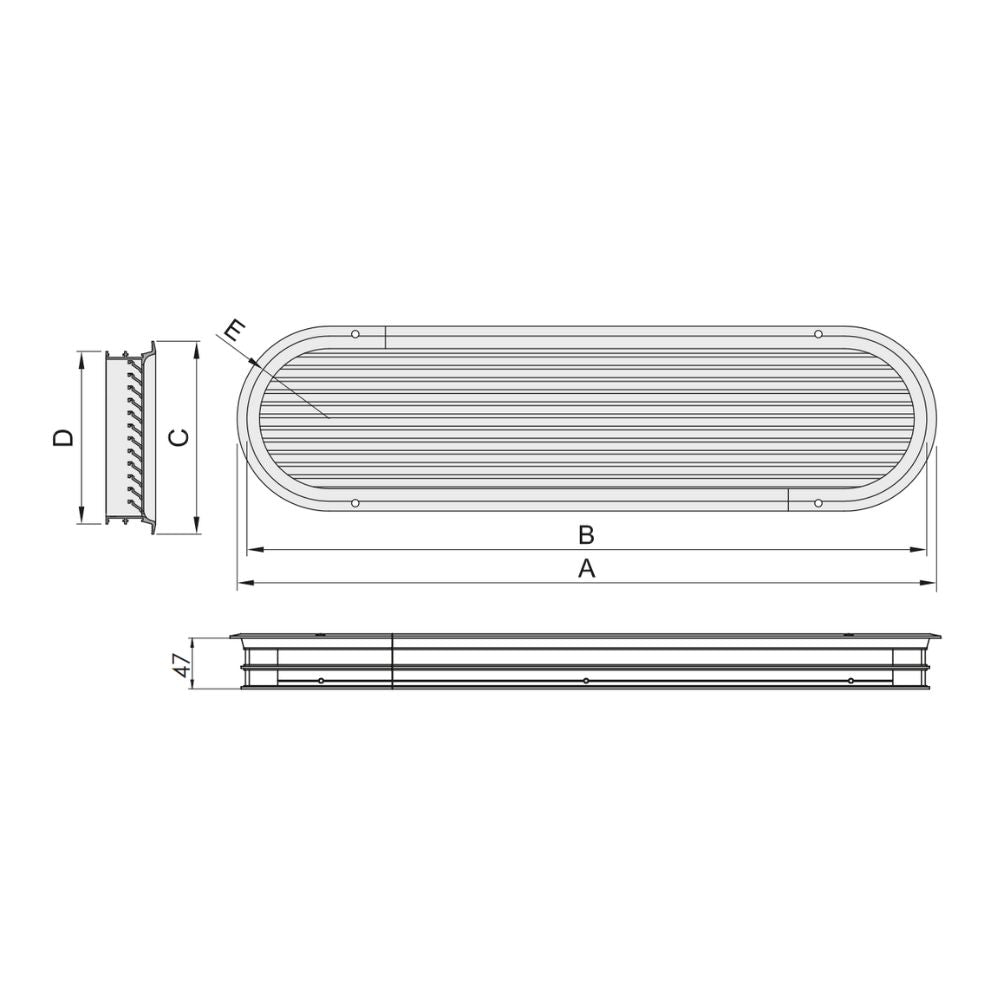

DescriptionImperialMetric
Lenght A 23 1/4 in.590.00 mm.
Lenght B cut-out22 7/16 in.570.00 mm.
Lenght C6 1/4 in.159.00 mm.
Lenght D cut-out5 1/2 in.139.00 mm.
Lenght E cut-out radius2 3/4 in.69.50 mm.
Free flow area43.87 square in.283.00 square cm.
