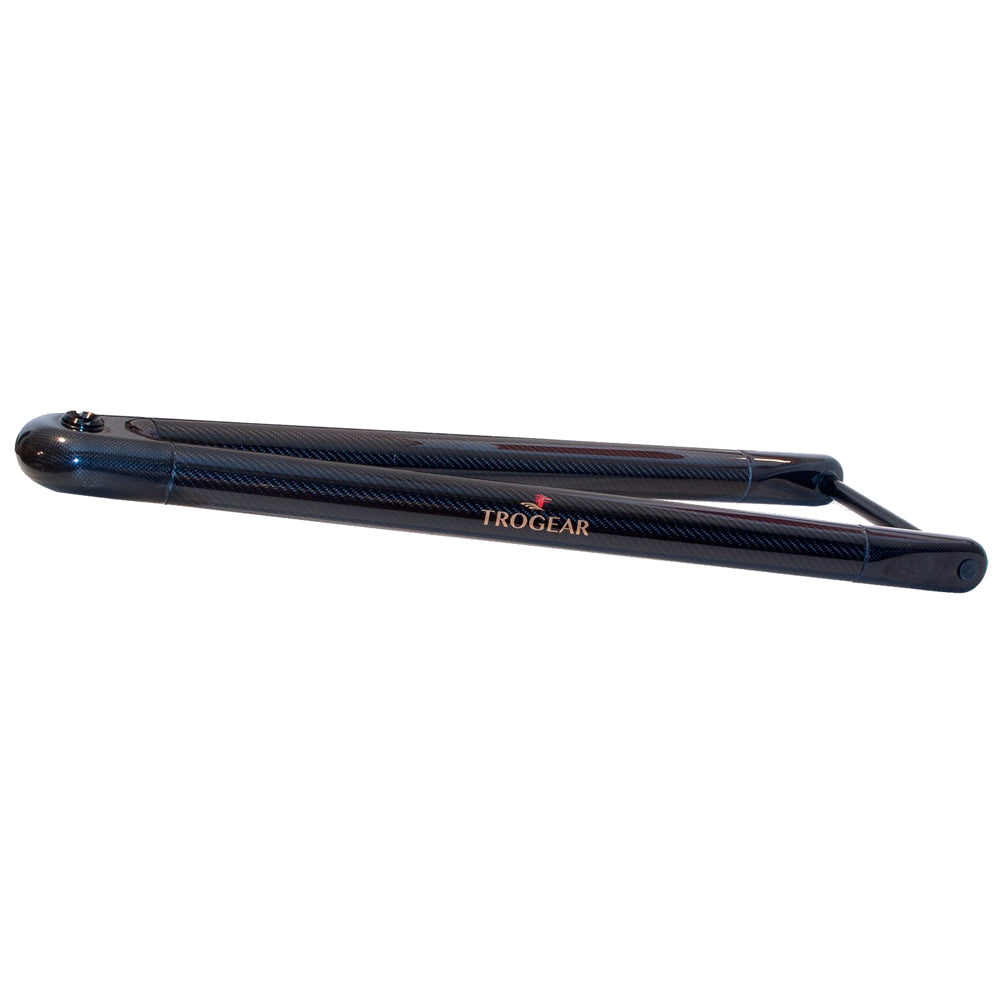

Trogear Adjustable Bowsprit AS-25 - 33 in. Long (for boats up to 26 ft.)
Trogear Adjustable Bowsprit AS-25 - 33 in. Long (for boats up to 26 ft.) is backordered and will ship as soon as it is back in stock.
Description
Description
Trogear's AS-30 Adjustable Bowsprit is made from top of the line carbon fiber and is suited for cruisers, racers, or anyone who fly's Asymmetrical Spinnakers and Code 0. The unique AS-25 Adjustable Bowsprit can also be deck or anchor roller mounted and the luff tension is adjustable from the cockpit. The AS-25 is suitable for sailboats up to 30 feet.
Base model includes parts needed for Through Hull install:- G10 fiberglass hinge tube
- Hinge Shaft: Aluminum 6061, black anodized shaft w/bolts
- Marine grade bolts and washers
Does not include parts for the bobstay rigging
3 - year warranty.
If you are looking to install the bowsprit in another place rather than directly through the hull, please contact us to make sure the installation is feasible.
Our Part # TROAS25001 | Trogear Part # AS-25
Knowledge Base
Knowledge Base
Click on the following articles to find relevant information about Trogear:
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Shaft Material | Marine grade anodized Aluminum w/bolts | |
Length | 33 1/2 in. | 85.00 cm. |
Weigth | 2.25 lb. | 1.10 kg. |
Extended Past Bow | 24.00 in. | 61.00 cm. |
Inside Width at Hinge | 8 5/6 in. | 22.40 cm. |
Bushing | Marine grade anodized aluminum | |
Max Asymmetrical Spinnaker | 750.00 ft2. | 70.00 m2. |
Max Code 0 | 600.00 ft2. | 58.00 m2. |
Safe Working Load | 1500.00 lb. | 700.00 kg. |
