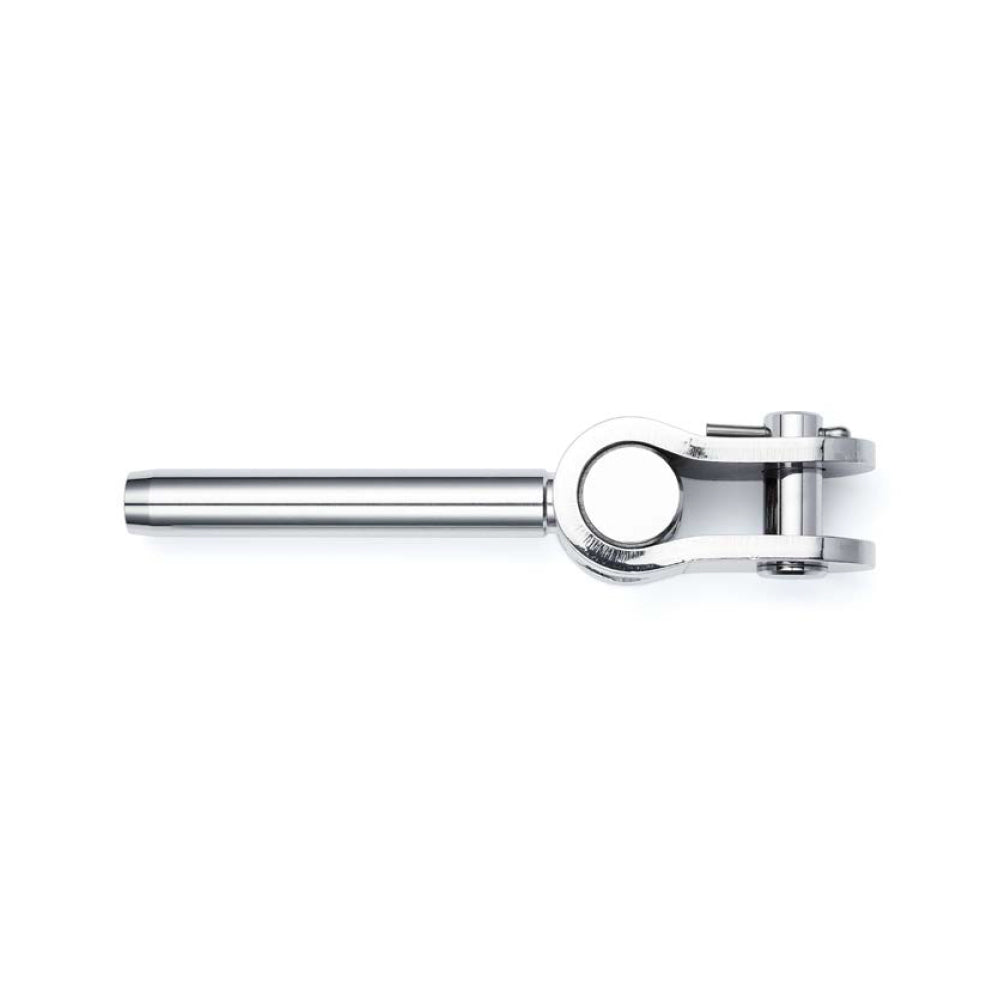

Sta-Lok Standing Rigging - Swage Toggle Fork - For Wire: 7/32 in
SKU:
STA-132-55
|
Manuf. Code:
132-55
18% off
Unit price
/
Unavailable
Sta-Lok Standing Rigging - Swage Toggle Fork - For Wire: 7/32 in is backordered and will ship as soon as it is back in stock.
Description
Description
Suitable for use with rotary & fixed die swaging machine
Our Part # STA-132-55 | Sta-Lok Part # 132-55
Features
Features
Feature:
- Manufactured from high specification 316 stainless steel.
- Use with 1x19, 7 Strand and compacted stand wire rope (IWRC).
- Minimum hole depth 10x wire diameter.
- Metric and Inch wire ropes.

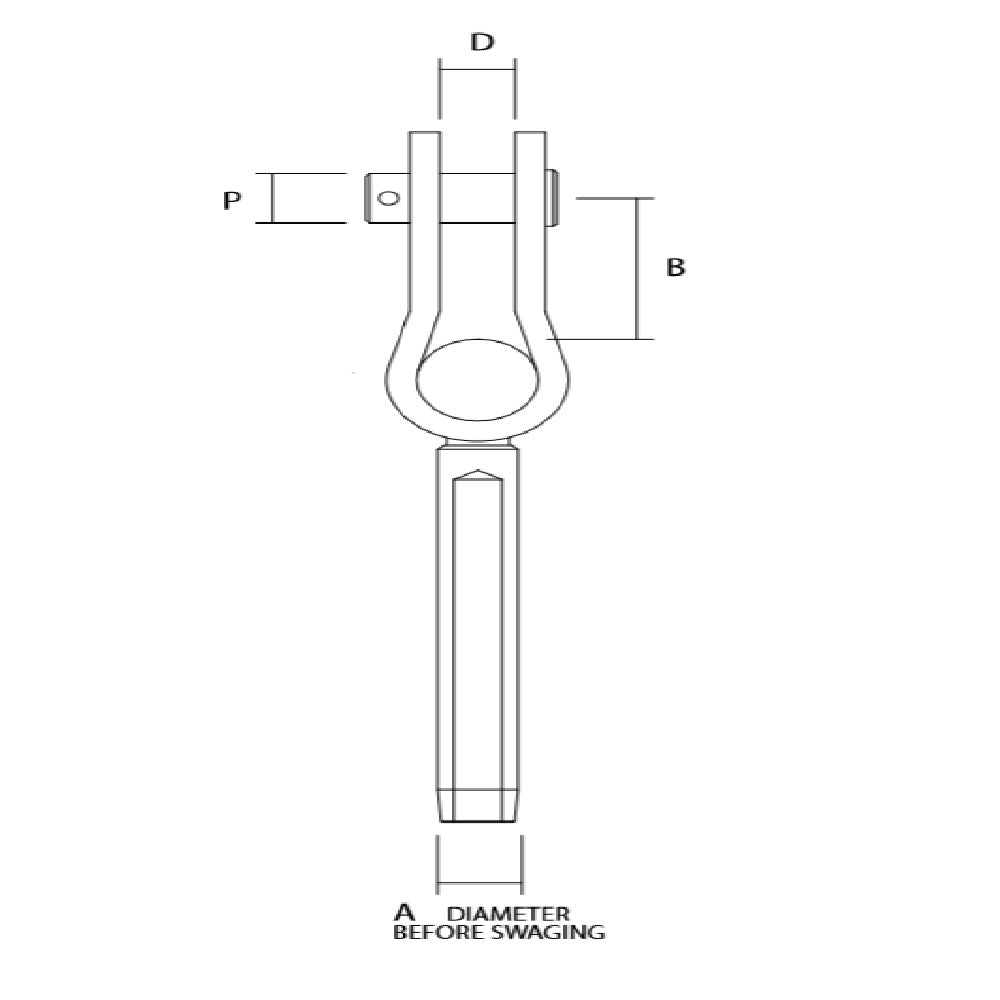

Technical Information
Technical Information
Wire: 7/32 in
A: 10.7 mm / 0.422 in
B: 25 mm / 0.984 in
D: 11.5 mm / 0.453 in
P: 11.1 mm / 7/16 in
Weight: 0.2 kg / 0.441 lb
