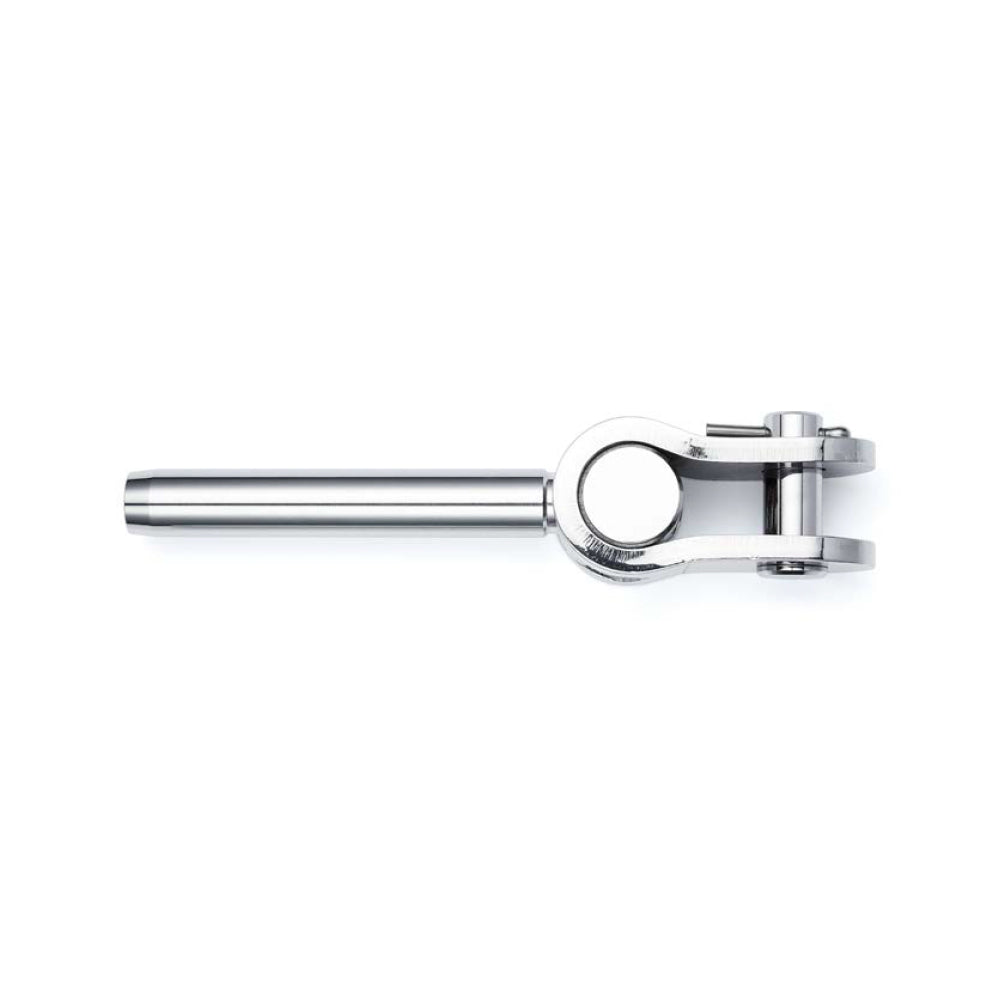

Sta-Lok Standing Rigging - Swage Toggle Fork - For Wire: 5/16 in & Pin: 1/2 in (12.7 mm)
SKU:
STA-038-08
|
Manuf. Code:
038-08
19% off
Unit price
/
Unavailable
Sta-Lok Standing Rigging - Swage Toggle Fork - For Wire: 5/16 in & Pin: 1/2 in (12.7 mm) is backordered and will ship as soon as it is back in stock.
Description
Description
Suitable for use with rotary & fixed die swaging machine.
Our Part # STA-038-08 | Sta-Lok Part # 038-08
Features
Features
Features:
- Manufactured from high specification 316 stainless steel.
- Use with 1Ã19, 7 Strand and compacted stand wire rope (IWRC).
- Metric and Inch wire ropes.
- Minimum hole depth 10x wire diameter.
- Unique toggle action for articulation in two planes.

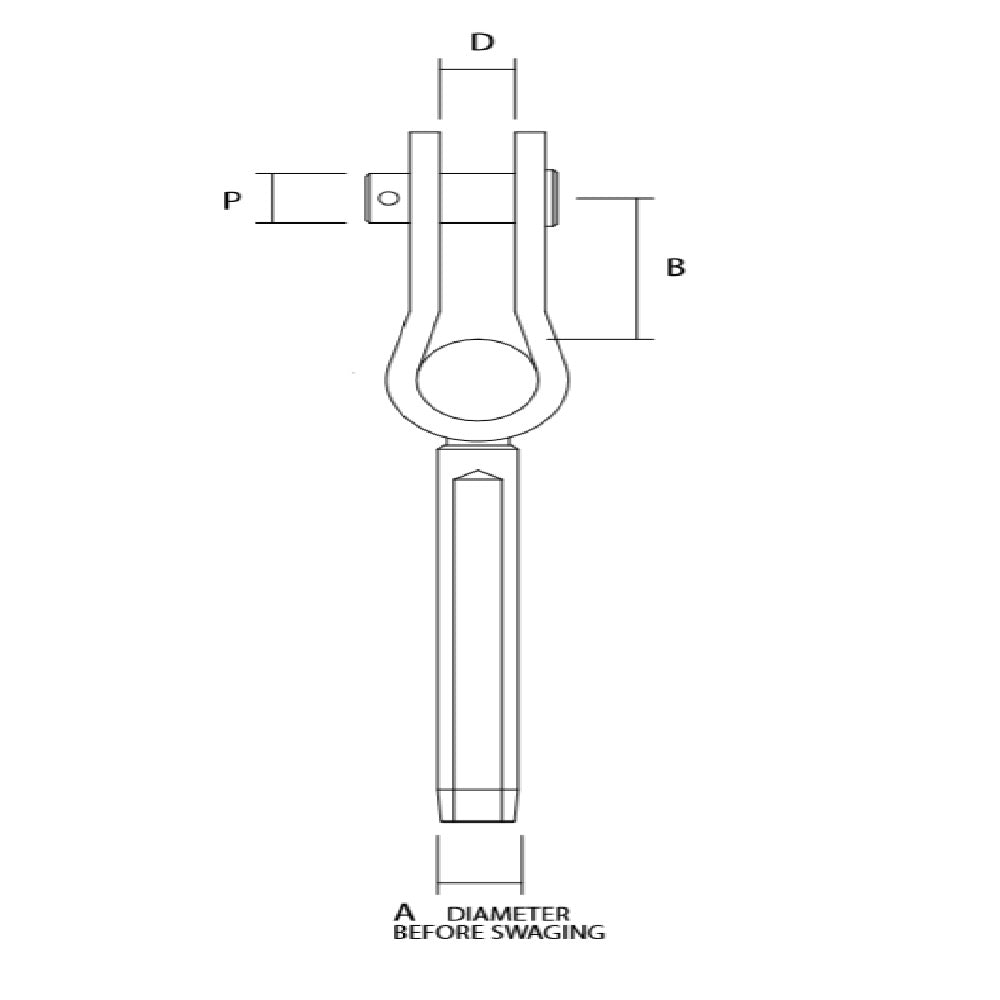

Technical Information
Technical Information
Wire: 8 mm / 5/16 in
A: 16.1 mm / 0.630 in
B: 28 mm / 1.102 in
D: 13.1 mm / 0.516 in
P: 12.7 mm / 1/2 in
Weight: 0.32 kg / 0.705 lb
