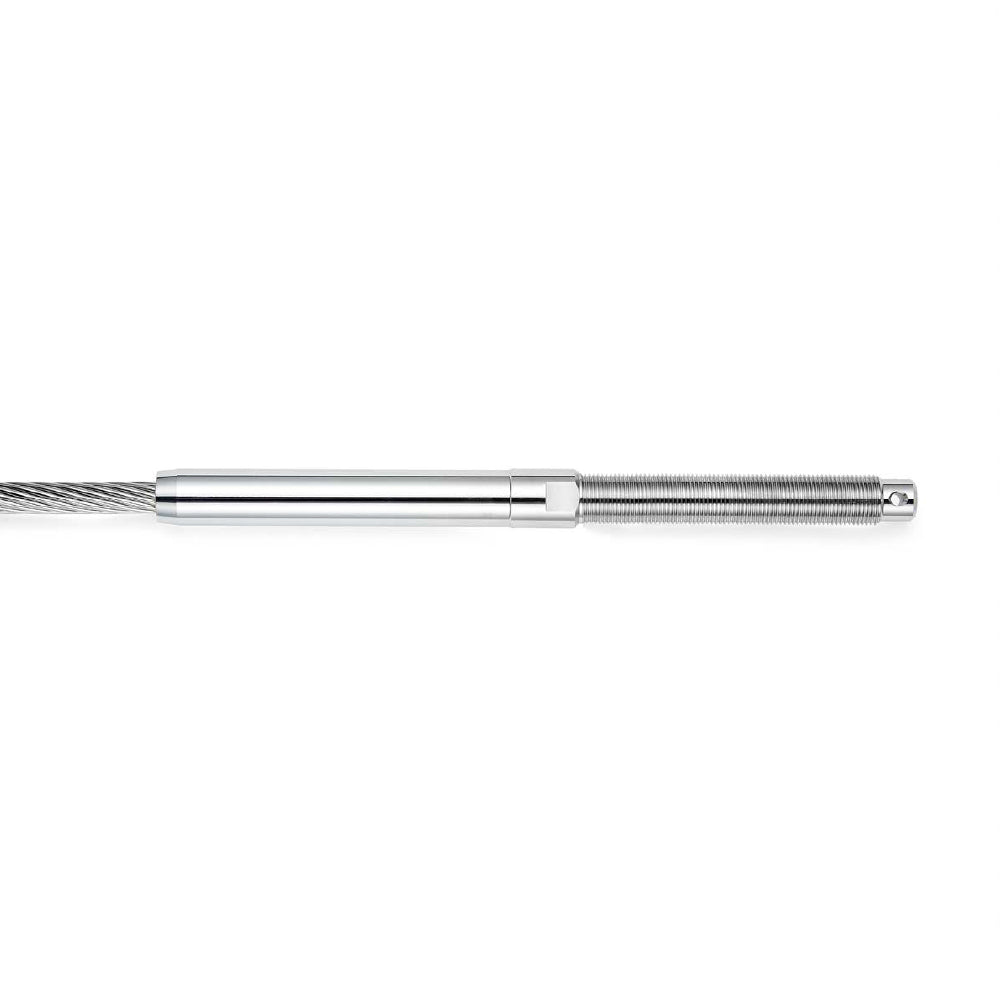

Sta-Lok Standing Rigging - Swage Stud Open (Right Hand) w/ Threads: 3/8 in - For Wire: 1/4 in
SKU:
STA-151-06-38
|
Manuf. Code:
151-06-3/8
20% off
Unit price
/
Unavailable
Sta-Lok Standing Rigging - Swage Stud Open (Right Hand) w/ Threads: 3/8 in - For Wire: 1/4 in is backordered and will ship as soon as it is back in stock.
Description
Description
Suitable for use with rotary & fixed die swaging machine.
Our Part # STA-151-06-38 | Sta-Lok Part # 151-06-3/8
Features
Features
Features:
- Manufactured from high specification 316 stainless steel.
- Use with 1x19, 7 Strand and compacted stand wire rope (IWRC).
- Metric and Inch wire ropes.
- Minimum hole depth 10x wire diameter.
- Use with open and closed body turnbuckles.
- Right hand thread only.
Technical Information
Technical Information
Wire: 1/4 in
Thread: 3/8 in

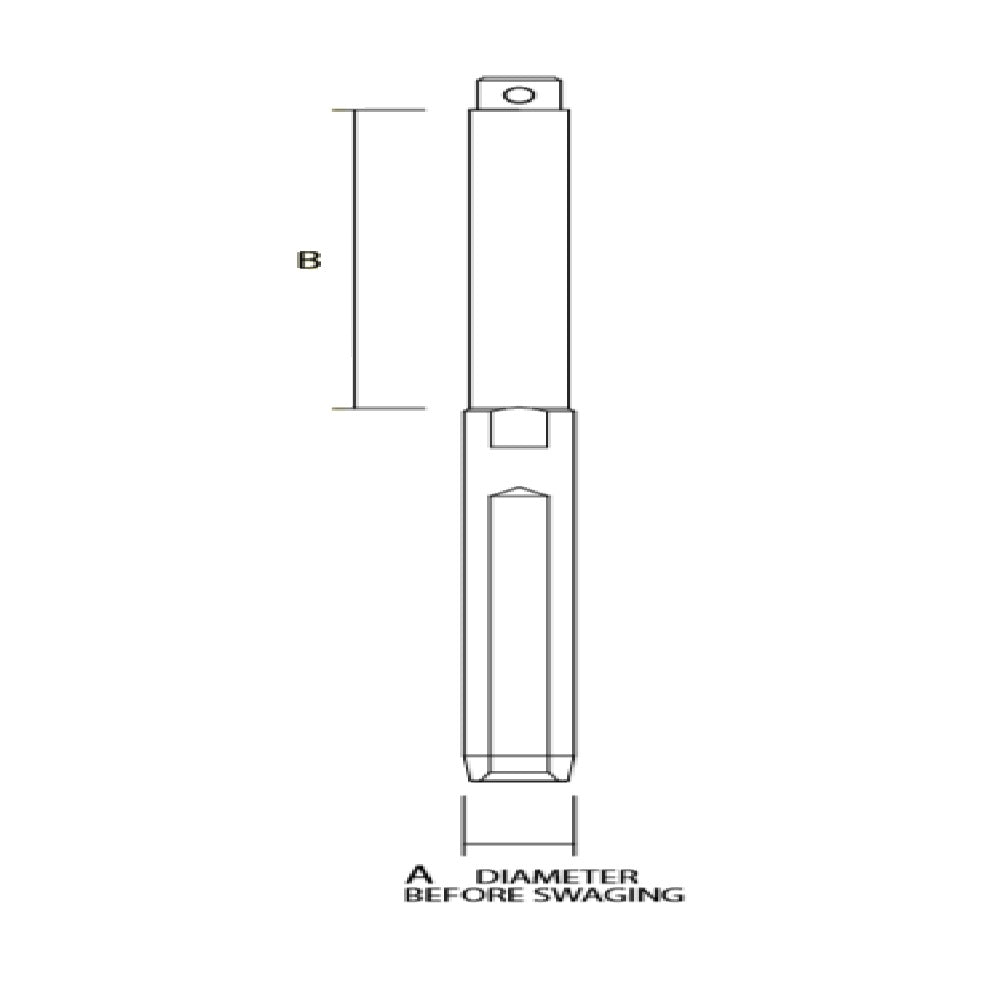

A: 12.5 mm / 0.494 in
C: 67 mm / 2.625 in
Weight: 0.1 kg / 0.22 lb
