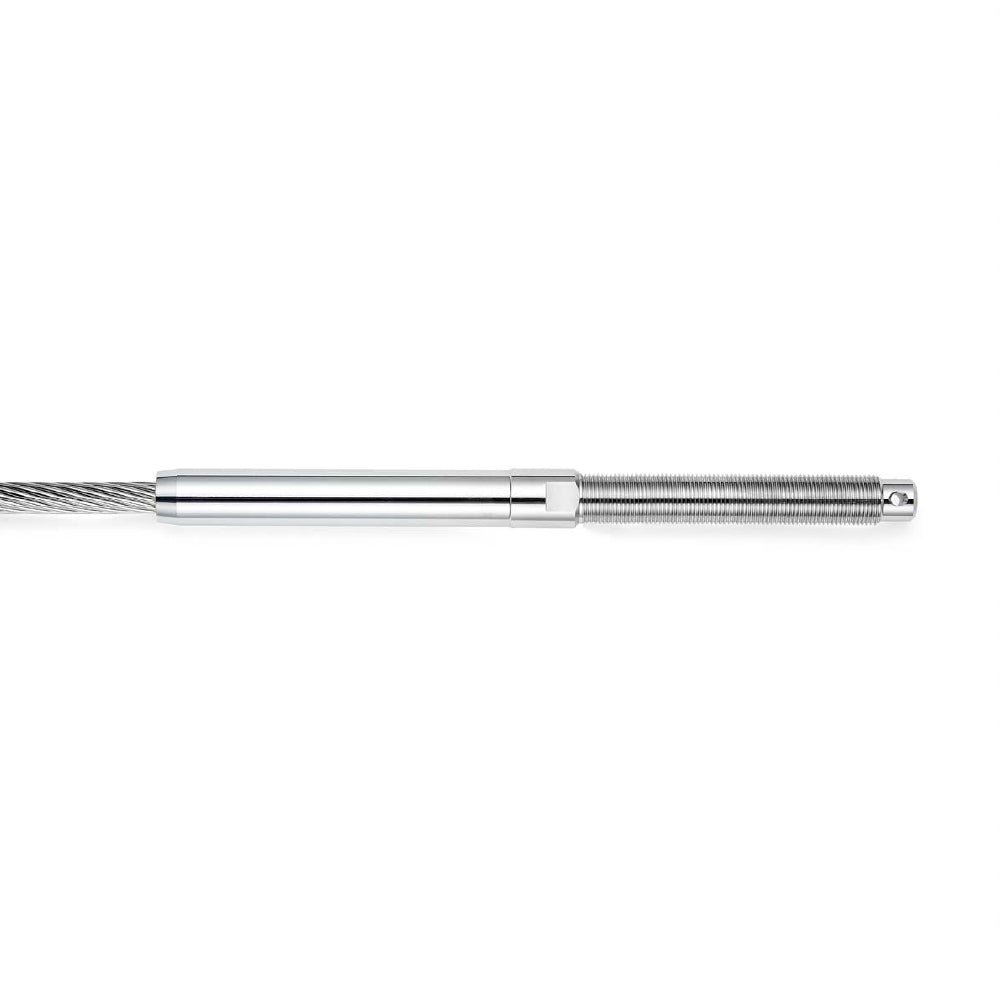

Sta-Lok Standing Rigging - Swage Stud Open (Right Hand) w/ Threads: 1/2 in - For Wire: 1/4 in

Suitable for use with rotary & fixed die swaging machine.

Our Part # STA-151-06-12 | Sta-Lok Part # 151-06-1/2

Features:

• Manufactured from high specification 316 stainless steel.
• Use with 1x19, 7 Strand and compacted stand wire rope (IWRC).
• Metric and Inch wire ropes.
• Minimum hole depth 10x wire diameter.
• Use with open and closed body turnbuckles.
• Right hand thread only.

Wire: 1/4 in
Thread: 1/2 in

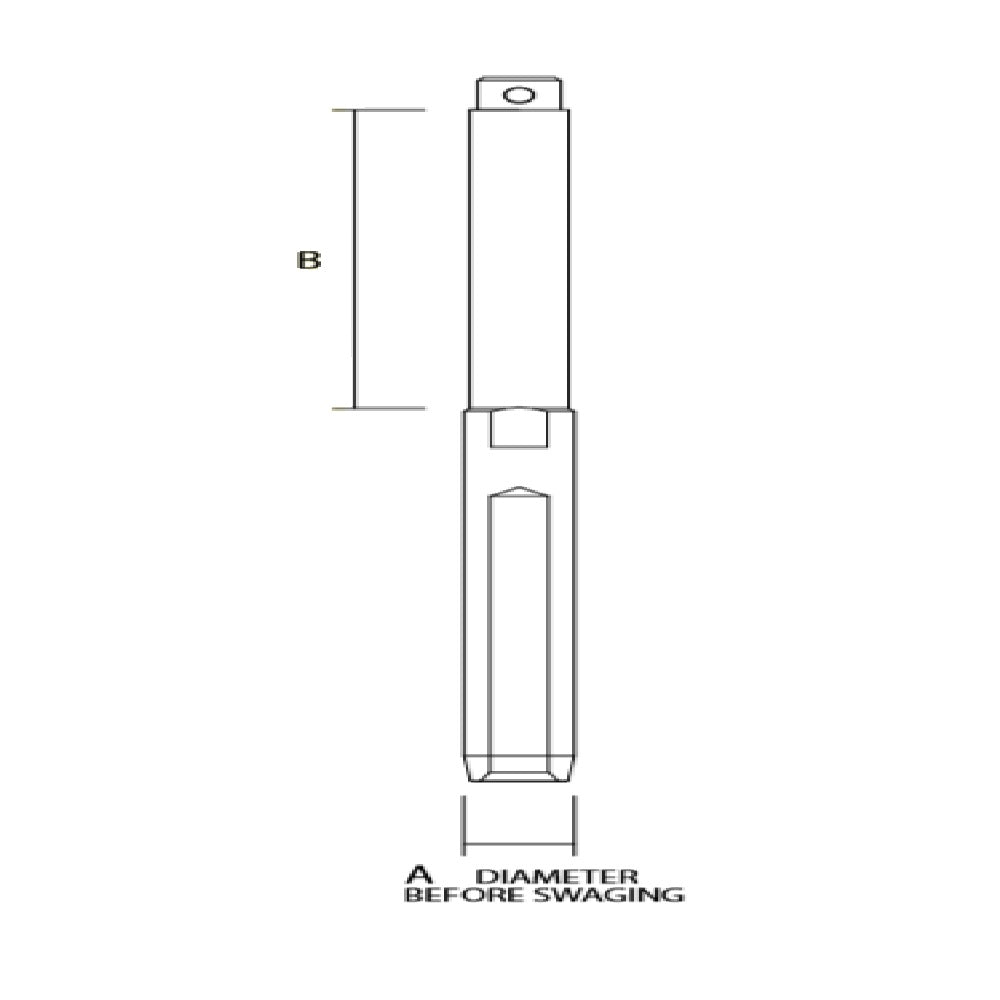

A: 12.5 mm / 0.494 in
C: 81 mm / 3.187 in
Weight: 0.14 kg / 0.309 lb
