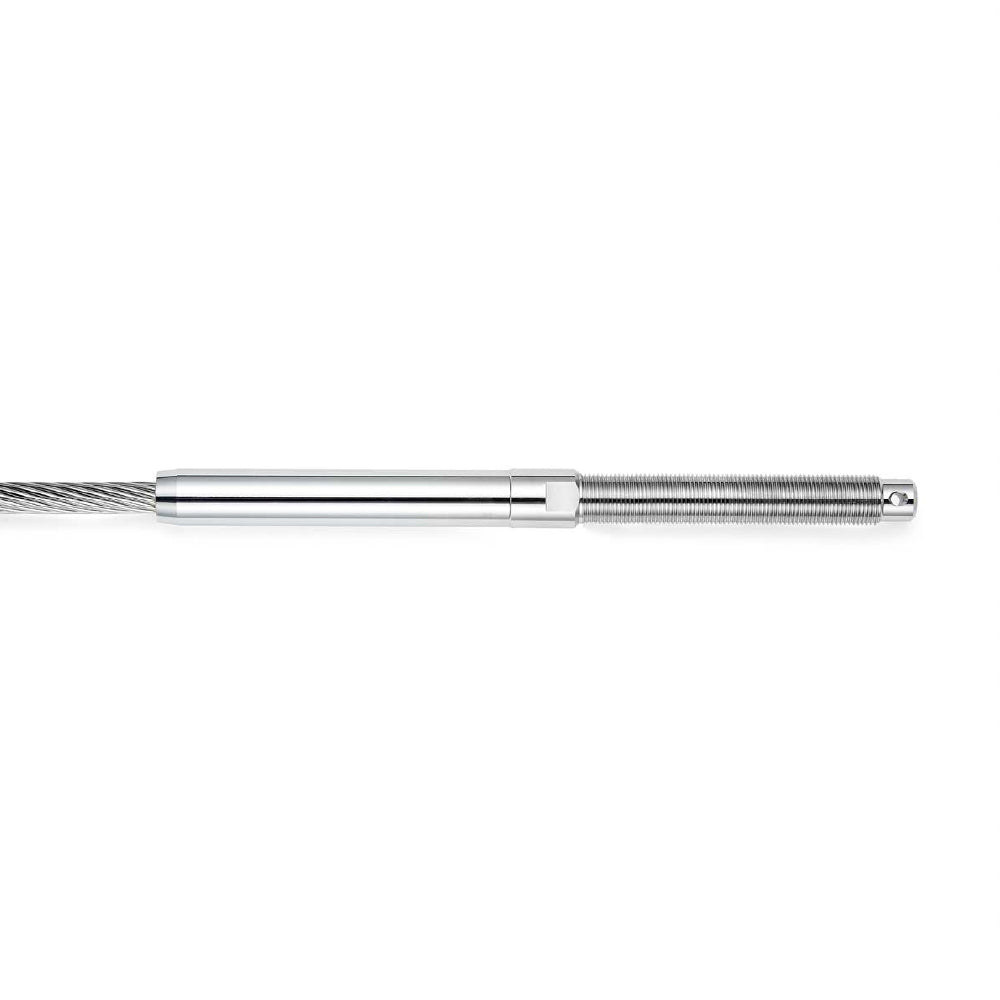

Sta-Lok Standing Rigging - Swage Stud Open (Right Hand) w/ Threads: 5/8 in - For Wire: 10.0 mm

Suitable for use with rotary & fixed die swaging machine.

Our Part # STA-051-10 | Sta-Lok Part # 051-10

Fetaures:

• Manufactured from high specification 316 stainless steel.
• Use with 1x19, 7 Strand and compacted stand wire rope (IWRC).
• Metric and Inch wire ropes.
• Minimum hole depth 10x wire diameter.
• Use with open and closed body turnbuckles.
• Right hand thread only.

Wire: 10 mm
Thread: 5/8

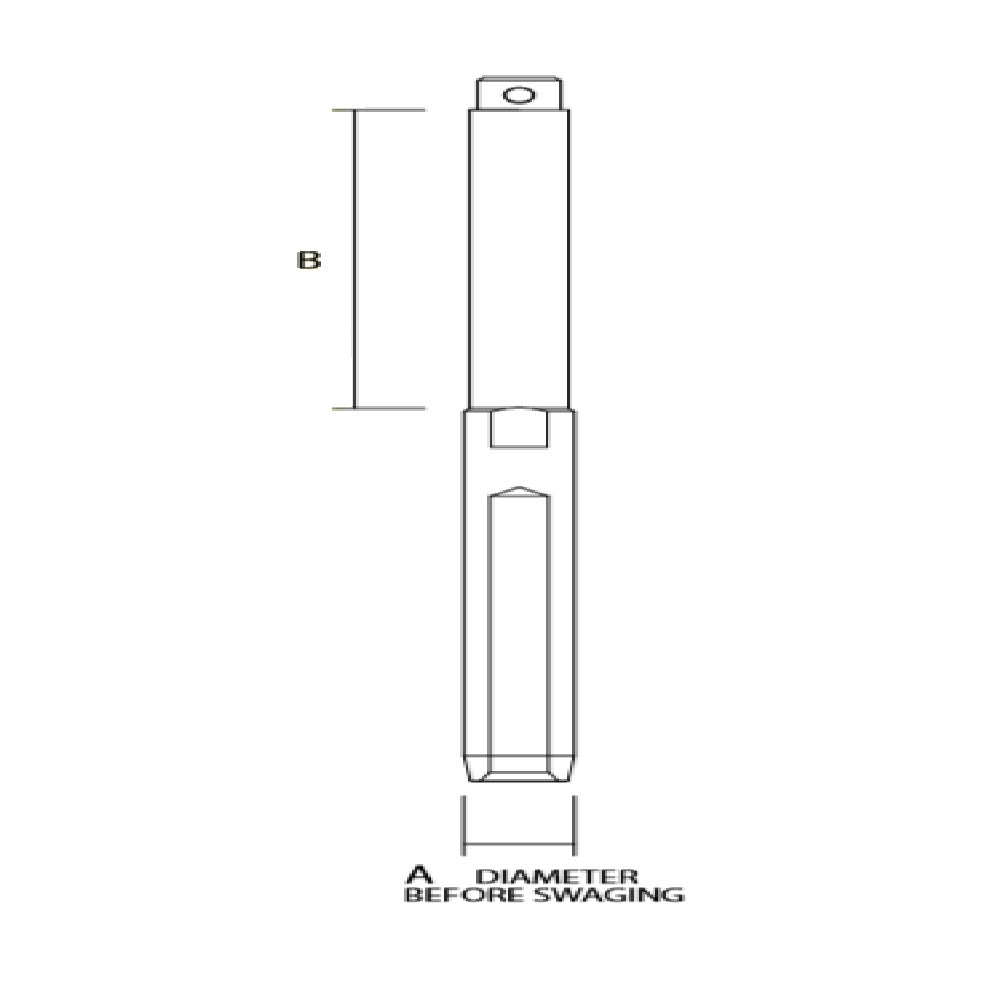

A: 17.7 mm / 0.698 in
B: 100 mm / 3.937 in
Weight: 0.3 kg / 0.661 lb
