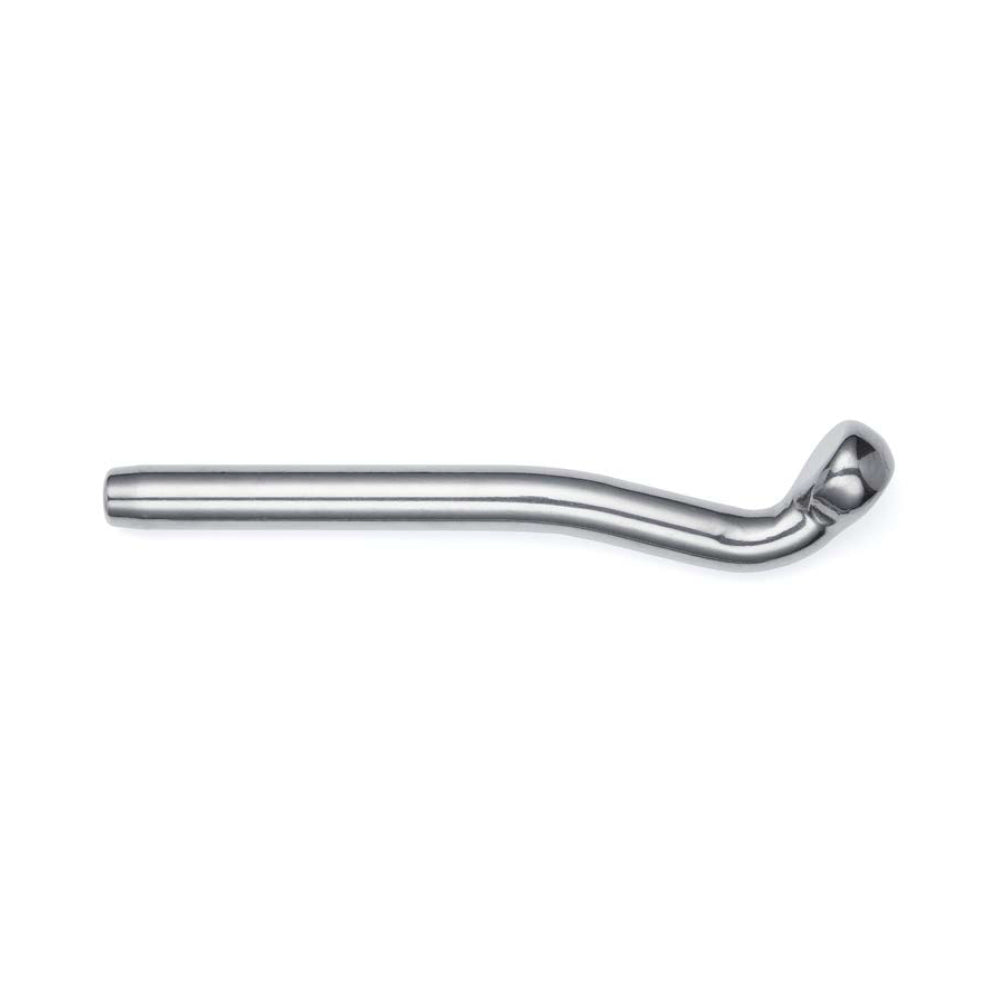

Sta-Lok Standing Rigging - Swage Shroud Terminal - Wire: 3/8 in

Suitable for use with rotary & fixed die swaging machine.

Our Part # STA-145-10 | Sta-Lok Part # 145-10

Features:

• Manufactured from high specification 316 stainless steel.
• Use with 1x19, 7 Strand and compacted stand wire rope (IWRC).
• Minimum hole depth 10x wire diameter.
• Metric and Inch wire ropes.

Wire: 3/8 in

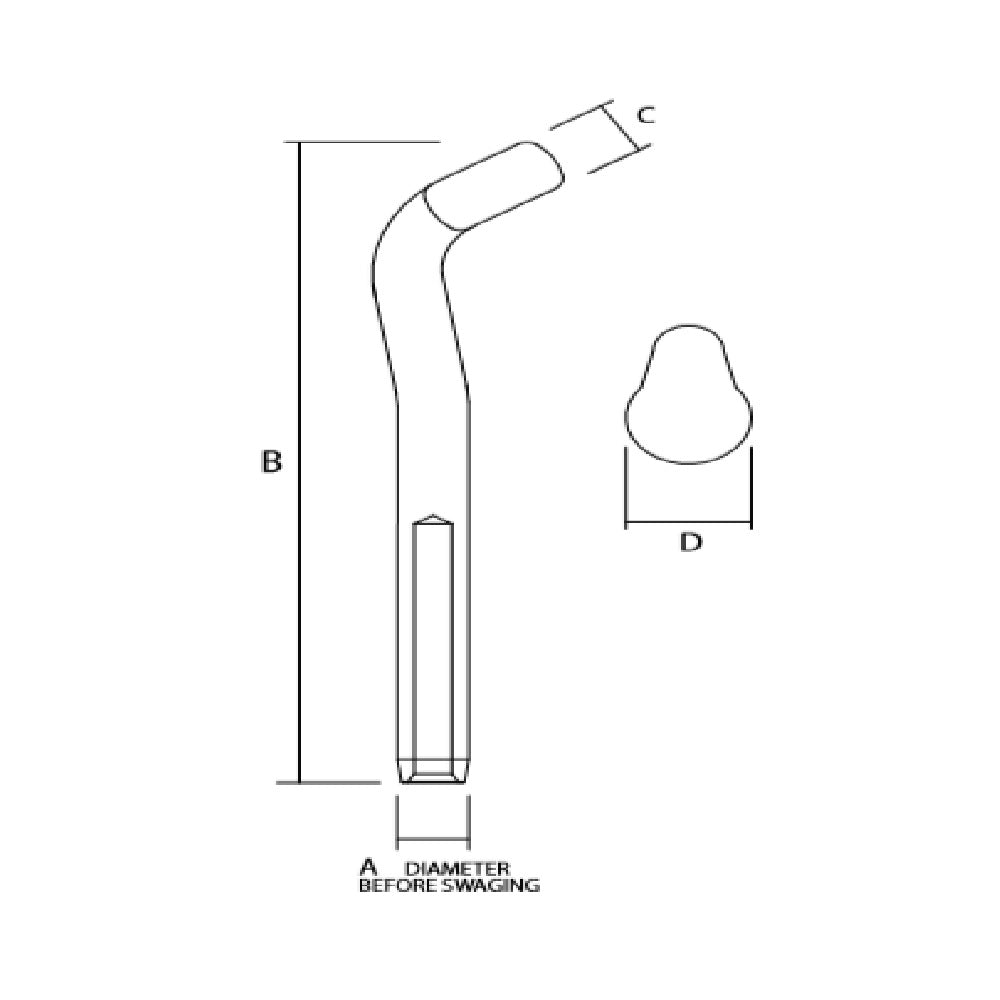

A: 17.7 mm / 0.698 in
B: 32 mm / 1.260 in
C: 17.8 mm / 0.7 in
D: 32 mm / 1.26 in
Weight: 0.38 kg / 0.838 lb
