Description

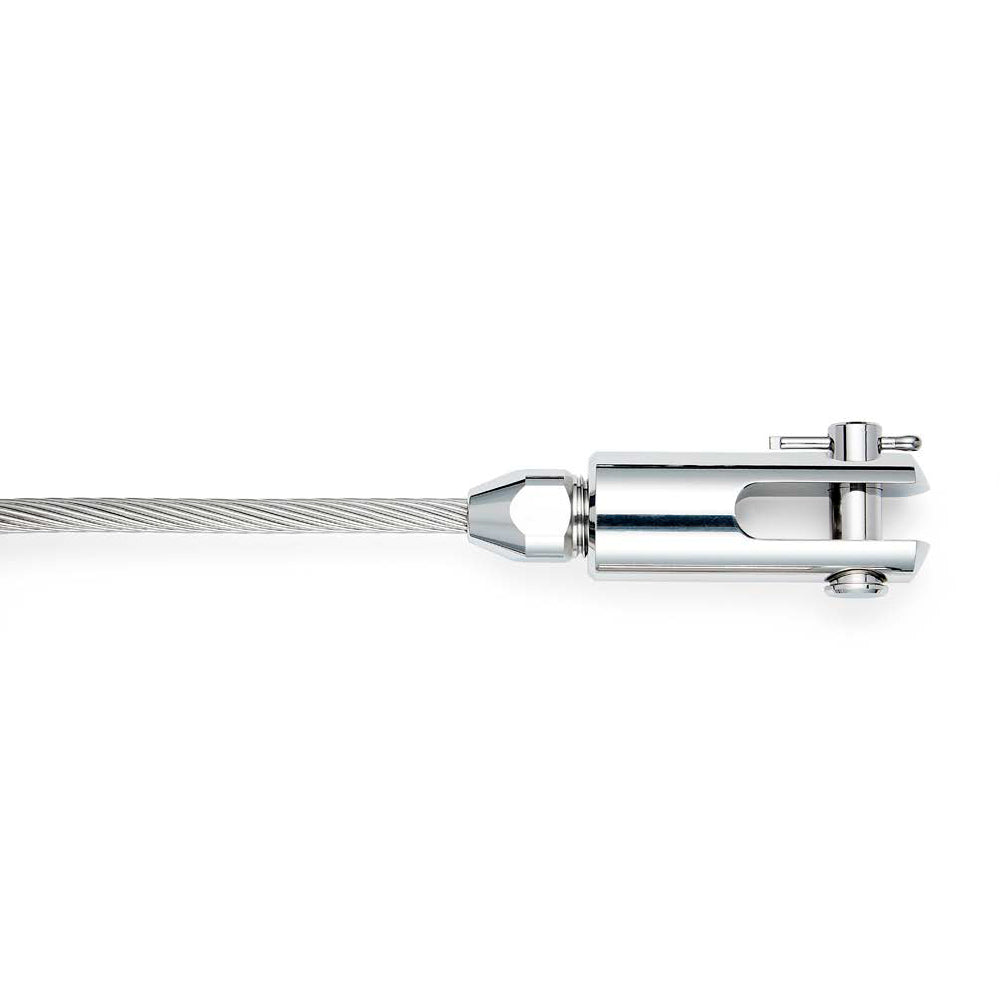

Sta-Lok Self Fit Terminal, the reusable alternative to swage.

Our Part # STA-134-12 | Mfr. Part # 134-12

Features

• Only basic hand tools required.
• Quick and easy to install.
• No pre-measurement needed.
• Guaranteed stronger than wire rope.
• Manufactured from high specification 316 stainless steel.
• For right hand and left hand lay wire rope.
• Packed for 1x19 wire as standard.
• Different wedges are available to terminate 7 strand & compacted wire ropes.

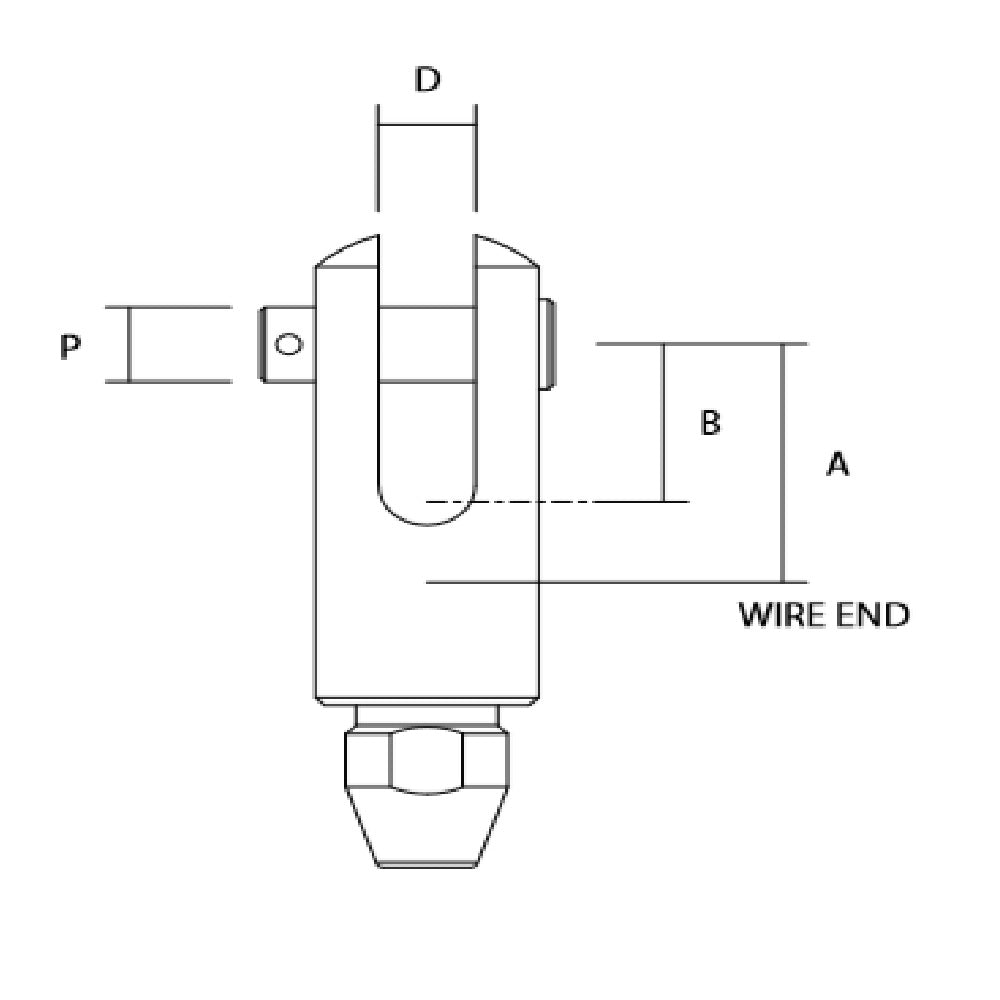

Technical Information

Wire: 1/2 in
A: 46 mm / 1.812 in
B: 33.3 mm / 1.312 in
D: 19.1 mm / 0.75 in
P: 18.5 mm / 3/4 in
Weight: 1.18 kg / 2.601 lb
