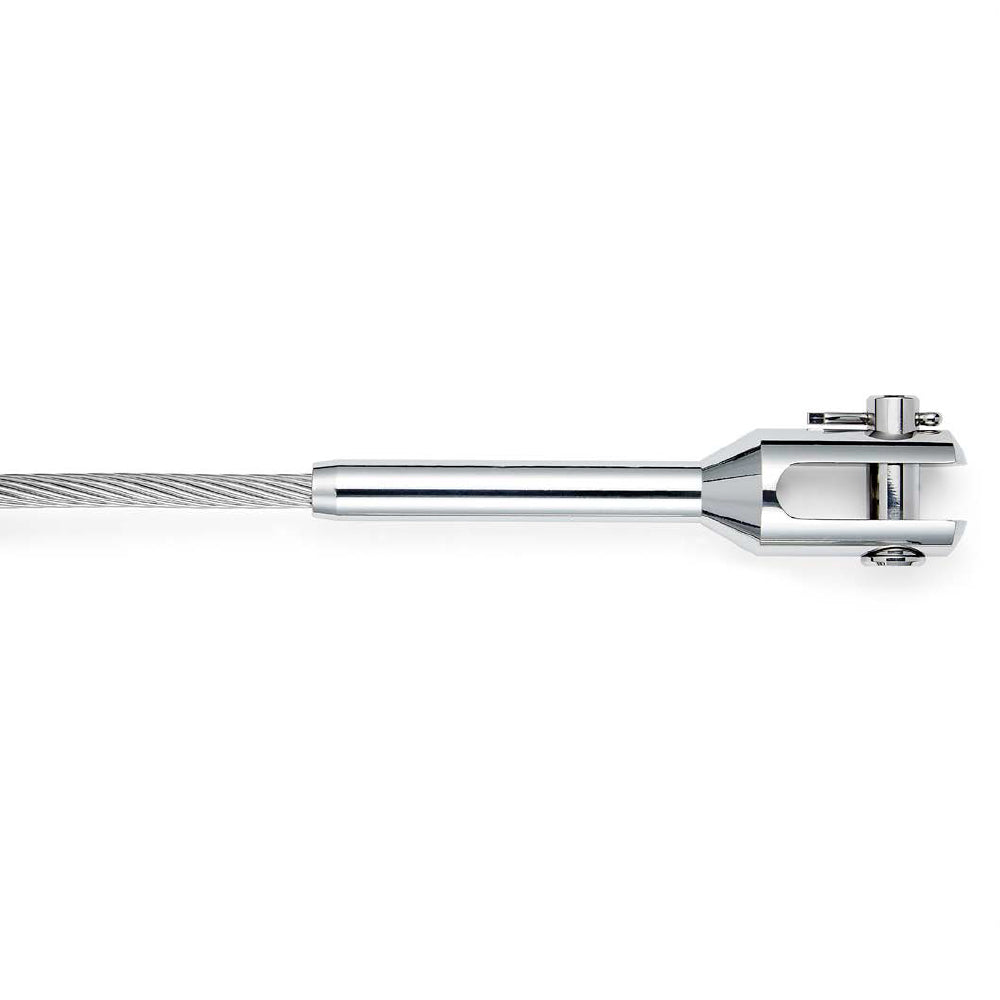

Sta-Lok Standing Rigging - Swage Fork - Wire: 1 in & Pin: 1 3/8 in (34.93 mm)

Sta-lok swageless DIY self-fit terminals are a simple mechanical method of terminating wire ropes.

Our Part # STA-035-26 | Sta-Lok Part # 035-26

Features:

• Sta-Lok Self Fit Terminal, the reusable alternative to swage.
• Only basic hand tools required.
• Quick and easy to install.
• No pre-measurement needed.
• Guaranteed stronger than wire rope.
• For right hand and left hand lay wire rope.
• Packed for 1x19 wire as standard.
• Manufactured from high specification 316 stainless steel.
• Different wedges are available to terminate 7 strand & compacted wire ropes.
• Supplied with split pin.
liRight hand thread only

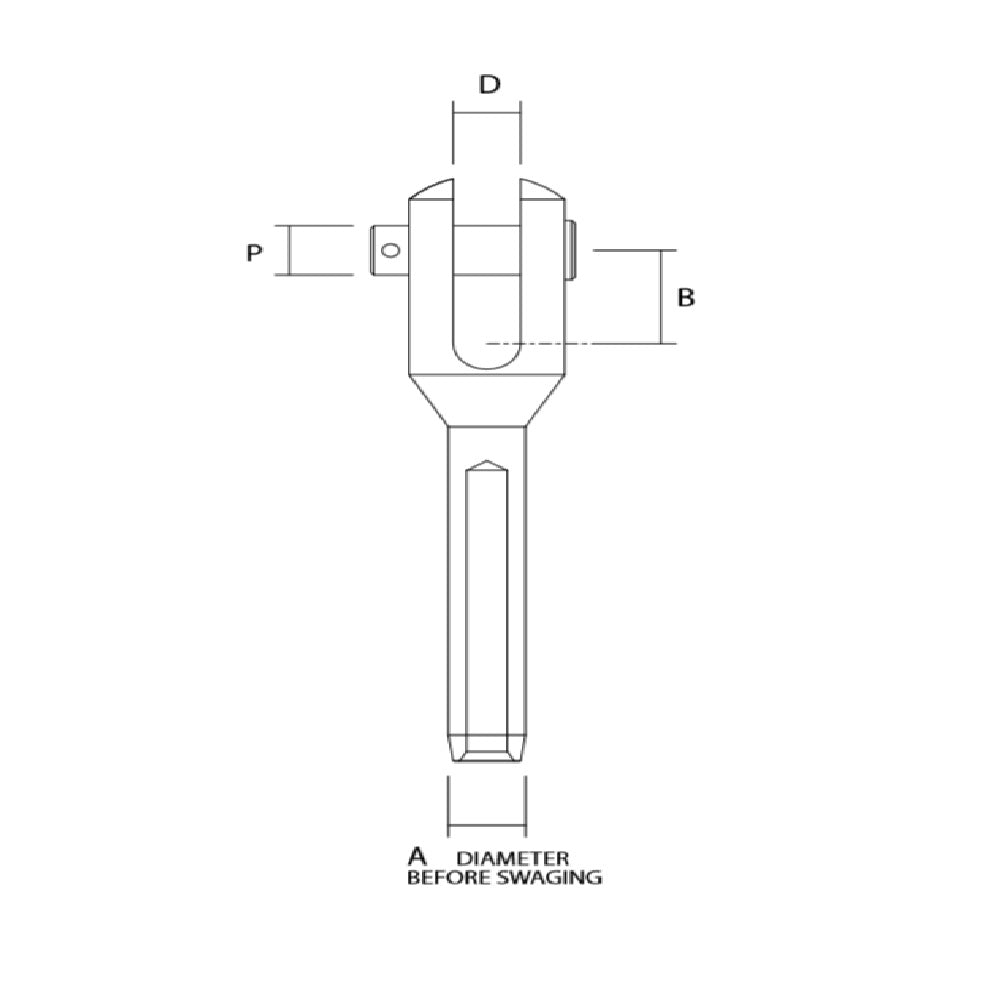

Wire: 26 mm / 1 in
A: 45.8 mm / 1.807 in
B: 60.3 mm / 2.375 in
D: 35 mm / 1.375 in
P: 34.6 mm / 1 3/8 in
Weight: 5 kg / 11.023 lb
