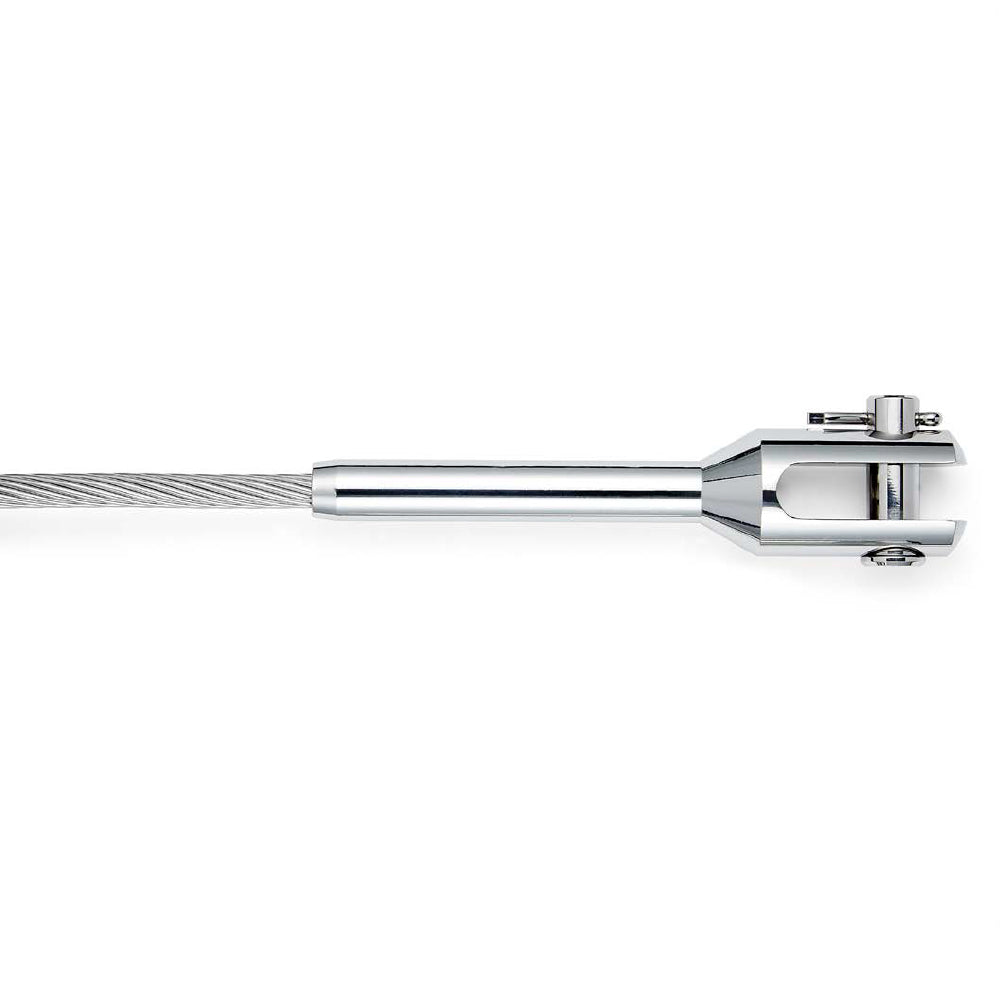

Sta-Lok Standing Rigging - Swage Fork - Wire: 3/4 in & Pin: 1 1/8 in (28.58 mm)

Sta-lok swageless DIY self-fit terminals are a simple mechanical method of terminating wire ropes.

Our Part # STA-035-19 | Sta-Lok Part # 035-19

Features:

• Manufactured from high specification 316 stainless steel.
• Suitable for use with rotary & fixed die swaging machine
• Use with 1x19, 7 Strand and compacted strand wire rope (IWRC).
• Designed to suit most chain plates and fixing points.
• Minimum hole depth 10x wire dimeter.
• Metric and Inch wire ropes.

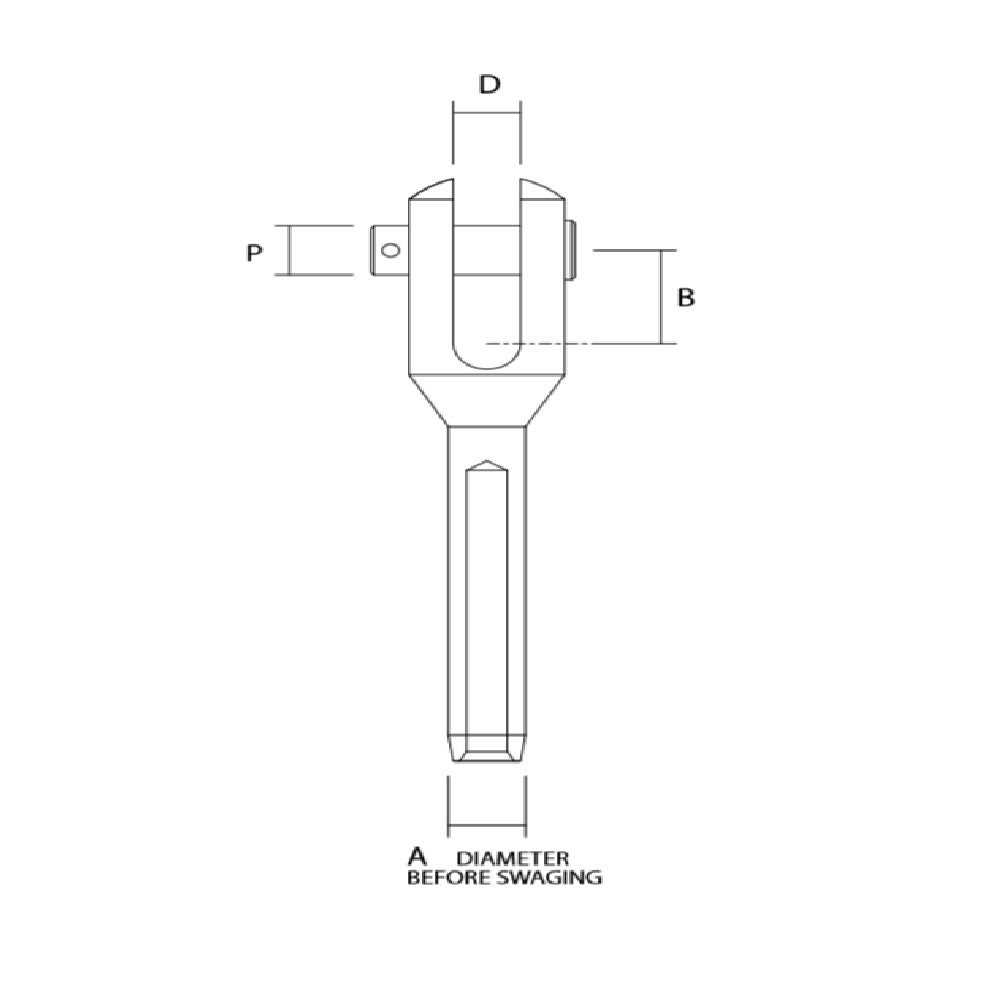

Wire: 19 mm / 5/8 in
A: 28 mm / 1.104 in
B: 40 mm / 1.576 in
D: 25.4 mm / 1 in
P: 25 mm / 1 in
Weight: 1.7 kg / 3.748 lb
