Description

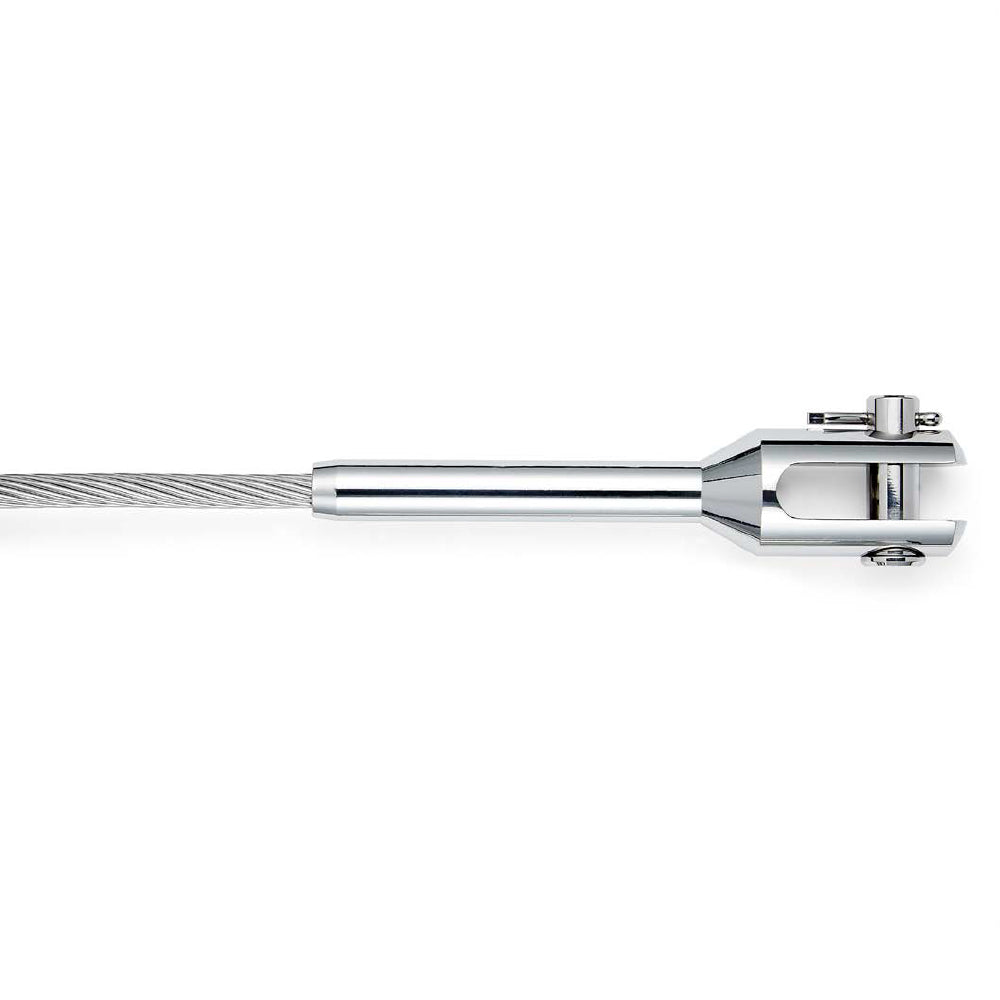

Sta-lok swageless DIY self-fit terminals are a simple mechanical method of terminating wire ropes.

Our Part # STA-035-12 | Mfr. Part # 035-12

Features

• Manufactured from high specification 316 stainless steel.
• Suitable for use with rotary & fixed die swaging machine
• Use with 1x19, 7 Strand and compacted strand wire rope (IWRC).
• Designed to suit most chain plates and fixing points.
• Minimum hole depth 10x wire dimeter.
• Metric and Inch wire ropes.

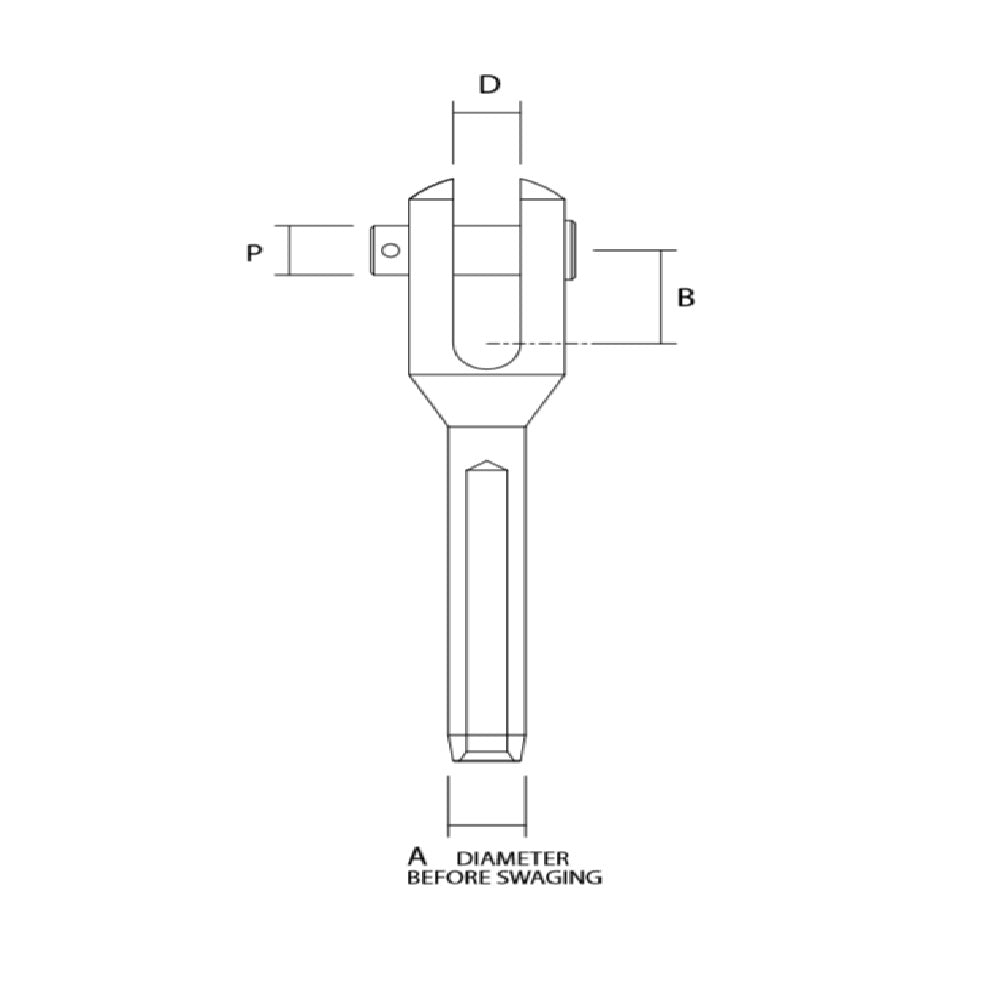

Technical Information

Wire: 12 mm
A: 21.3 mm / 0.839 in
B: 33.3 mm / 1.312 in
D: 19.1 mm / 0.75 in
P: 18.5 mm / 3/4 in
Weight: 0.9 kg / 1.984 lb
