Description

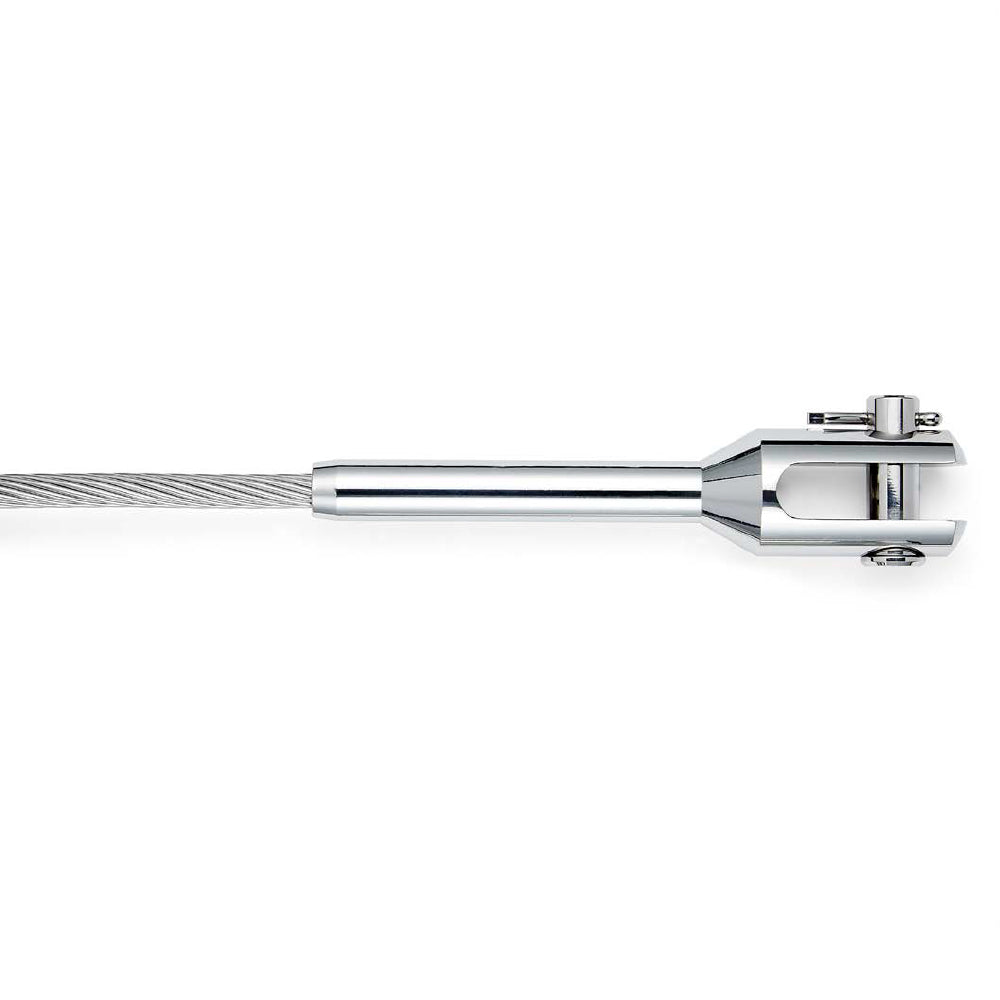

Sta-lok swageless DIY self-fit terminals are a simple mechanical method of terminating wire ropes.

Our Part # STA-035-05 | Sta-Lok Part # 035-05

Features

Features:

• Manufactured from high specification 316 stainless steel.
• Suitable for use with rotary & fixed die swaging machine
• Use with 1x19, 7 Strand and compacted strand wire rope (IWRC).
• Designed to suit most chain plates and fixing points.
• Minimum hole depth 10x wire dimeter.
• Metric and Inch wire ropes.

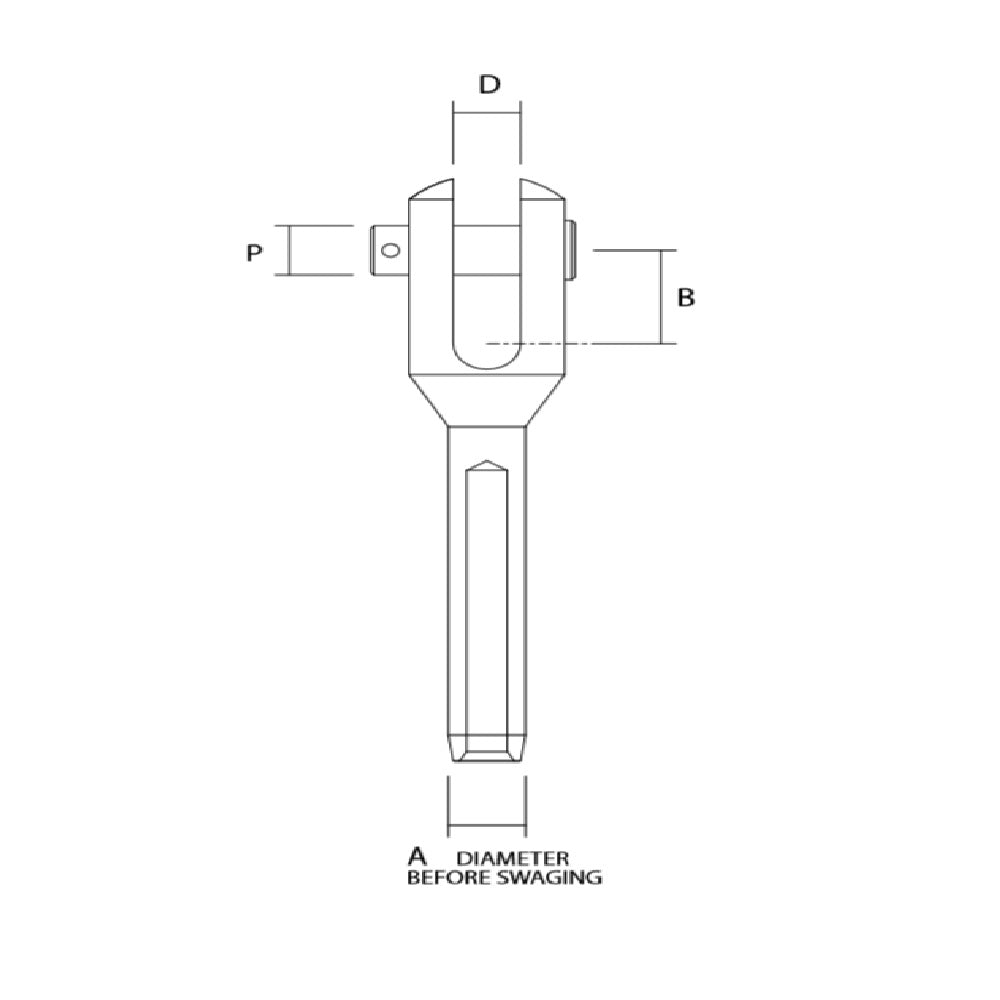

Technical Information

Wire: 5 mm / 3/16 in
A: 9 mm / 0.354 in
B: 17.5 mm / 0.687 in
D: 9.5 mm / 0.374 in
P: 9.3 mm / 3/8 in
Weight: 0.1 kg / 0.22 lb
