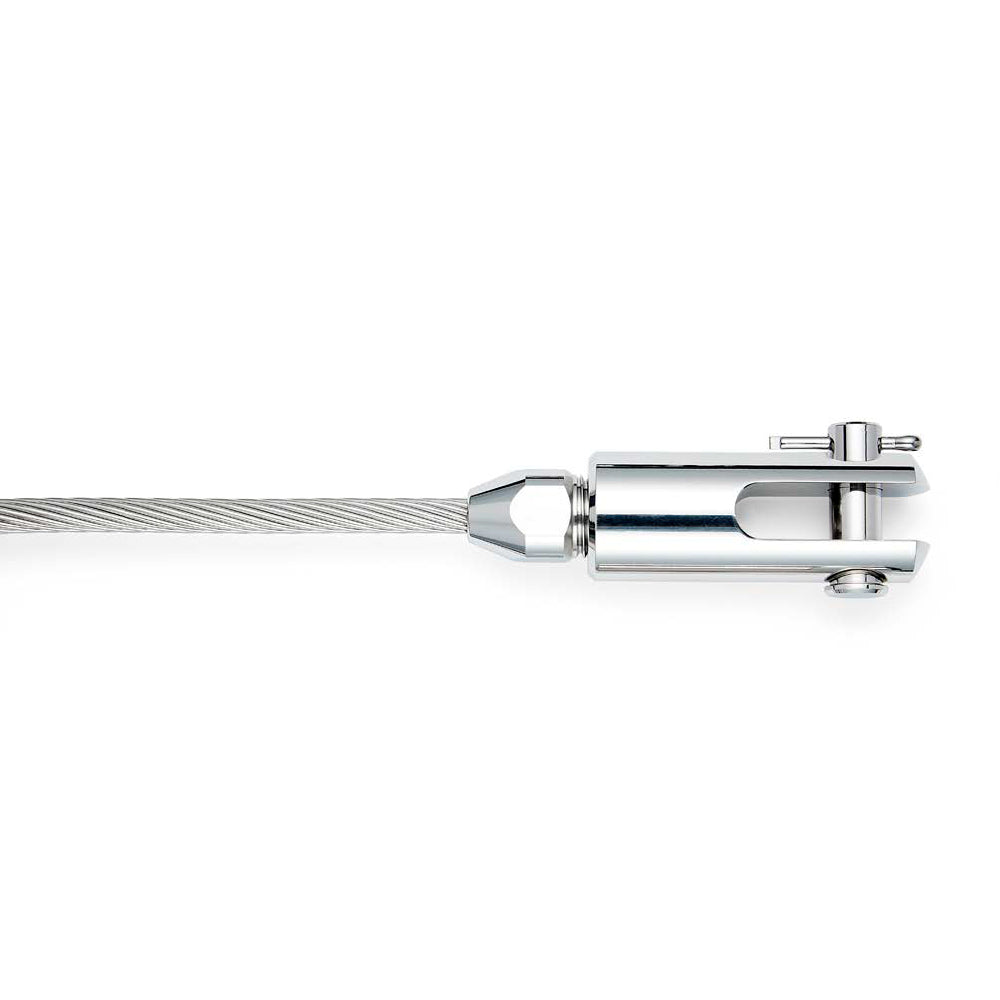

Sta-Lok Standing Rigging - Swageless Fork - For Wire: 12.0 mm & Pin: 3/4 in (19.05 mm)

Sta-lok swageless DIY self-fit terminals are a simple mechanical method of terminating wire ropes.

Our Part # STA-034-12 | Sta-Lok Part # 034-12

Features:

• Sta-Lok Self Fit Terminal, the reusable alternative to swage.
• Only basic hand tools required.
• No pre-measurement needed.
• Quick and easy to install.
• Guaranteed stronger than wire rope.
• For right hand and left hand lay wire rope.
• Packed for 1x19 wire as standard.
• Manufactured from high specification 316 stainless steel.
• Different wedges are available to terminate 7 strand & compacted strand wire ropes.

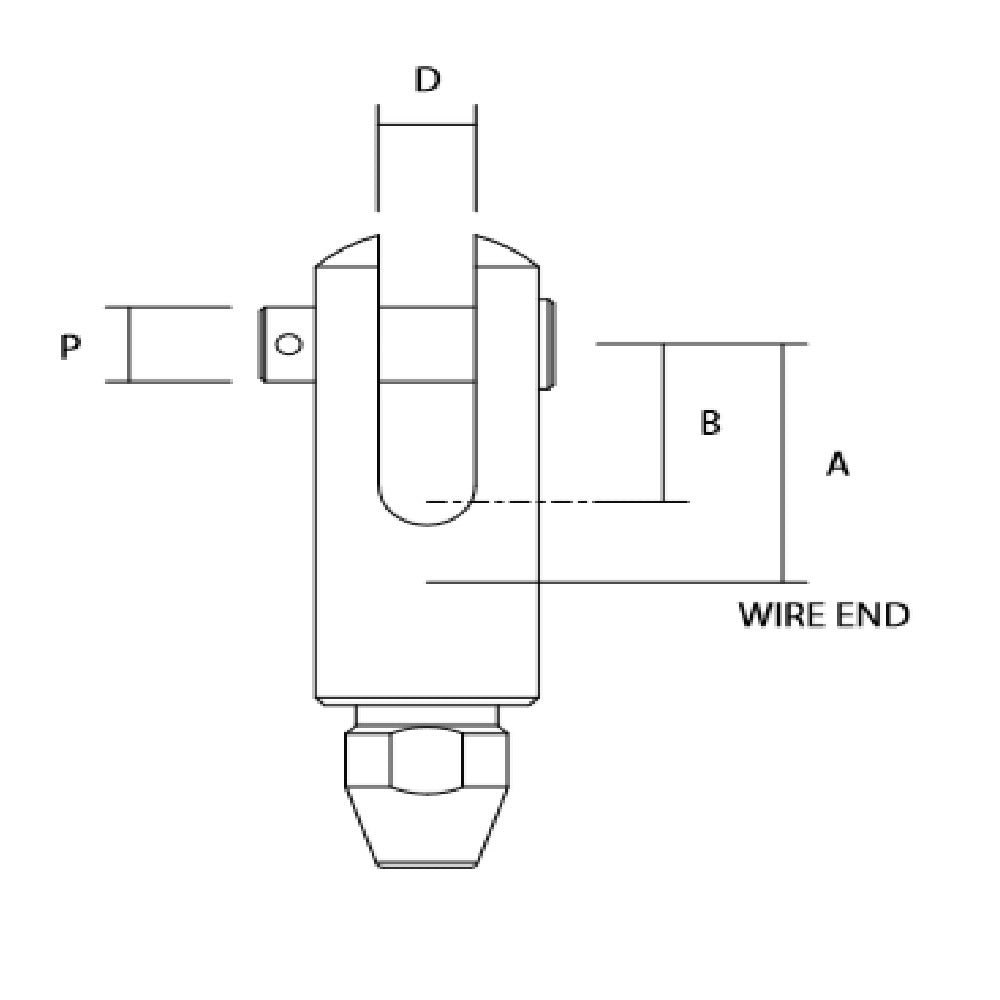

Wire: 12 mm
A: 46 mm / 1.812 in
B: 33.3 mm / 1.312 in
D: 19.1 mm / 0.750 in
P: 18.5 mm / 3/4 in
Weight: 1.18 kg / 2.601 lb
