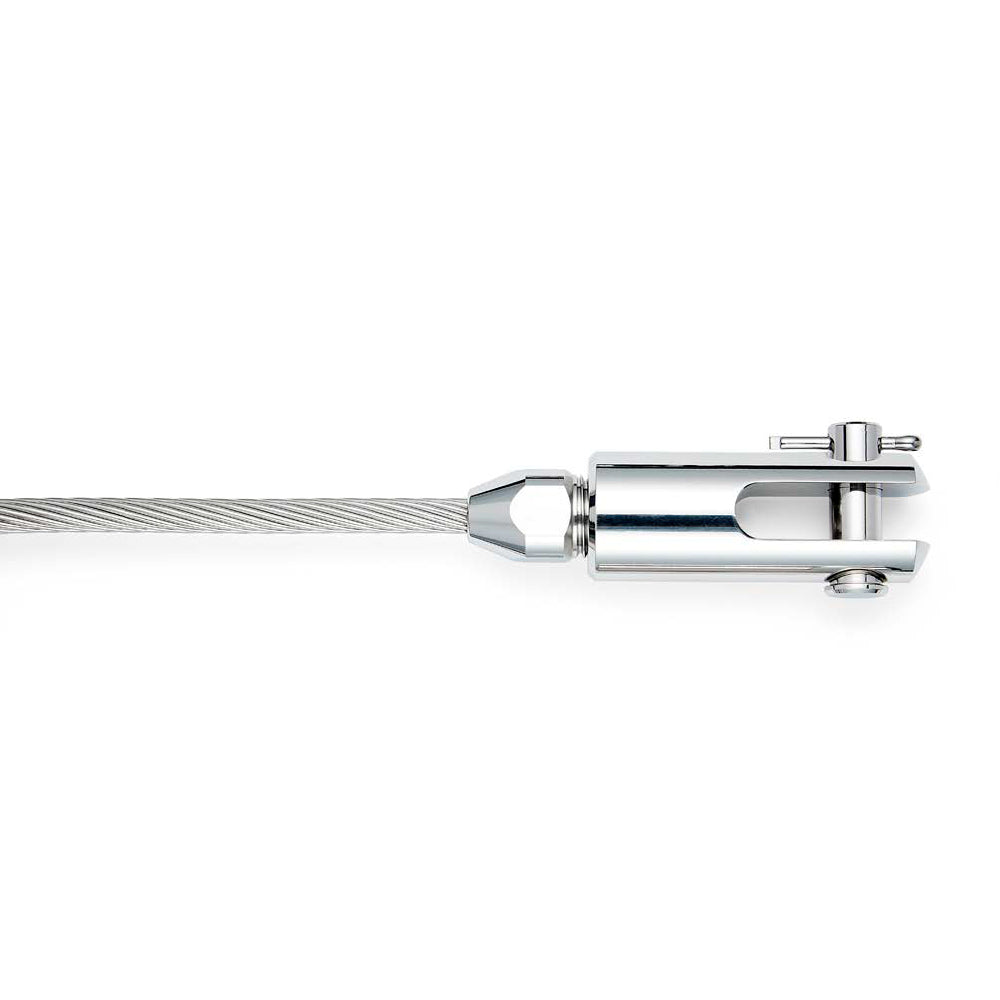

Sta-Lok Standing Rigging - Fork - Self-Fit - Wire: 9/32 in (7.14 mm) & Pin: 7/16 in (11.11 mm)

Sta-lok swageless DIY self-fit terminals are a simple mechanical method of terminating wire ropes.

Our Part # STA-034-07 | Sta-Lok Part # 034-07

Features:

• Sta-Lok Self Fit Terminal, the reusable alternative to swage.
• Only basic hand tools required.
• No pre-measurement needed.
• Quick and easy to install.
• Guaranteed stronger than wire rope.
• For right hand and left hand lay wire rope.
• Packed for 1x19 wire as standard.
• Manufactured from high specification 316 stainless steel.
• Different wedges are available to terminate 7 strand & compacted strand wire ropes.

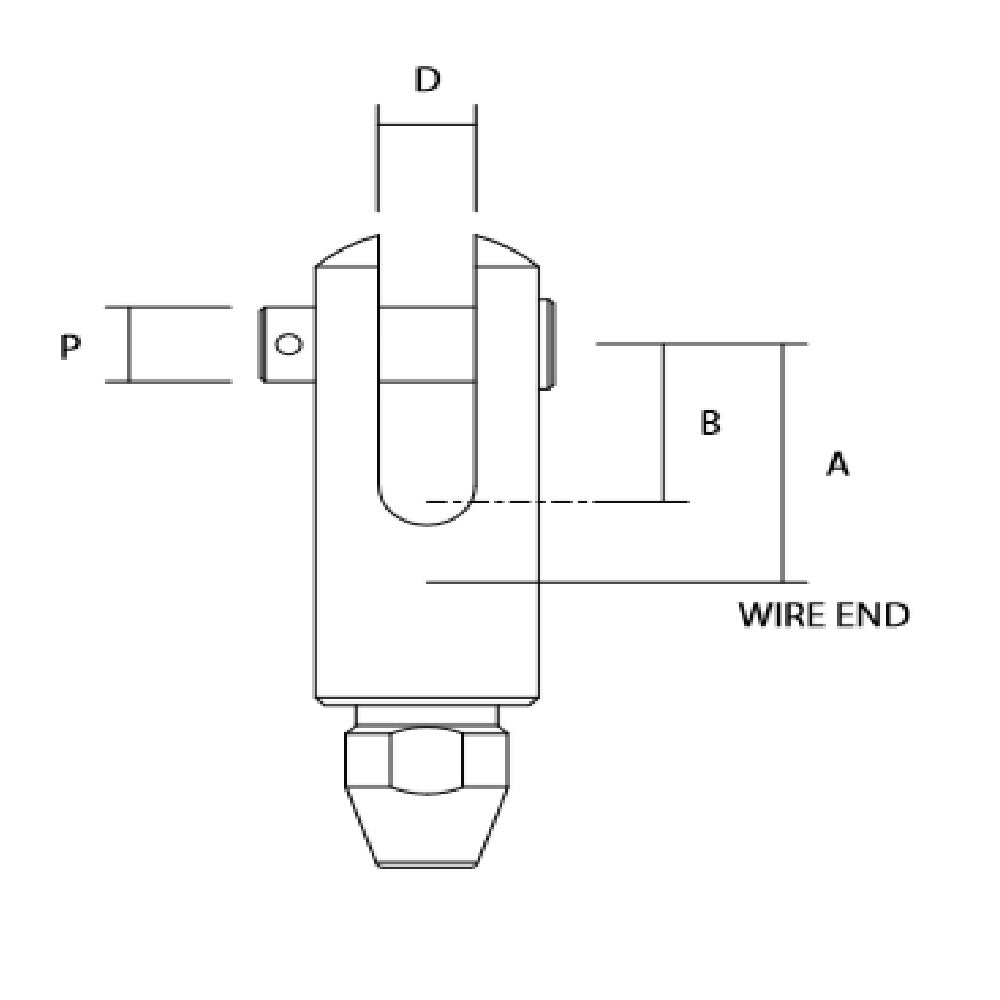

Wire: 7 mm / 9/32 in
A: 33.9 mm / 1.333 in
B: 25.1 mm / 0.99 in
D: 11.1 mm / 0.437 in
P: 10.9 mm / 7/16 in
Weight: 0.24 kg / 0.529 lb
