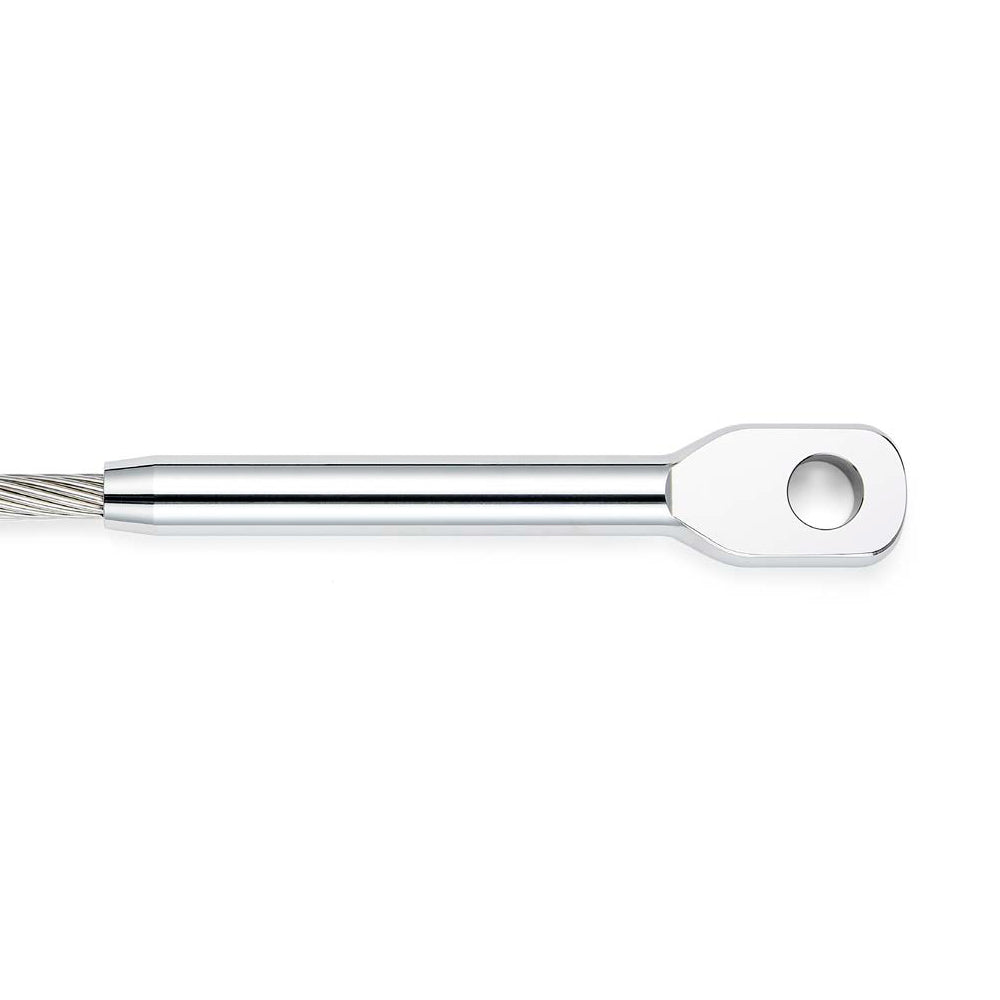

Sta-Lok Standing Rigging - Swage Eye (Narrow) - Wire: 7/32 in & Hole Dia: 7/16 in

Suitable for use with rotary & fixed die swaging machine

Our Part # STA-130N-55 | Sta-Lok Part # 130N-55

Feature:

• Manufactured from high specification 316 stainless steel.
• Use with 1x19, 7 Strand and compacted stand wire rope (IWRC).
• Minimum hole depth 10x wire diameter.
• Metric and Inch wire ropes.

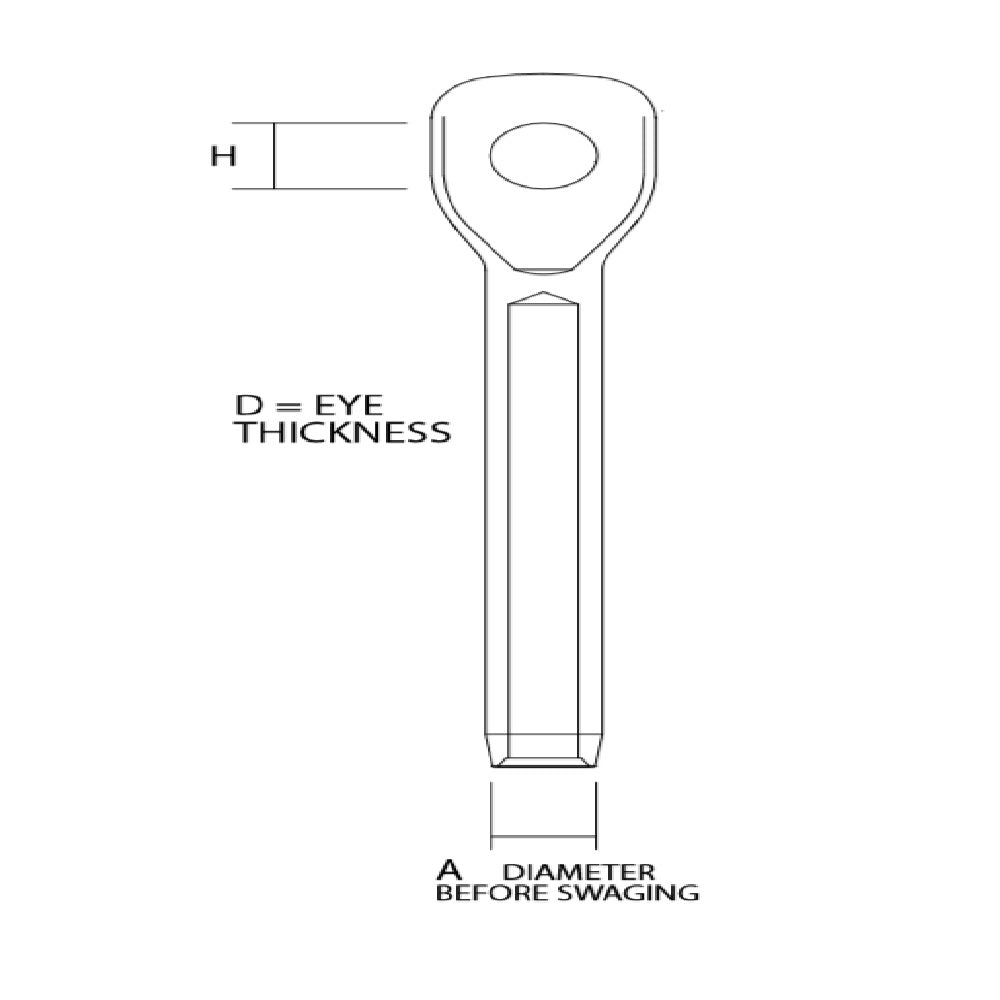

Wire: 7/32 in
A: 10.7 mm / 0.422 in
D: 8 mm / 0.315 in
H: 11.5 mm / 7/16 in
Weight: 0.1 kg / 0.22 lb
