Sta-Lok  |  SKU: STA-039N-04  |  Manuf. Code: 039N-04

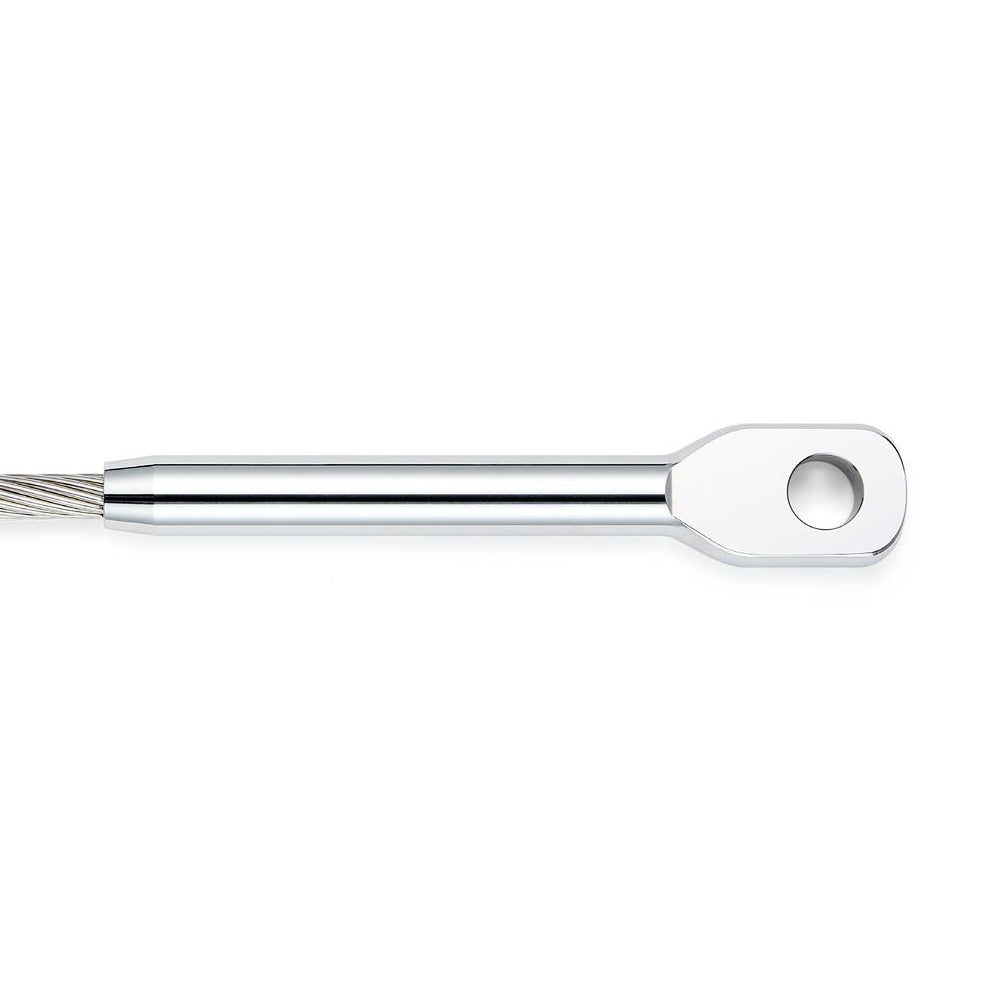

Sta-Lok Standing Rigging - Swage Eye (Narrow) - Wire: 5/32 in & Hole Dia: 5/16 in

$11.00 USD $13.75

Description

Suitable for use with rotary & fixed die swaging machine.

Our Part # STA-039N-04 | Sta-Lok Part # 039N-04

Features

Features:

  • Manufactured from high specification 316 stainless steel.
  • Use with 1×19, 7 Strand and compacted stand wire rope (IWRC).
  • Metric and Inch wire ropes.
  • Minimum hole depth 10x wire diameter.

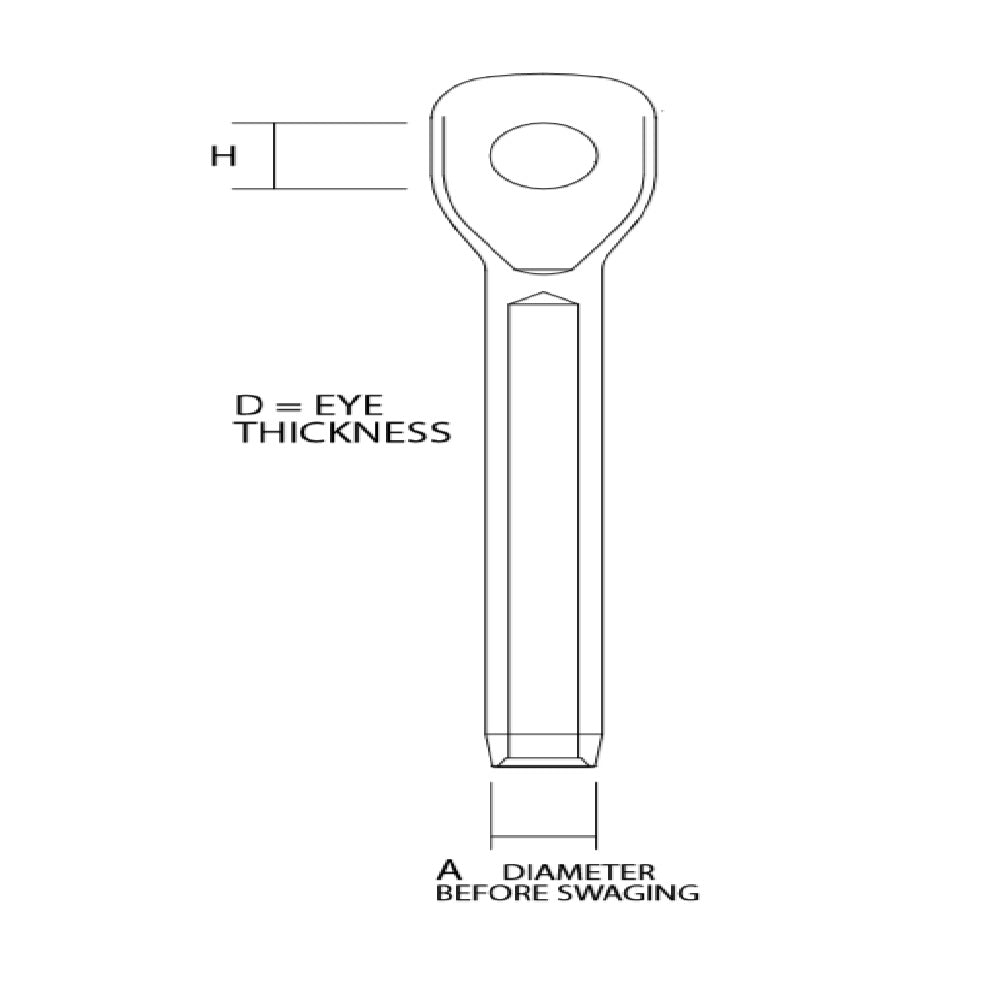

Technical Information

Wire: 4 mm / 5/32 in
A: 7.4 mm / 0.292 in
D: 5 mm / 0.197 in
H: 8.5 mm / 5/16 in
Weight: 0.022 kg / 0.049 lb
