Sta-Lok Standing Rigging - Swage Eye (Machined) - Wire: 1 1/32 in & Hole Dia: 1 3/8 in

Suitable for use with rotary &fixed die swaging machine.

Our Part # STA-039-26 | Mfr. Part # 039-26

• Manufactured from high specification 316 stainless steel.
• Use with 1×19, 7 Strand and compacted stand wire rope (IWRC).
• Metric and Inch wire ropes.
• Minimum hole depth 10x wire diameter.

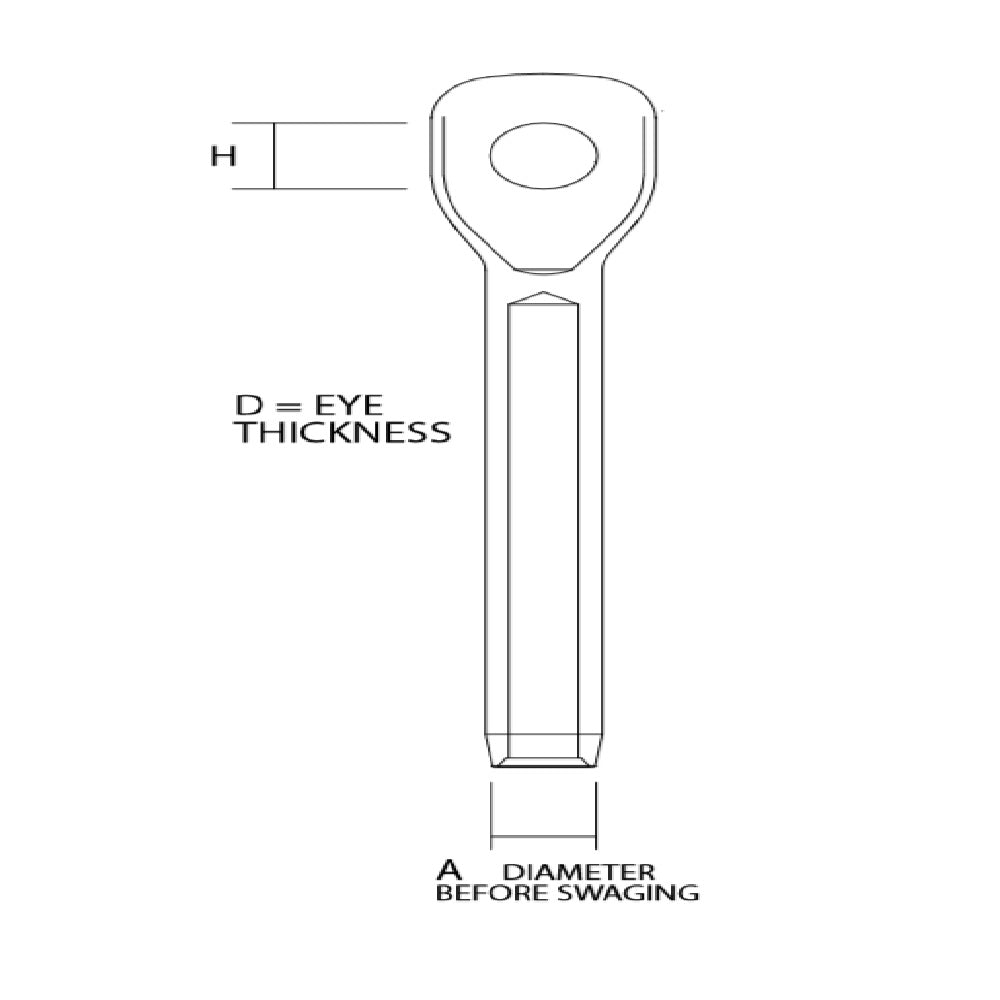

Wire: 26 mm / 1 in
A: 45.8 mm / 1.807 in
D: 34 mm / 1.339 in
H: 35 mm / 1 3/8 in
Weight: 3.95 kg / 8.708 lb
