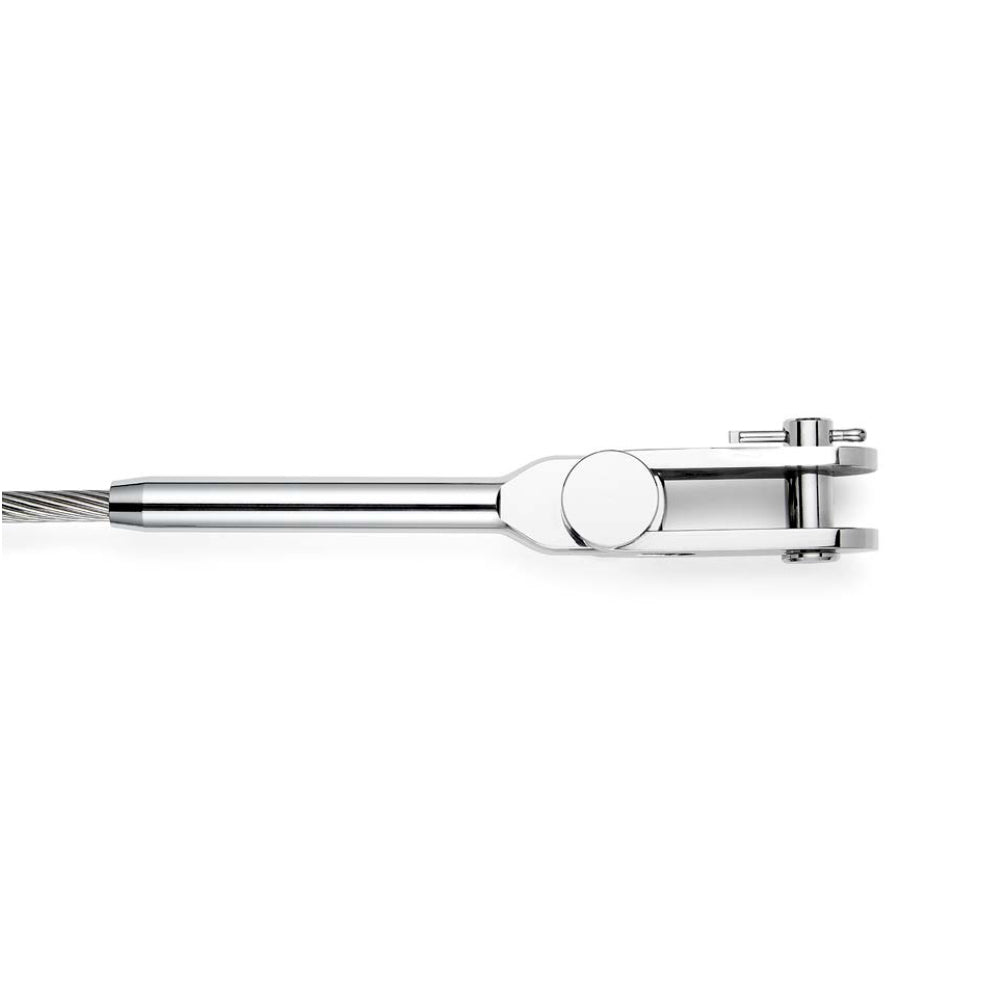

Sta-Lok Standing Rigging - Swage Eye Toggle - Wire: 1 in & Pin: 1 3/8 in (34.93 mm)

Suitable for use with rotary &fixed die swaging machine.

Our Part # STA-038-ET-26 | Mfr. Part # 038 ET-26

• Manufactured from high specification 316 stainless steel.
• Use with 1×19, 7 Strand and compacted stand wire rope (IWRC).
• Metric and Inch wire ropes.
• Minimum hole depth 10x wire diameter.
• Unique toggle action for articulation in two planes.

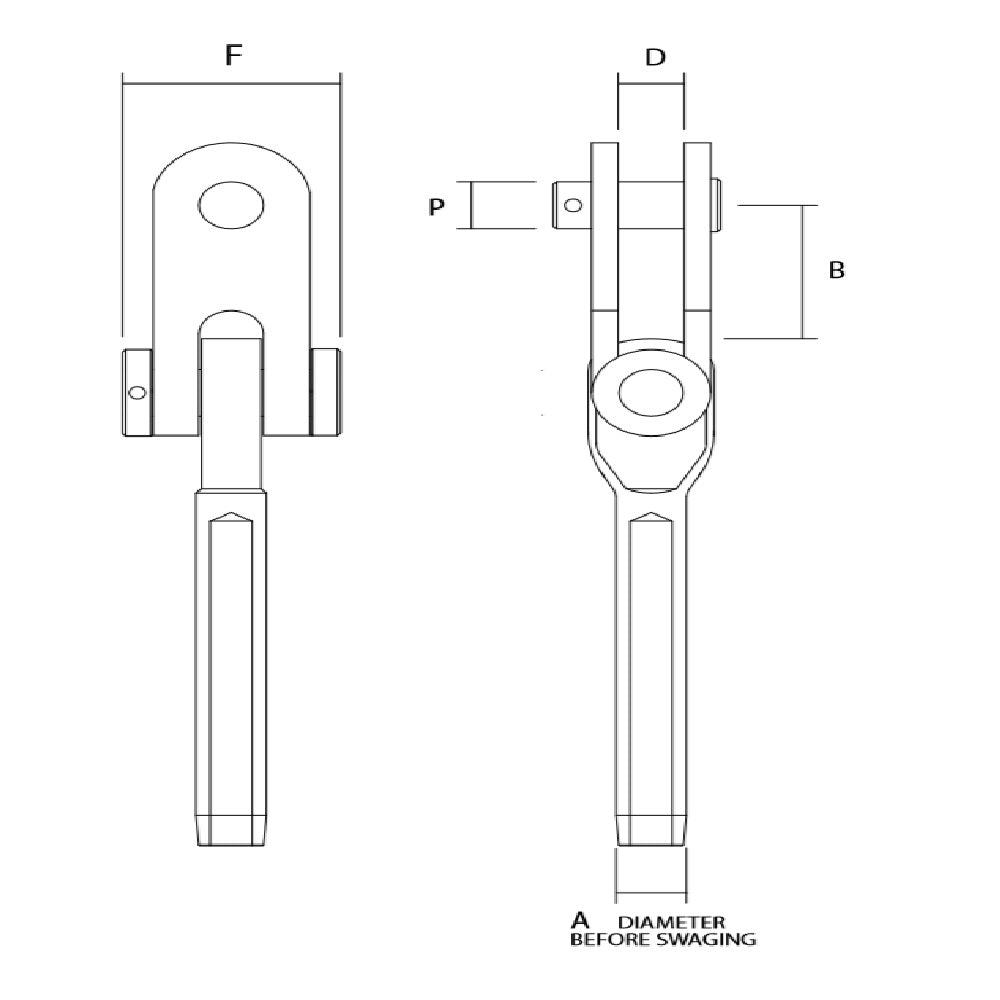

Wire: 26 mm / 1 in
A: 45.8 mm / 1.807 in
B: 98 mm / 3.858 in
D: 38 mm / 1.496 in
F: 110 mm / 4.331 in
P: 34.6 mm / 1 3/8 in
Weight: 9.5 kg / 20.944 lb
