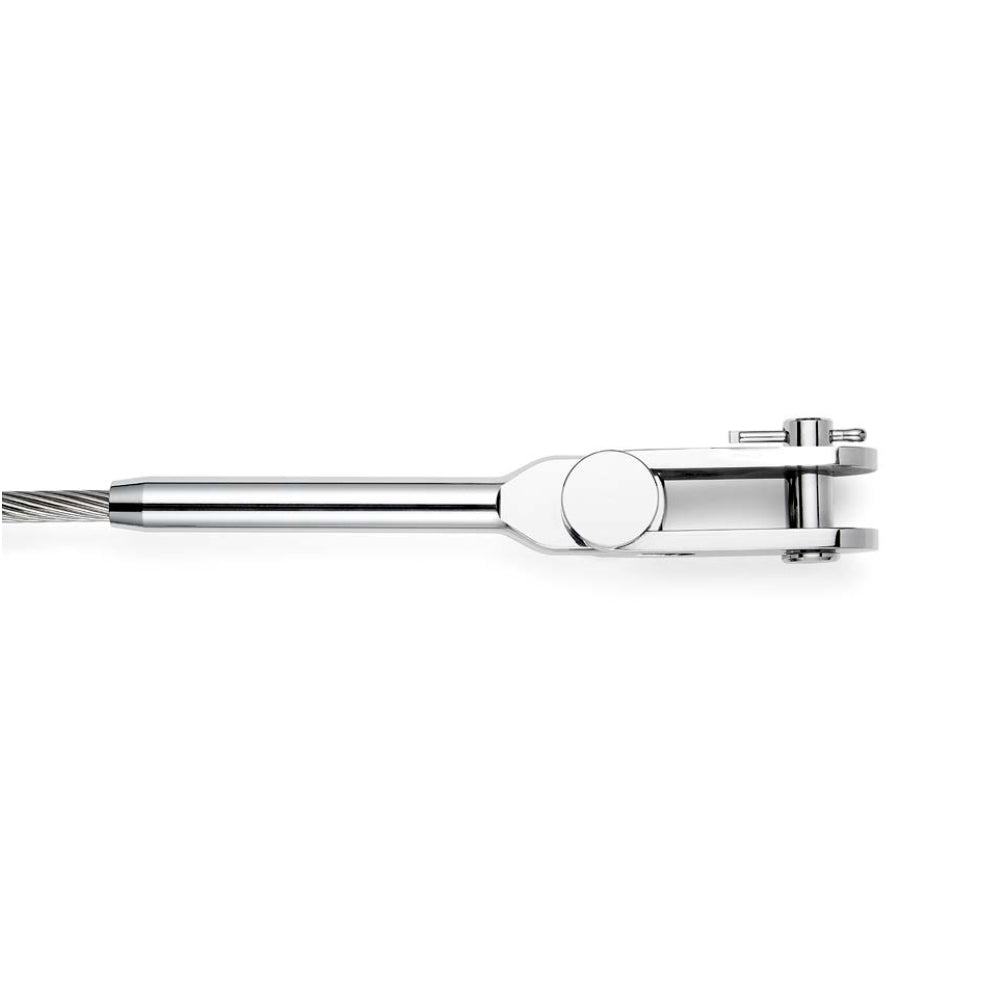

Description

Suitable for use with rotary &fixed die swaging machine.

Our Part # STA-038-ET-19 | Mfr. Part # 038 ET-19

Features

• Manufactured from high specification 316 stainless steel.
• Use with 1×19, 7 Strand and compacted stand wire rope (IWRC).
• Metric and Inch wire ropes.
• Minimum hole depth 10x wire diameter.
• Unique toggle action for articulation in two planes.

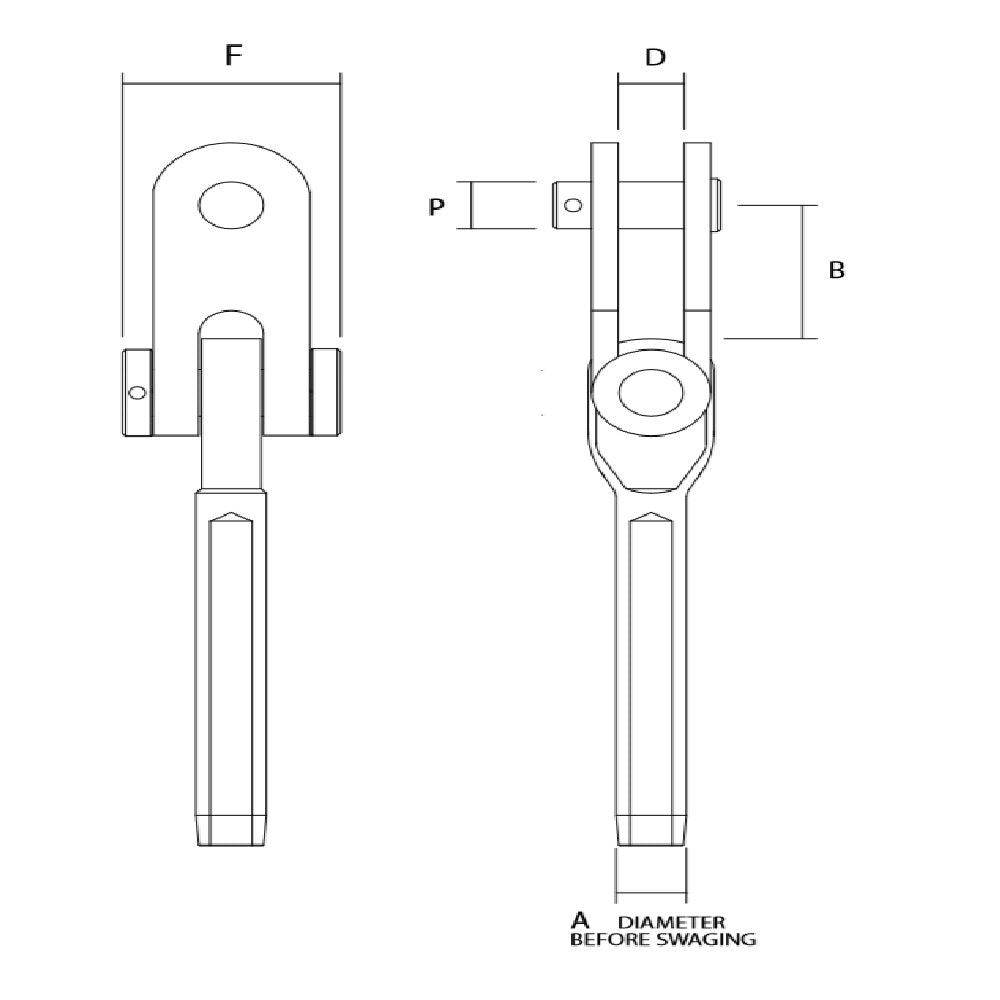

Technical Information

Wire: 19 mm / 3/4 in
A: 34.4 mm / 1.354 in
B: 70 mm / 2.756 in
D: 31.5 mm / 1.240 in
F: 89 mm / 3.504 in
P: 28.2 mm / 1 1/8 in
Weight: 4.7 kg / 10.362 lb
