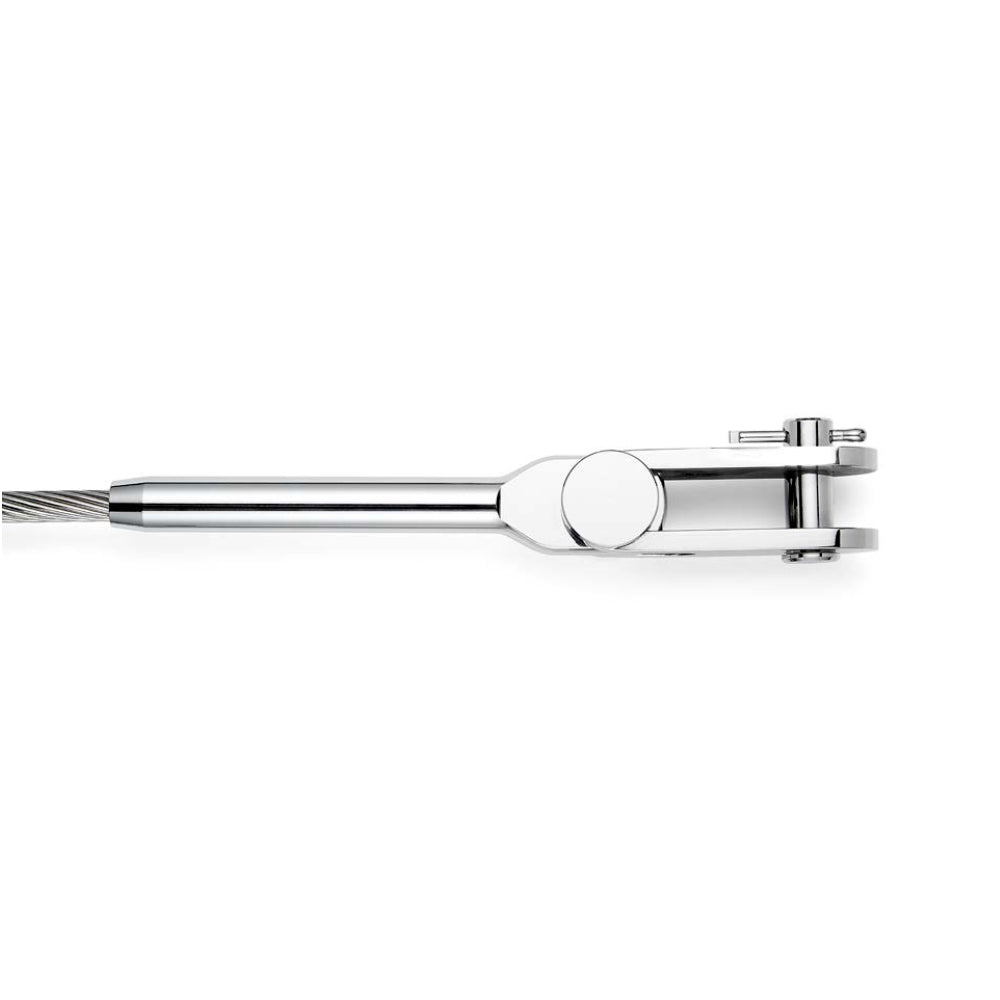

Sta-Lok Standing Rigging - Swage Eye Toggle - Wire: 5/8 in & Pin: 1 in (25.4 mm)

Suitable for use with rotary &fixed die swaging machine.

Our Part # STA-038-ET-16 | Mfr. Part # 038 ET-16

• Manufactured from high specification 316 stainless steel.
• Use with 1×19, 7 Strand and compacted stand wire rope (IWRC).
• Metric and Inch wire ropes.
• Minimum hole depth 10x wire diameter.
• Unique toggle action for articulation in two planes.

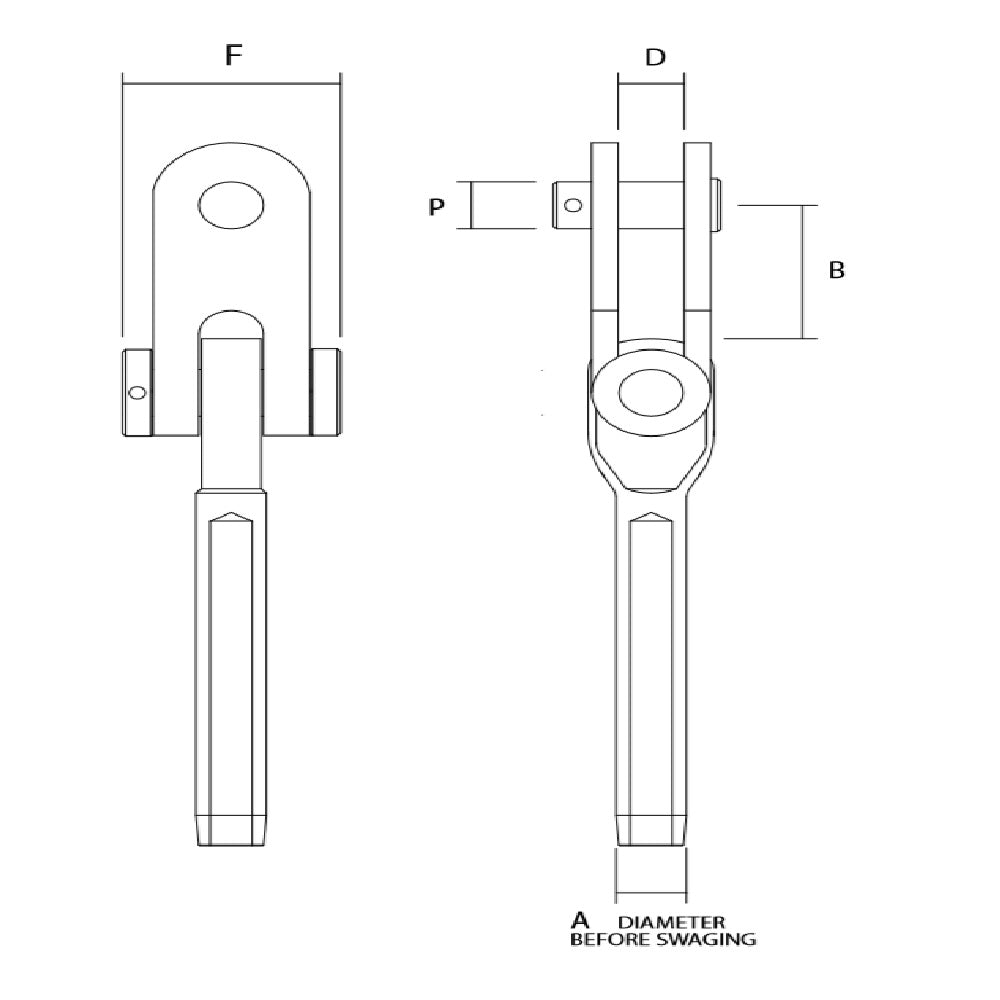

Wire: 16 mm / 5/8 in
A: 28 mm / 1.104 in
B: 67.5 mm / 2.657 in
D: 28 mm / 1.102 in
F: 82 mm / 3.228 in
P: 25 mm / 1 in
Weight: 3.080 kg / 6.79 lb
