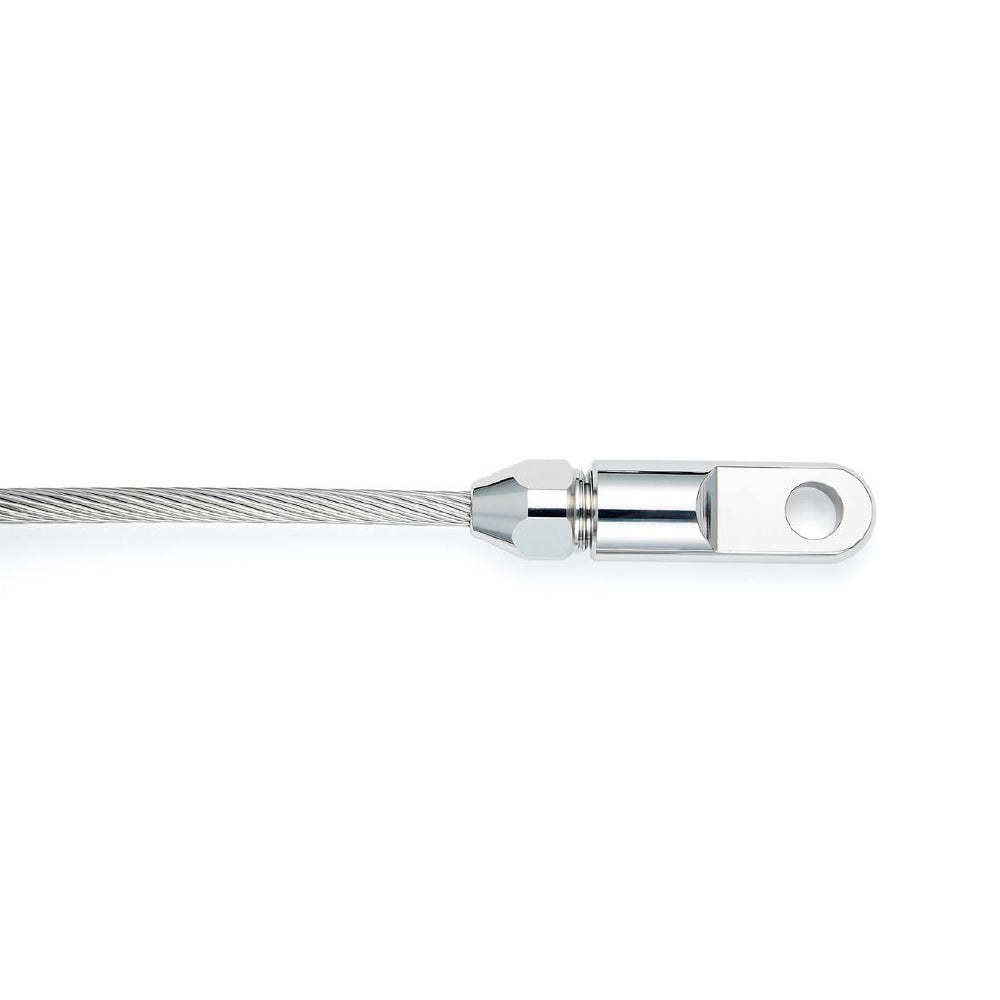

Sta-Lok Standing Rigging - Swageless Eye - For Wire: 6.0 mm & Pin: 1/2 in (12.7 mm)

The Sta-Lok Swageless Eye - 6 mm Wire #033-06 is perfect for those who want a reliable and straightforward method for terminating wire ropes. This swageless design makes it easy for anyone to achieve professional results without specialized tools. It's ideal for sailing enthusiasts or anyone handling wire rigging.

Features & Benefits

• Easy DIY installation
• Swageless design for convenience
• Durable and reliable construction
• Perfect for marine and rigging applications

Made from high-quality stainless steel, ensuring strength and corrosion resistance, this terminal fits 6 mm wire ropes seamlessly. It's designed specifically for marine use, offering long-lasting performance even in harsh sea conditions. The terminal's swageless feature allows for quick and easy setup, making it compatible with most sailing gear requirements.

Features:

• Swageless self-fit mechanical fitting.
• Hand tools only required.
• Proven, trusted mechanical design.
• Onsite or Onboard assembly.
• For 1x19 wire as standard.
• Separate wedges available for 7x19 and Compact Strand.
• Check the chart for dimensions.
• Reusable N.B. with a new wedge.
• Supplied with wedges as standard.
• Efficient under both constant and variable shock loading.
• Stronger than the matching diameter wire rope.
• Totally reliable.
• Proven track record.
• Manufactured from 316 stainless steel grade 1.4401.
• Can be fitted on site or onboard using very simple hand tools.

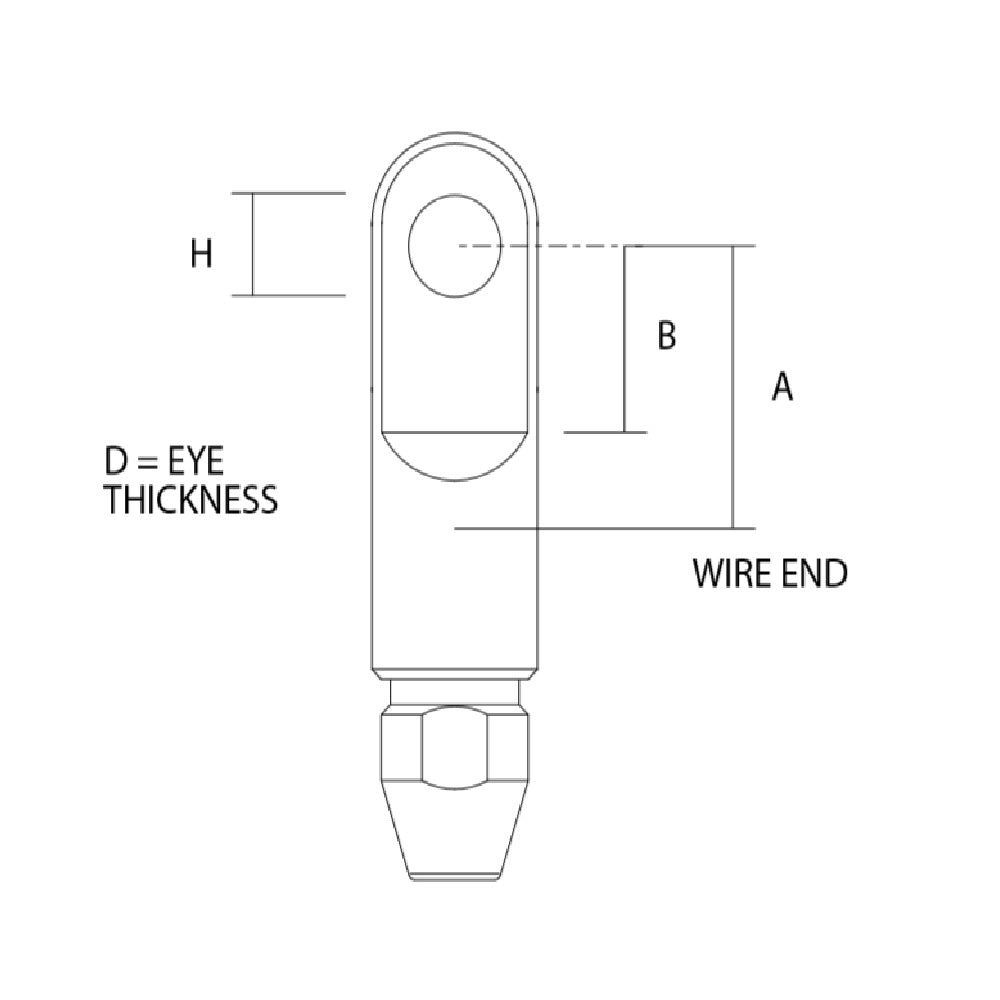

Wire: 6 mm
A: 31 mm
B: 22.2 mm
C: 12.7 mm
D: 9.5 mm
H: 13 mm
