Description

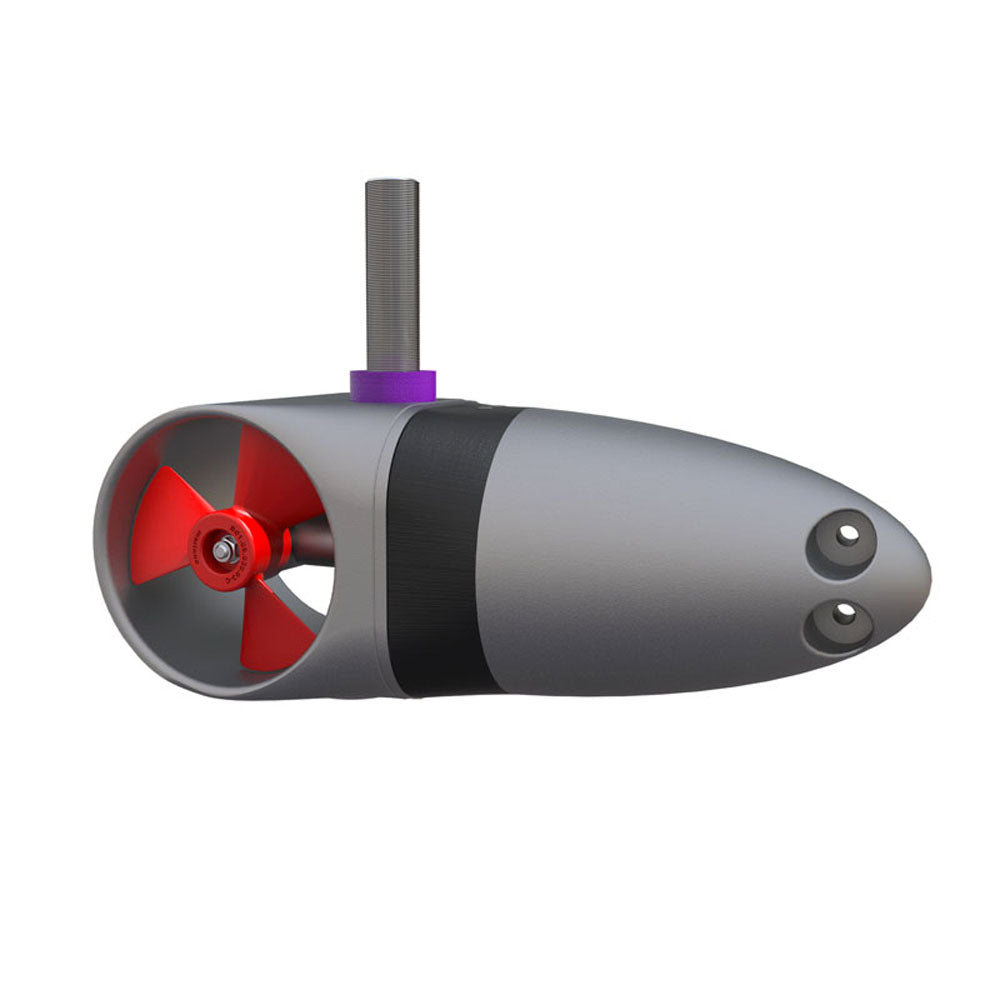

The EX series Bow Thruster can be installed in most boats between 20 and 45 feet. These pod thrusters are an excellent choice where a tunnel thruster cannot fit, or as an extremely compact stern thruster. They are also especially good for retrofitting. The flexible mounting at the extreme bow of the boat hull allows a deeper position underwater which creates an optimal leverage compared to conventional thrusters.

Our Part # SIDSMEX70C | Side-Power (Sleipner) Part # SMEX70C

Features

• Optimally streamlined design.
• Hydrodynamic shape, very short flow-channel and ideal placement reduce water resistance.
• Easy installation, only requires the drilling three small holes to install.
• Lower install cost due to simplified install.
• Reduced noise based on optimal tunnel shape and submerged motor.
• Longer duration based on water cooling of motor and housing.
• Space saving, less interior equipment needed.

Technical Information

Thrust at 21V: 67 kg (147.4 lb)_x000D_
Thrust at 24V: 70 kg (154 lb)_x000D_
Typical Boat Size: 12 m to 16 m (35 ft to 53 ft)_x000D_
Tunnel (I.D): 165 mm_x000D_
Propulsion System: Single Drive_x000D_
Power at 21V: 3.0 kW_x000D_
Voltage: 24V_x000D_
Min Depth to Top of Tunnel: 150 mm (5.9 in)_x000D_
Min Depth to Center of Tunnel: 240 mm (9.5 in)_x000D_
