Description

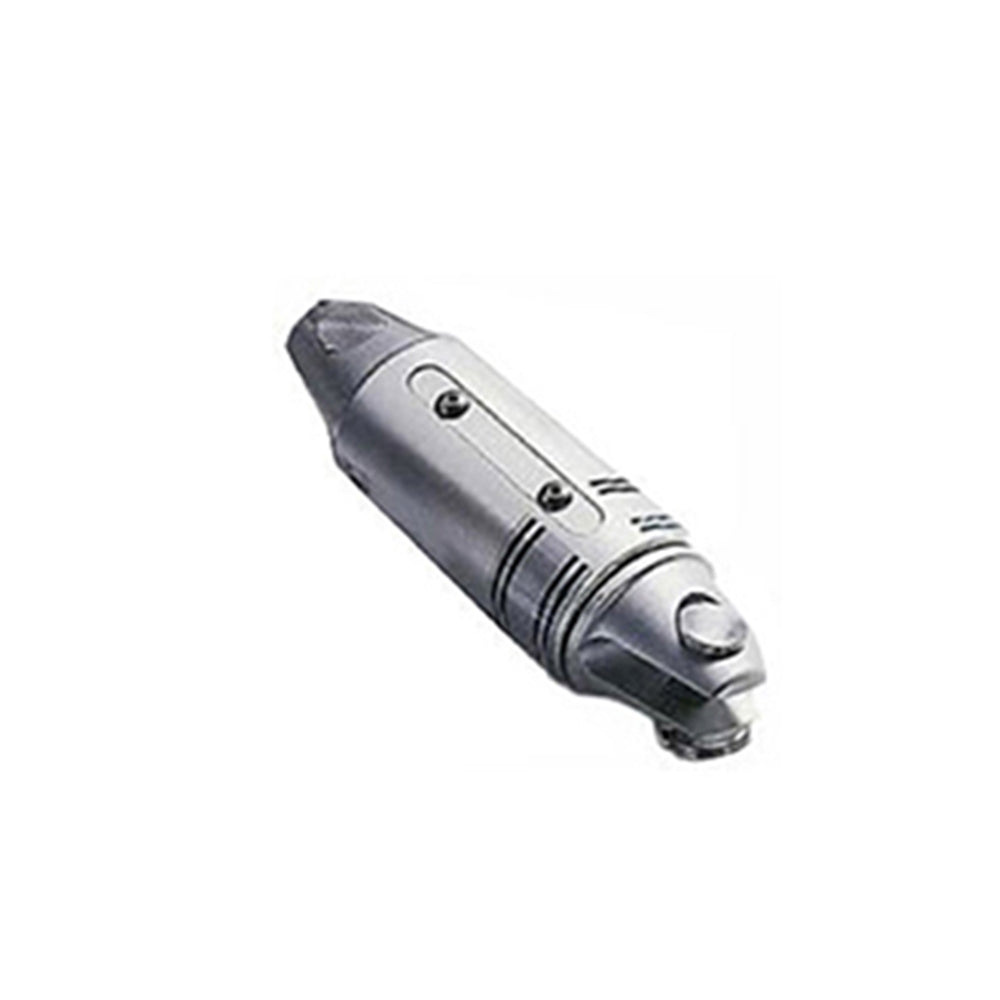

These lightweight swivels utilize clear anodized, marine grade aluminum and contain hi-load Amoco Torlon™ bearings to ensure smooth and reliable performance. Precision computer machined races maximize bearing contact area for ultimate strength and durability under load providing you with safe, easy furling. Use for:
Boats size Jib 14' to 19' (4.3 m to 5.8 m)

Part Number: 350-01

Our Part # SCH35001 | Schaefer Part # 350-01

Technical Information

	Imperial	Metric
Model	Upper Swivel
Max Wire	1/8 in	3 mm
Pin Dia.	1/4 in	6 mm
Max LP	10' 6 in	3.2 m
Max Luff	30 ft	9.1 m
Length	2 3/8 in	60 mm
Width	1 in	25 mm
Overall Thickness	5/16 in	8 mm
FreeFurl Load	550 lb	250 kg
Safe Working Load	800 lb	364 kg
Weight	24 oz	710 g
