Description

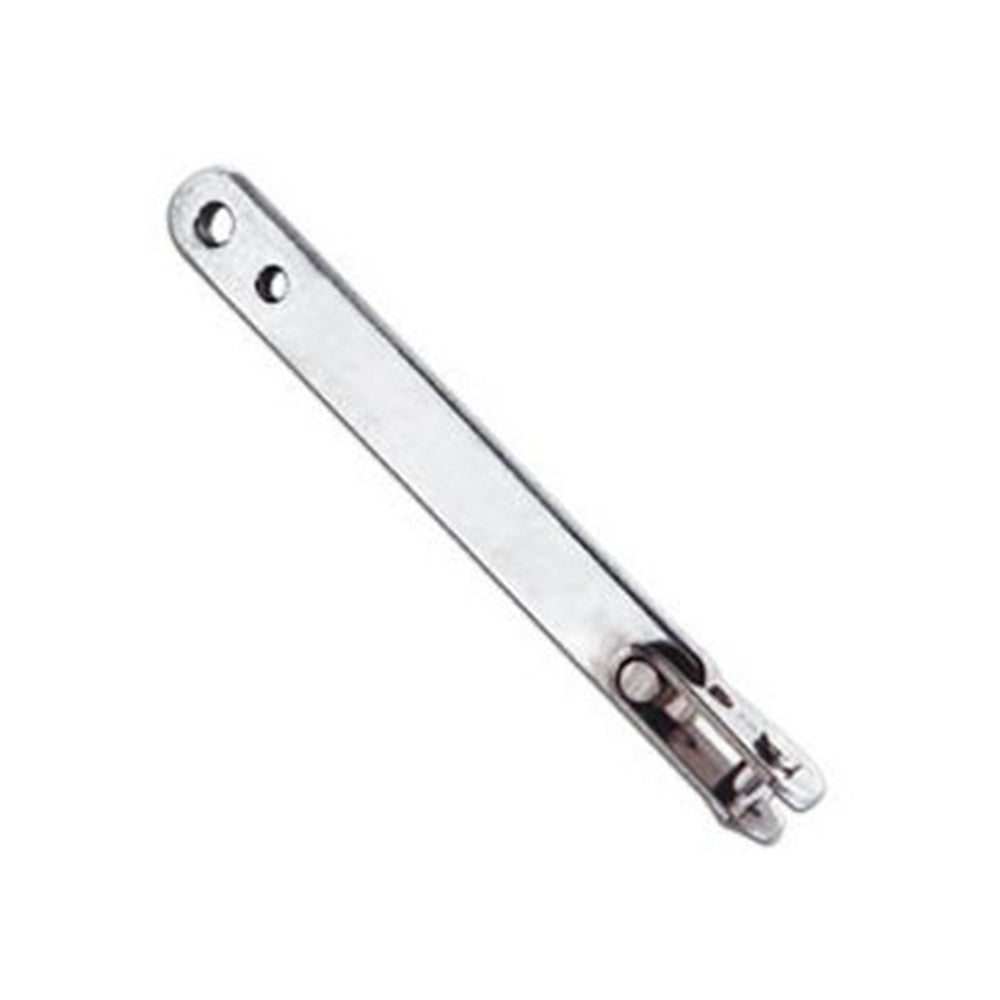

Replaces Schaefer standard, integral toggle link to raise bottom drum assembly off deck.

Our Part # SCH110022 | Mfr. Part # 1100-22

Technical Information

Pin Dia.: 13 mm (1/2 in)
Drum Height: 235 mm (9 1/4 in)
Overall Pin/Pin: 257 mm (10 1/8 in)
Additional from Std: 152 mm (6 in)
Width: 38 mm (1 1/2 in)
Overall Thickness: 6 mm (1/4 in)
Weight: 618 g (1 lb 5.8 oz)
