Samlex America  |  SKU: SMX-MSK-10A  |  Manuf. Code: MSK-10A

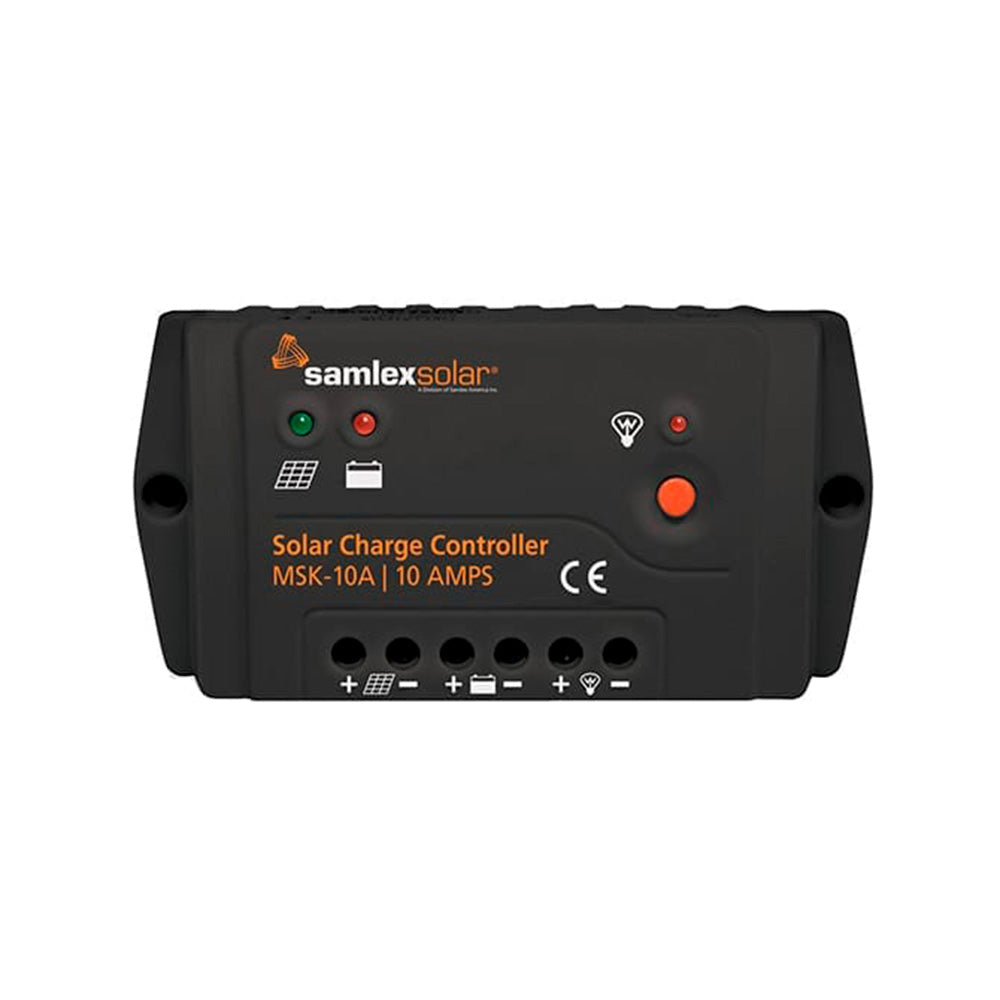

Samlex Controllers - Solar Charge Contoller - 10 Amp - 12/24V

$53.99 USD $67.49

Description

The MSK-10A is a 3 stage intelligent Series Type PWM Charge Controller. It is based on an advanced design using a microcontroller for digital accuracy and fully automatic operation. It can be used for 12V or 24V battery systems.


Our Part # SMX-MSK-10A | Samlex America Part # MSK-10A

Features


  • 3 stage intelligent Series Type PWM charging.
  • Automatic battery voltage detection: 12V / 24V.
  • 100% input and output within -35?C to +50?C.
  • Electronic protections: overheating, overcharging, over discharge, overload and show circuit.
  • Reverse protection any combination of solar module and battery.
  • Optional MSK-TS External Temperature Sensor.

Technical Information


DescriptionImperialMetric
Input12 V/24 V
Amps10 A
Weight0.29 lb.0.13 kg.
Dimensions5.46 x 2.73 x 1.46 in.138.60 x 69.30 x 37.00 mm.
