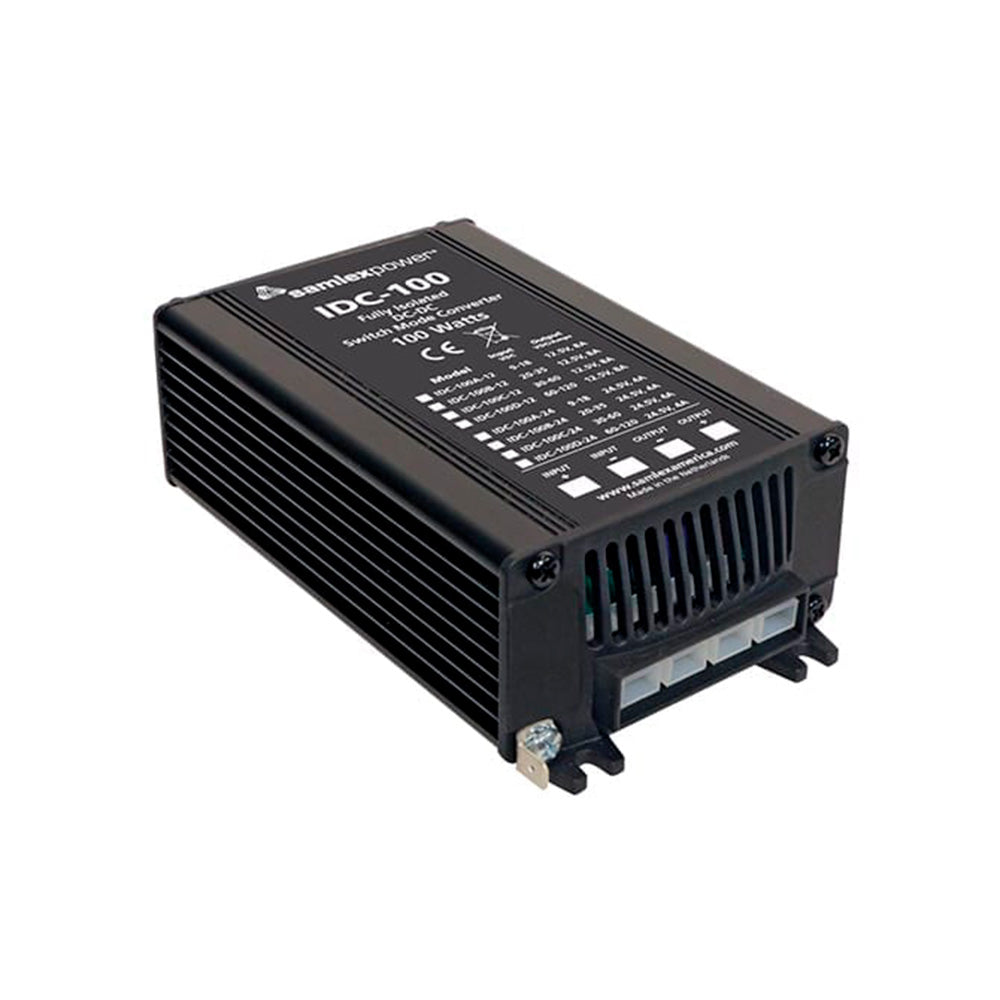

Samlex Converters & Reducers - Fully Isolated DC-DC Converter - 9-18VDC Input - 24VDC Ouput - 100W (4 Amp)

{"id":9641313861938,"title":"Samlex Converters \u0026 Reducers - Fully Isolated DC-DC Converter - 9-18VDC Input - 24VDC Ouput - 100W (4 Amp)","handle":"smx-idc-100a-24","description":"\u003cp\u003eIDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100A-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 4 Amps (at 18 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with ¼” push-on flat blade “quick disconnect” connectors. IDC-100A-24 isolated DC-DC converter is EMI\/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95\/54\/CE.\u003c\/p\u003e\u003cp\u003e\u003c\/p\u003e\u003cbr\u003e\u003cp\u003e Our Part # SMX-IDC-100A-24 | Samlex America Part # IDC-100A-24\u003c\/p\u003e","published_at":"2024-09-25T16:06:55-05:00","created_at":"2024-09-25T16:06:55-05:00","vendor":"Samlex America","type":"Electrical","tags":["UPO7A0SLV505"],"price":16360,"price_min":16360,"price_max":16360,"available":true,"price_varies":false,"compare_at_price":20450,"compare_at_price_min":20450,"compare_at_price_max":20450,"compare_at_price_varies":false,"variants":[{"id":49348616356146,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"SMX-IDC-100A-24","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Samlex Converters \u0026 Reducers - Fully Isolated DC-DC Converter - 9-18VDC Input - 24VDC Ouput - 100W (4 Amp)","public_title":null,"options":["Default Title"],"price":16360,"weight":453,"compare_at_price":20450,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/www.mauripro.com\/cdn\/shop\/files\/SMX-IDC-100A-24.jpg?v=1728049360"],"featured_image":"\/\/www.mauripro.com\/cdn\/shop\/files\/SMX-IDC-100A-24.jpg?v=1728049360","options":["Title"],"media":[{"alt":"Samlex 100W Fully Isolated DC-DC Converter - 4A - 9-18V Input - 24V Output","id":39680744456498,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.mauripro.com\/cdn\/shop\/files\/SMX-IDC-100A-24.jpg?v=1728049360"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/www.mauripro.com\/cdn\/shop\/files\/SMX-IDC-100A-24.jpg?v=1728049360","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eIDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100A-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 4 Amps (at 18 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with ¼” push-on flat blade “quick disconnect” connectors. IDC-100A-24 isolated DC-DC converter is EMI\/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95\/54\/CE.\u003c\/p\u003e\u003cp\u003e\u003c\/p\u003e\u003cbr\u003e\u003cp\u003e Our Part # SMX-IDC-100A-24 | Samlex America Part # IDC-100A-24\u003c\/p\u003e"}
