Vakaros Atlas Edge (High-Performance GPS Sailing Instrument)

The Vakaros Atlas Edge (High-Performance GPS Sailing Instrument) #AtlasEdge is your gateway to enhanced sailing performance, both on and off the water. It combines next-generation insights with a straightforward interface, ensuring you gain valuable metrics like airtime and jump height. Built for the future, this device supports innovative race management while staying class-compliant and cost-effective.

Features & Benefits

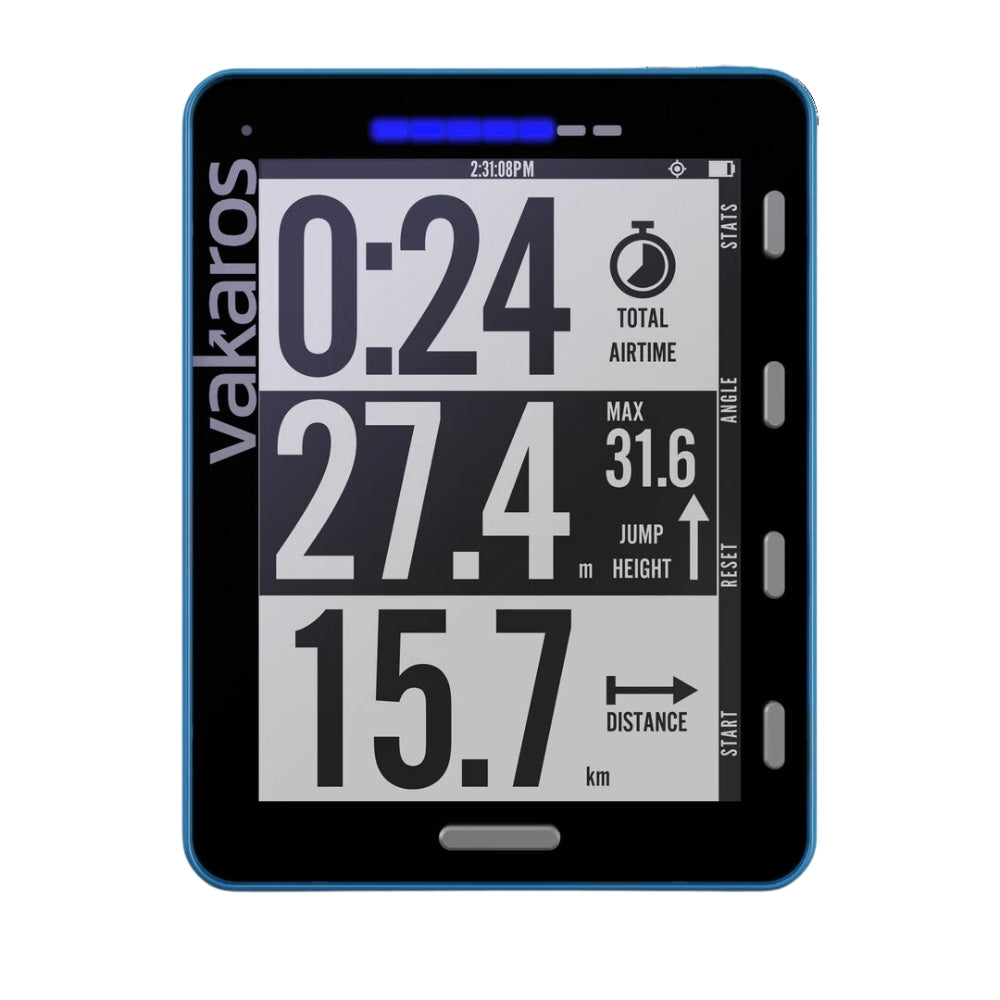

• Airtime, speed runs, and jump height metrics
• RaceSense support for modern race management
• Simple interface for easy navigation
• Class compliance for various sailing types
• Water resistance beyond IP68 standards

Designed with advanced technology, the Atlas Edge is compatible with various sailing classes, from Melges 15 to the Flying Dutchman. It allows sailors to configure the device according to class rules, unlocking powerful insights for training. This instrument is more than just waterproof, exceeding IP68 standards for durability in challenging conditions.

Sensors:

25 Hz L1+L5 dual-band, multi-constellation GNSS receiver
3-axis magnetometer
3-axis gyroscope
3-axis accelerometer
Ambient light sensor
Temperature sensor

Core Measurements:

Position
Velocity
Heading
Heel
Pitch
Data Logging at 10 Hz.

Display:

High contrast, sunlight-readable
160 degree viewing cone
4.4" transflective LCD screen
320x240 pixel resolution, 91 ppi
Digits up to 90 mm. (3.54 in.) height (landscape), 40 mm. (1.73 in.) height (2 metrics, portrait mode)
Optically bonded 1.1 mm. (0.04 in.) Gorilla Glass
Multi-layer anti-reflective (AR) coating
Water-shedding hydrophobic coating
RGB LED array

Battery:

Run time: 100+ hours
Integrated 4600 mAh rechargeable lithium-ion battery
Qi-compatible wireless charging

Data Logging:

256 MB integrated storage
100+ hours, depending on logging rate
Log at 2, 5 or 10 Hz.

Funtions:

Countdown timer
Shift tracking
Stripchat view
VMG

Click here to learn more about Vakaros Atlas 2 vs Vakaros Edge.
