10% off

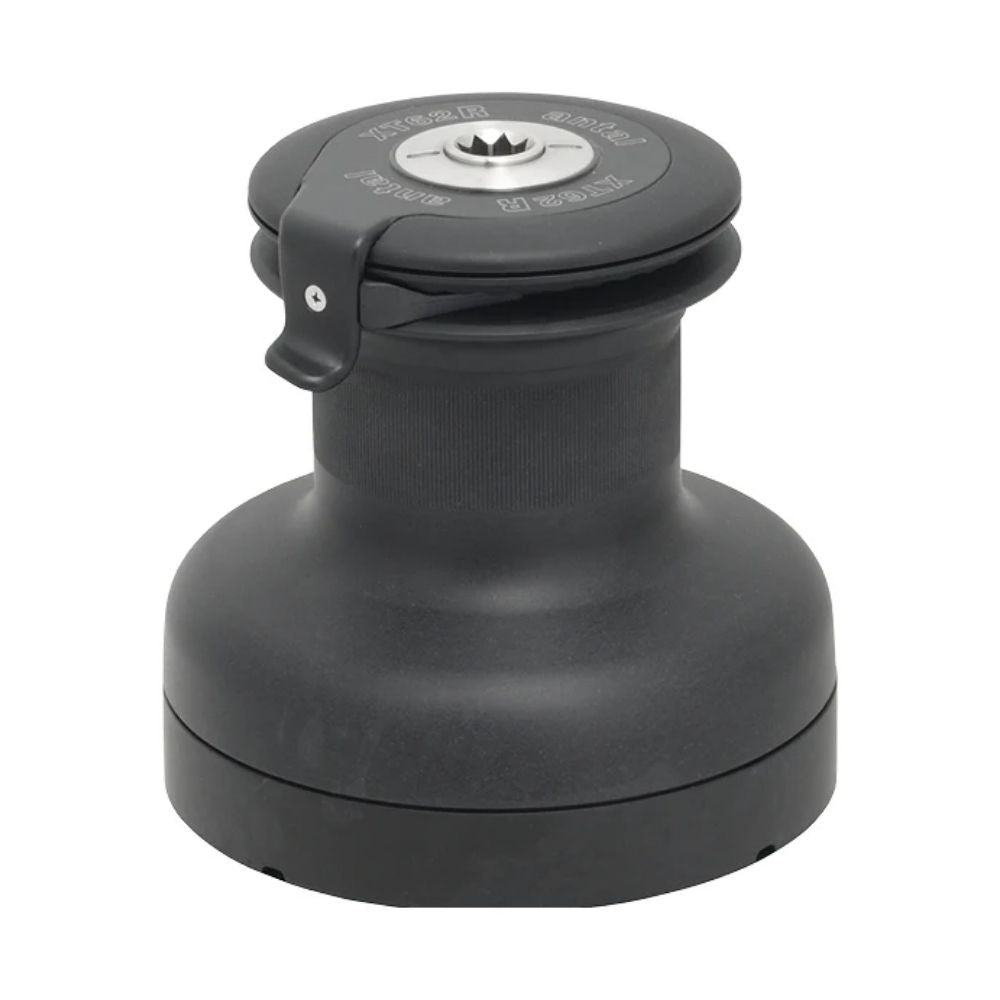

Antal Self Tailing Winch Race XT Size 62 - Aluminum Black / Two Speed
$3,638.00 USD
$4,042.22
Unit price
/
Unavailable
Antal Self Tailing Winch Race XT Size 62 - Aluminum Black / Two Speed is backordered and will ship as soon as it is back in stock.
Special Order Item: 8 - 10 weeks.
Description
Description
XT R is the racing winch series obtained from the standard XT series. Self-tailing XT system, differentiated grip of the drum knurling, CNC base and skirt, fast opening screwed ring, axle with low friction PVD finishing.
And in addition to reduce the weight: aluminium stem, peek roller bearings for the drum and the main shaft lightened gears and main shaft. To reduce weight, XT series winches are mounted on bearings with peek resin roller on an aluminium stem. Antal alloy gears mounted on low-friction and hard wearing PVD treated axles; corrosion-proof insulating gaskets. The base, machined by the CNC process (produced with computer numeric control machines with no cast components), is lighter and stronger than normal castings.Our Part # ANTXT62R | Antal Part # XT62R
Features
Features
Features:
- XT ST race winch
- Power 62
- Two speeds (reduced)
- Black aluminum drum
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Height | 8 5/8 in. | 219.00 mm. |
Base | 8 5/6 in. | 224.00 mm. |
Drum | 4 5/7 in. | 120.00 mm. |
Weight | 18.74 lb. | 8.50 kg. |
Power 1 | 17.80 | 17.80 |
Power 2 | 62.10 | 62.10 |
Recovery (manual use) 1 | 3 1/2 in. | 89.00 mm. |
Recovery (manual use) 2 | 1.00 in. | 26.00 mm. |
Min line | 1/3 in. | 8.00 mm. |
Max line | 5/8 in. | 16.00 mm. |
Fixing screws | 1/4 x 1/3 in. | 6.00 x 8.00 mm. |
Gear ratio 1 | 4.3 : 1 | 4.3 : 1 |
Gear ratio 2 | 14.9 : 1 | 14.9 : 1 |
