Antal  |  SKU: ANTXT44R  |  Manuf. Code: XT44R

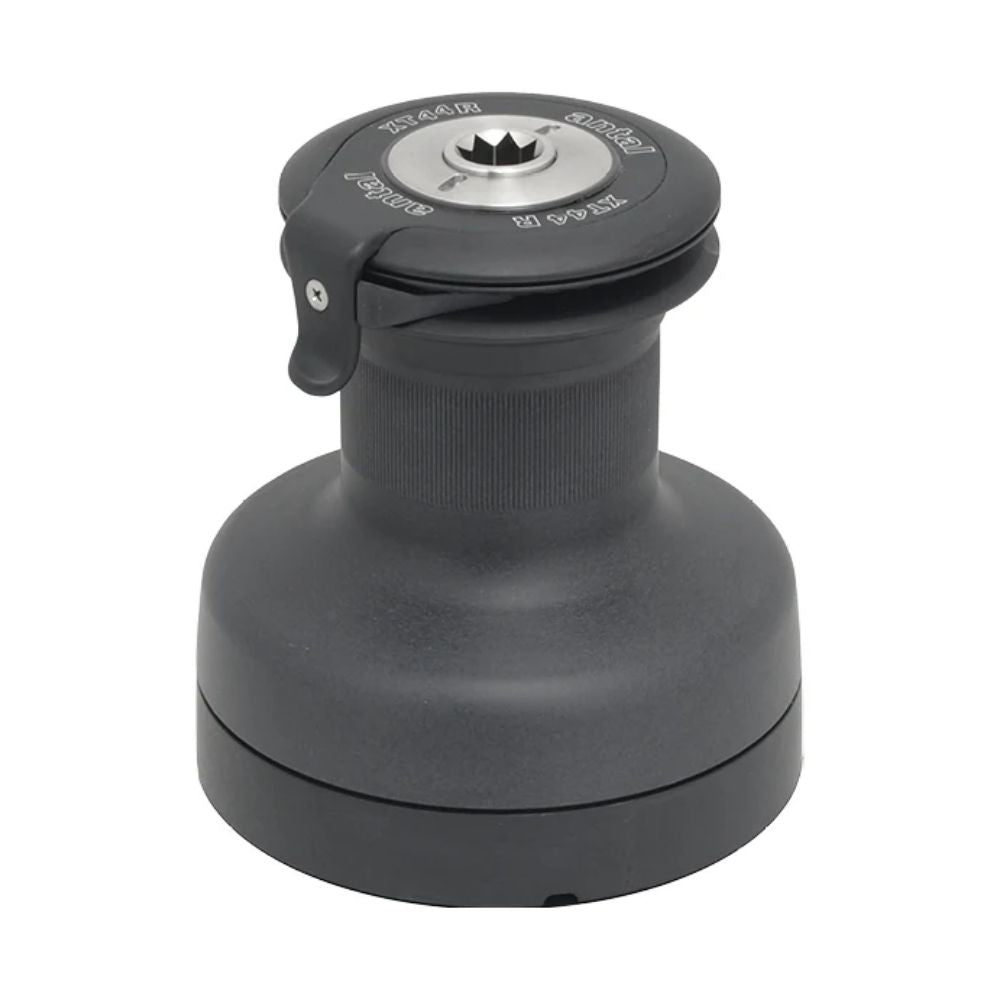

Antal Self Tailing Winch Race XT Size 44 - Aluminum Black / Two Speed

$1,543.00 USD $1,714.44
Special Order Item: 8 - 10 weeks.

Description

XT R is the racing winch series obtained from the standard XT series. Self-tailing XT system, differentiated grip of the drum knurling, CNC base and skirt, fast opening screwed ring, axle with low friction PVD finishing.

And in addition to reduce the weight: aluminium stem, peek roller bearings for the drum and the main shaft lightened gears and main shaft. To reduce weight, XT series winches are mounted on bearings with peek resin roller on an aluminium stem. Antal alloy gears mounted on low-friction and hard wearing PVD treated axles; corrosion-proof insulating gaskets. The base, machined by the CNC process (produced with computer numeric control machines with no cast components), is lighter and stronger than normal castings.

Our Part # ANTXT44R | Antal Part # XT44R

Features

Features:

  • XT ST race winch
  • Power 44
  • Two speeds (reduced)
  • Black aluminum drum

Technical Information


DescriptionImperialMetric
Height7 2/7 in.185.00 mm.
Base6 4/5 in.173.00 mm.
Drum3 2/3 in.93.00 mm.
Weight10.36 lb.4.70 kg.
Power 1 20.0020.00
Power 243.0043.00
Recovery (manual use) 13 1/7 in.80.00 mm.
Recovery (manual use) 21 1/2 in.38.00 mm.
Min line1/3 in.8.00 mm.
Max line5/9 in.14.00 mm.
Fixing screws1/4 x 1/3 in.6.00 x 8.00 mm.
Gear ratio 13.7 : 13.7 : 1
Gear ratio 28 : 18 : 1
