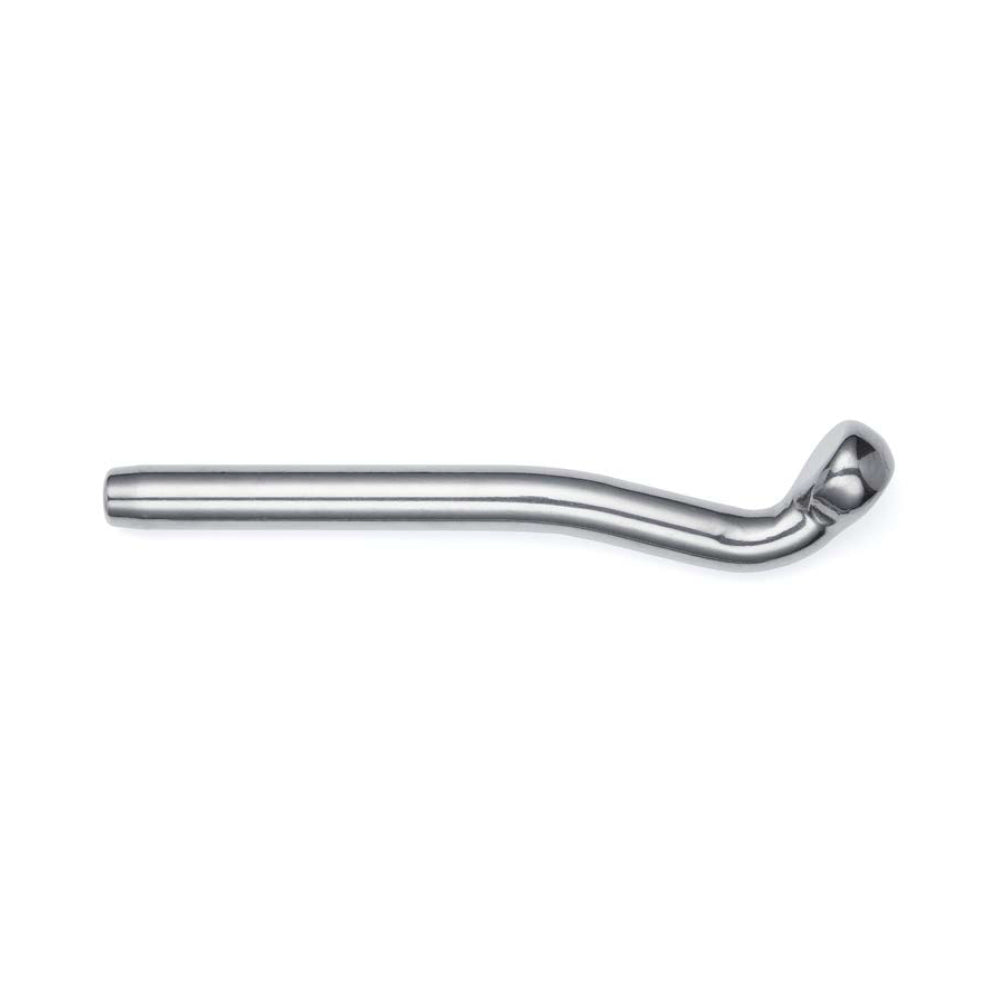

Sta-Lok Standing Rigging - Swage Shroud Terminal - Wire: 1/2 in
SKU:
STA-145-12
|
Manuf. Code:
145-12
18% off
Unit price
/
Unavailable
Sta-Lok Standing Rigging - Swage Shroud Terminal - Wire: 1/2 in is backordered and will ship as soon as it is back in stock.
Description
Description
Suitable for use with rotary &fixed die swaging machine.
Our Part # STA-145-12 | Mfr. Part # 145-12
Features
Features
- Manufactured from high specification 316 stainless steel.
- Use with 1x19, 7 Strand and compacted stand wire rope (IWRC).
- Minimum hole depth 10x wire diameter.
- Metric and Inch wire ropes.
Technical Information
Technical Information

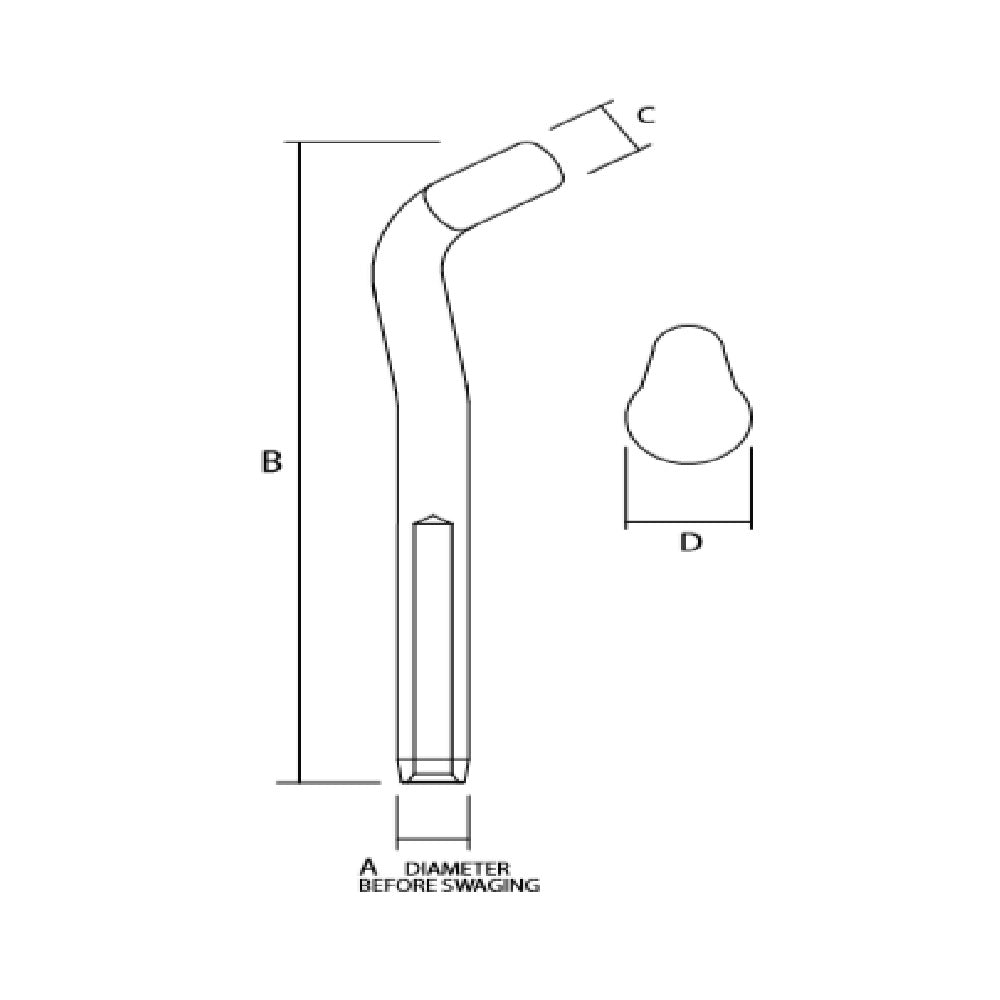

Wire: 1/2 in
A: 21.3 mm / 0.839 in
B: 38 mm / 1.496 in
C: 21.4 mm / 0.842 in
D: 38 mm / 1.496 in
Weight: 0.66 kg / 1.455 lb
