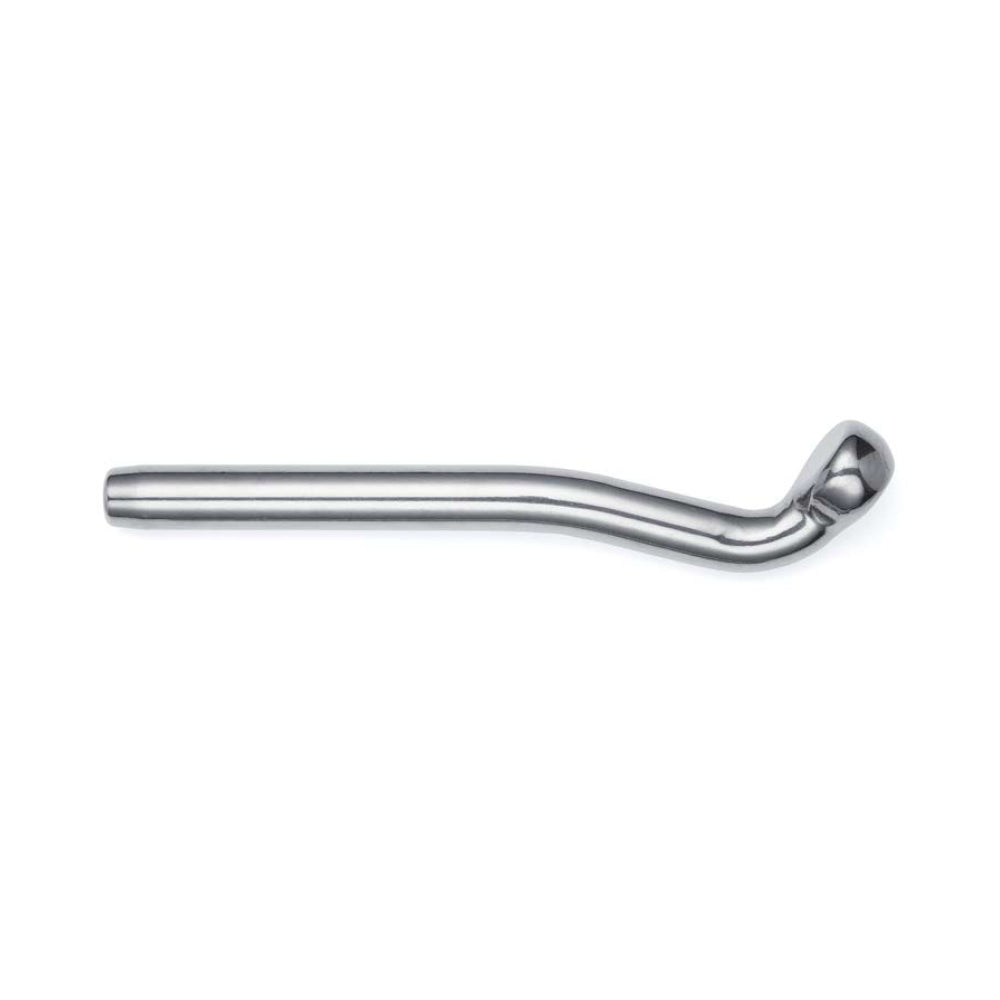

Sta-Lok Standing Rigging - Swage Shroud Terminal - Wire: 12.0 mm

Suitable for use with rotary & fixed die swaging machine

Our Part # STA-045-12 | Sta-Lok Part # 045-12

Fetaures:

• Manufactured from high specification 316 stainless steel.
• Use with 1x19, 7 Strand and compacted stand wire rope (IWRC).
• Fits N840 backing plates.
• Metric and Inch wire ropes.
• Minimum hole depth 10x wire diameter.
• Use with open and closed body turnbuckles.

Wire: 12 mm

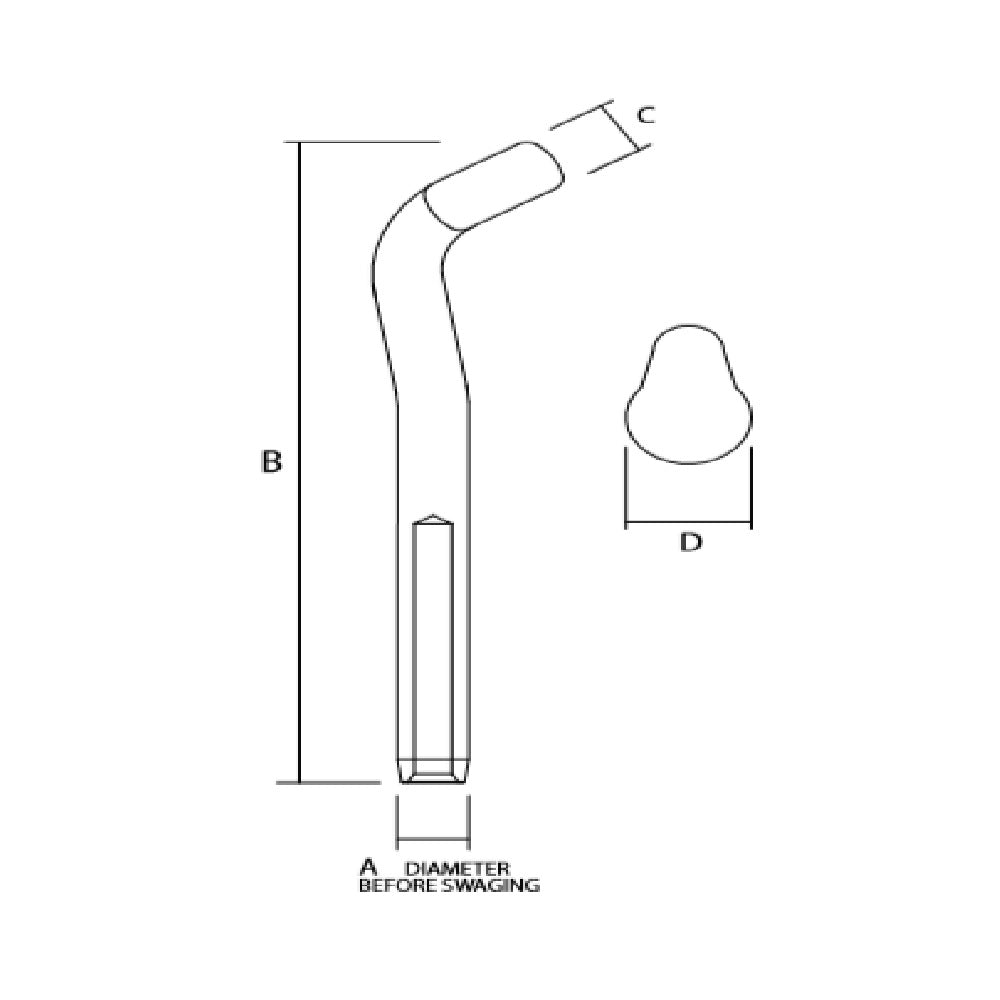

A: 21.4 mm / 0.842 in
B: 38 mm / 1.496 in
C: 21.4 mm / 0.842 in
D: 38 mm / 1.496 in
Weight: 0.66 kg / 1.455 lb
