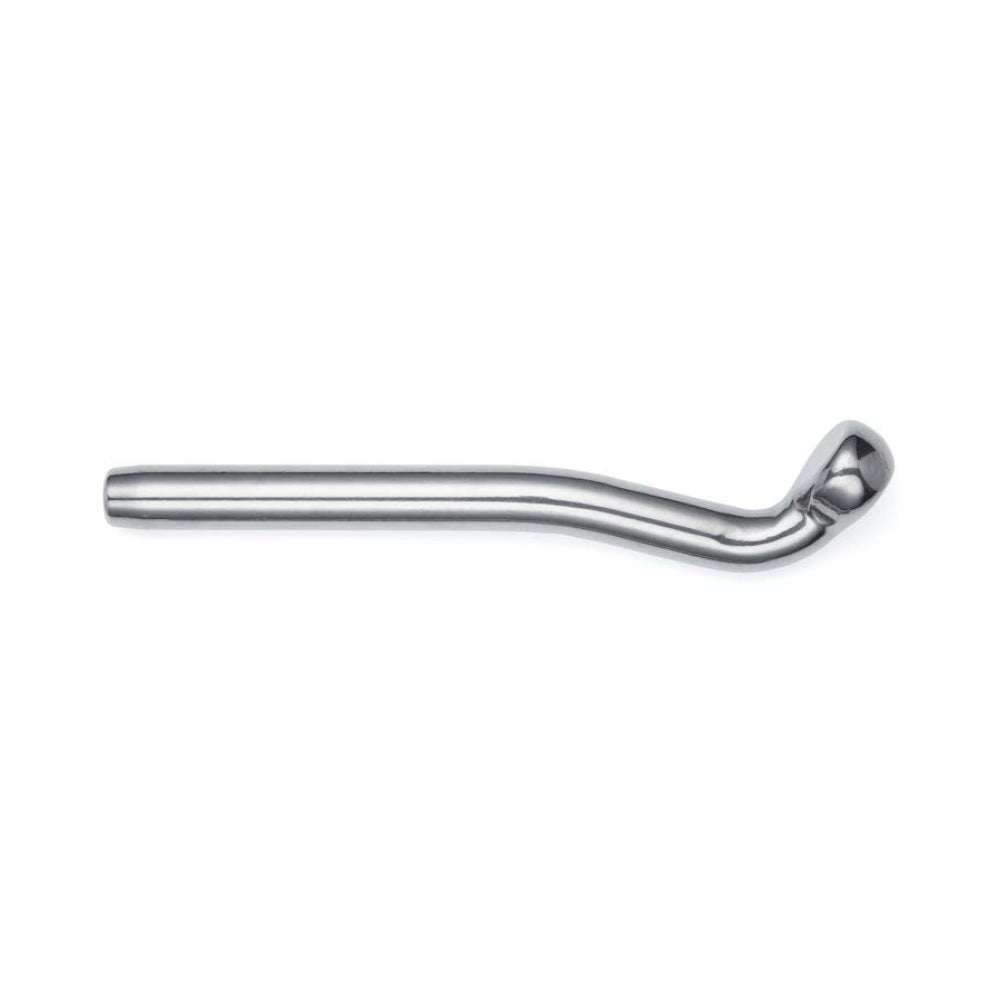

Sta-Lok Standing Rigging - Swage Shroud Terminal - Wire: 10.0 mm

Suitable for use with rotary & fixed die swaging machine

Our Part # STA-045-10 | Sta-Lok Part # 045-10

Fetaures:

• Manufactured from high specification 316 stainless steel.
• Use with 1x19, 7 Strand and compacted stand wire rope (IWRC).
• Fits N840 backing plates.
• Metric and Inch wire ropes.
• Minimum hole depth 10x wire diameter.
• Use with open and closed body turnbuckles.

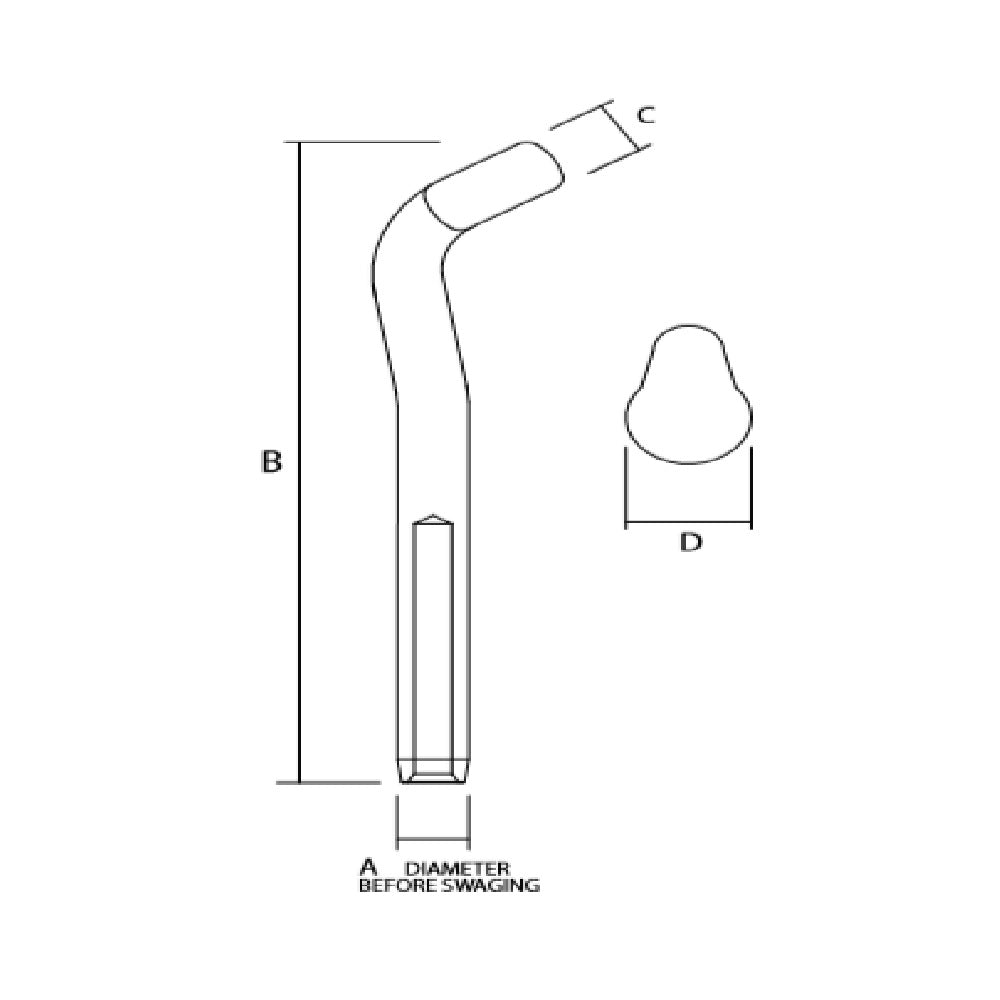

Wire: 10 mm
A: 17.7 mm / 0.698 in
B: 32 mm / 1.260 in
C: 17.8 mm / 0.7 in
D: 32 mm / 1.260 in
Weight: 0.38 kg / 0.838 lb
