Schaefer  |  SKU: SCH8490  |  Manuf. Code: 84-90

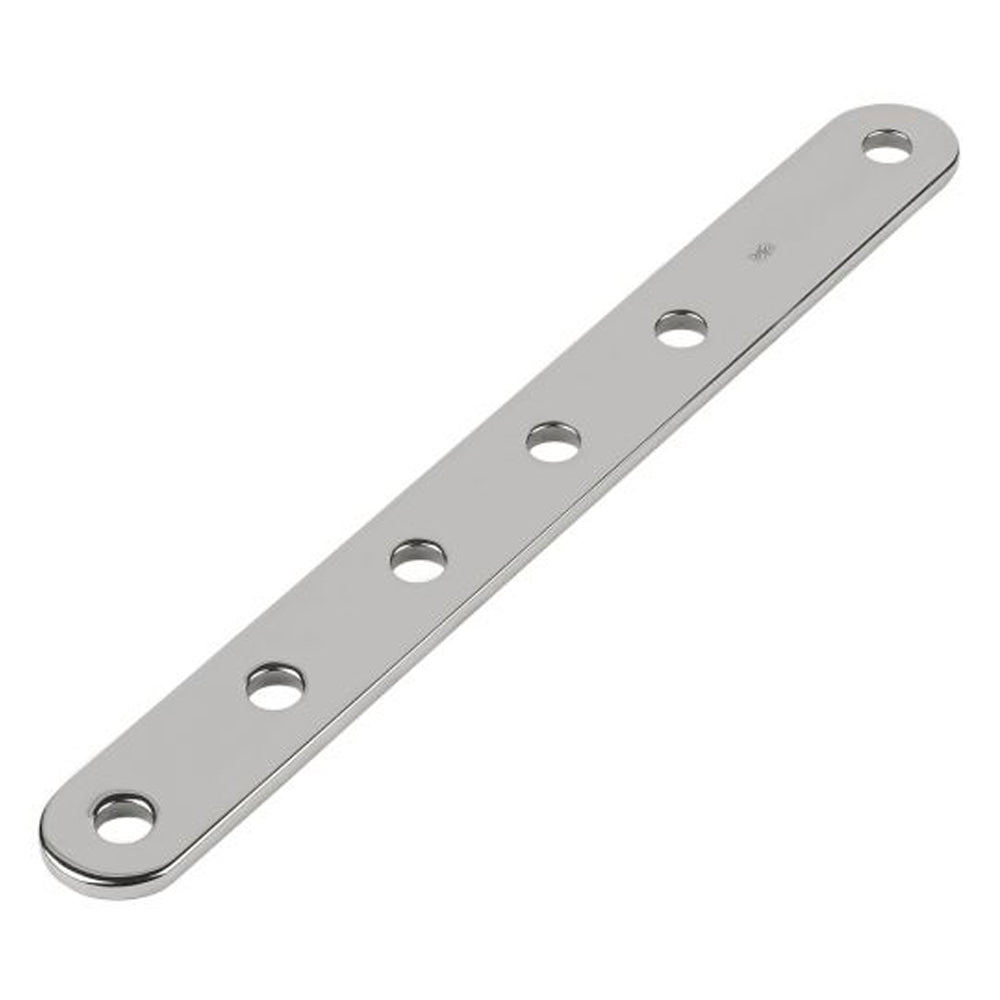

Schaefer Standing Rigging - Chain Plate (Straight) - Wire: 9/32 in (7.14 mm) & Pin: 1/2 in (12.7 mm)

$173.95 USD

Description

Made from type 304 Stainless Steel tumbled and polished to a high luster finish. Chainplates are rated to work with corresponding pin/wire size.

Our Part # SCH8490 | Schaefer Part # 84-90

Technical Information

Pin Hole: 13 mm (1/2 in)
Max Wire: 7 mm (9/32 in)
Fasteners Holes (5): 13 mm (1/2 in)
Length: 356 mm (14 in)
Width: 38 mm (1 1/2 in)
Overall Thickness: 6 mm (1/4 in)
Weight: 595 g (1 lb 5 oz)
