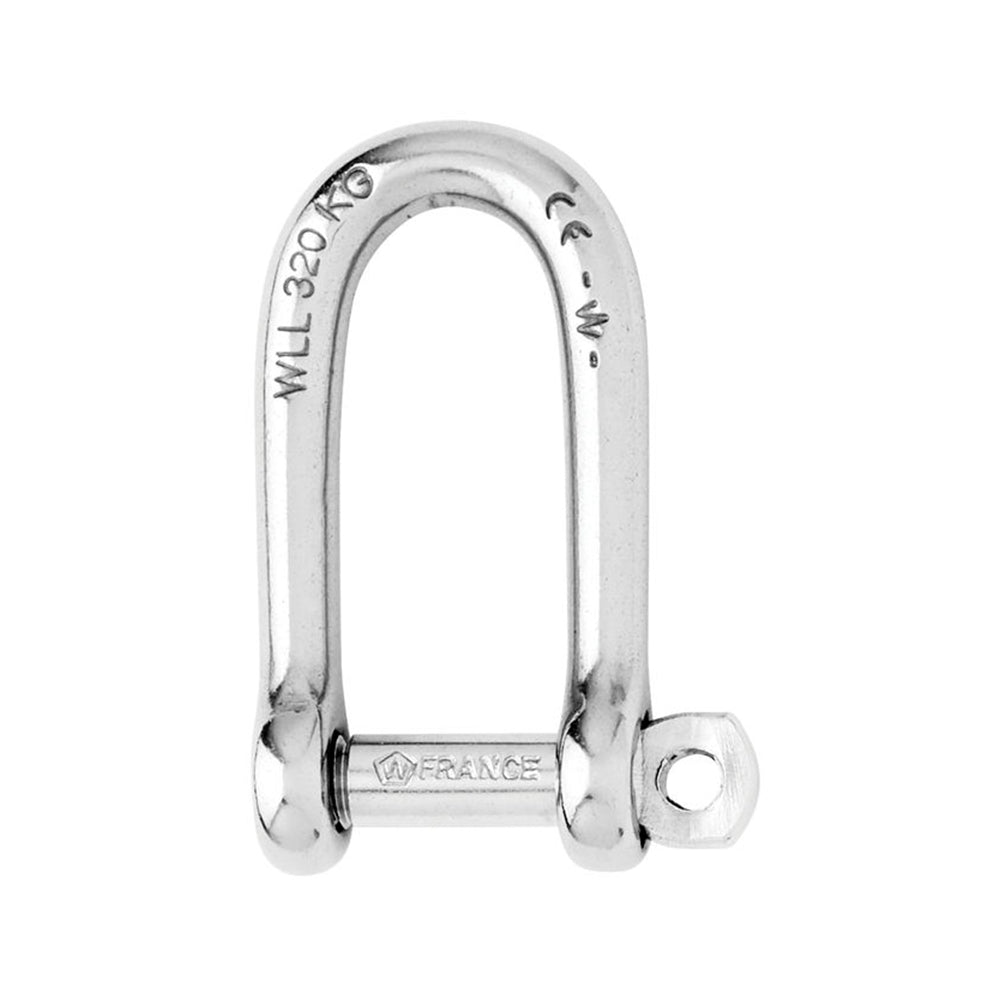

Wichard Self-Locking Long D Shackle - Pin Dia: 5/32 in (4.0 mm)

SKU: WIC1211  |  Manuf. Code: 1211
List Price:  19.00 USD
$14.30 USD

Description

Self-locking D shackle forged in grade 316L stainless steel. The pin is locked into one of the indentations and no risks of loose due to vibrations. Outstanding working and breaking loads. This product is only for industrial applications. Counts with CE marking.

Our Part # WIC1211 | Wichard Part # 1211

Technical Information


DescriptionImperialMetric
Material316 stainless steel grade316 stainless steel grade
Working load700.00 lb.320.00 kg.
WLL300.00 lb.140.00 kg.
Breaking load1540.00 lb.700.00 kg.
Weight0.02 lb.8.00 g.

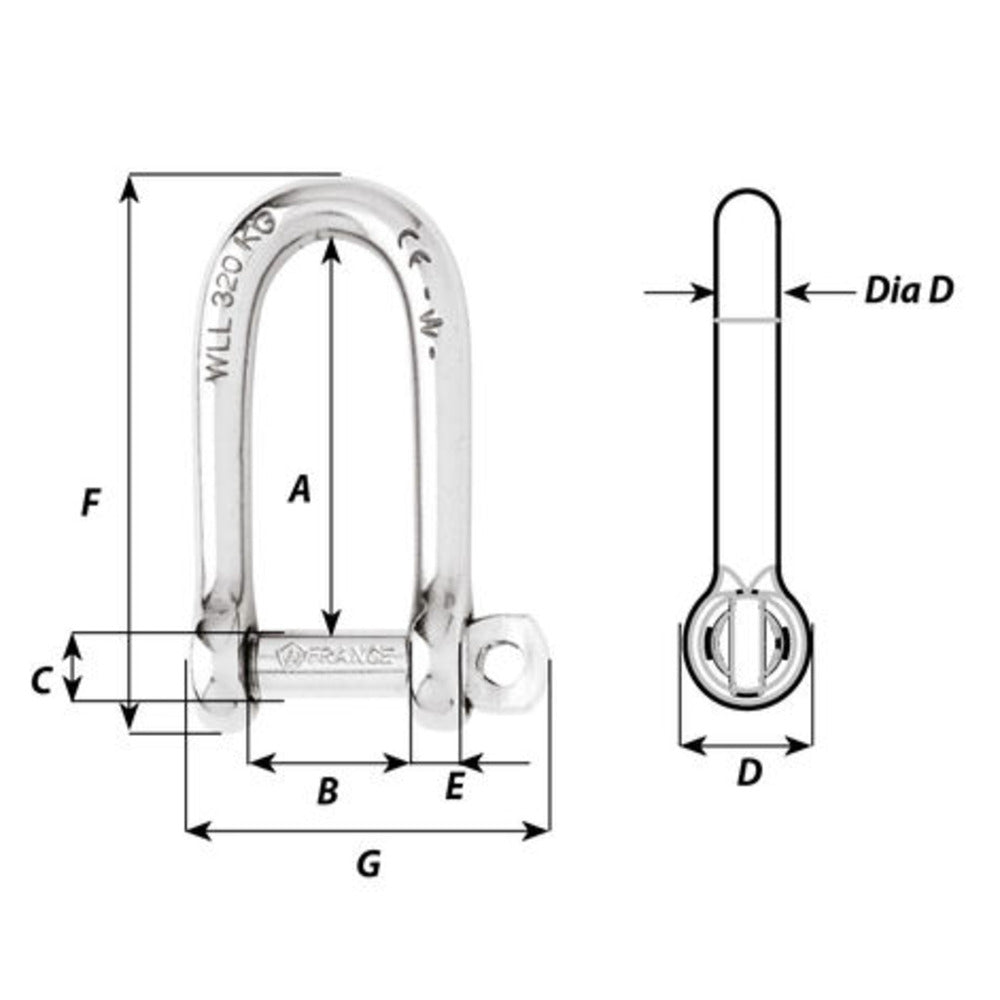

A55/64 in.22.00 mm.
B5/16 in.8.00 mm.
C5/32 in.4.00 mm.
D5/16 in.8.00 mm.
D diameter5/32 in.4.00 mm.
E5/32 in.4.00 mm.
F1 17/64 in.32.00 mm.
G53/64 in.21.00 mm.
