Cyclops Marine  |  SKU: CYC-SMRTUNE516

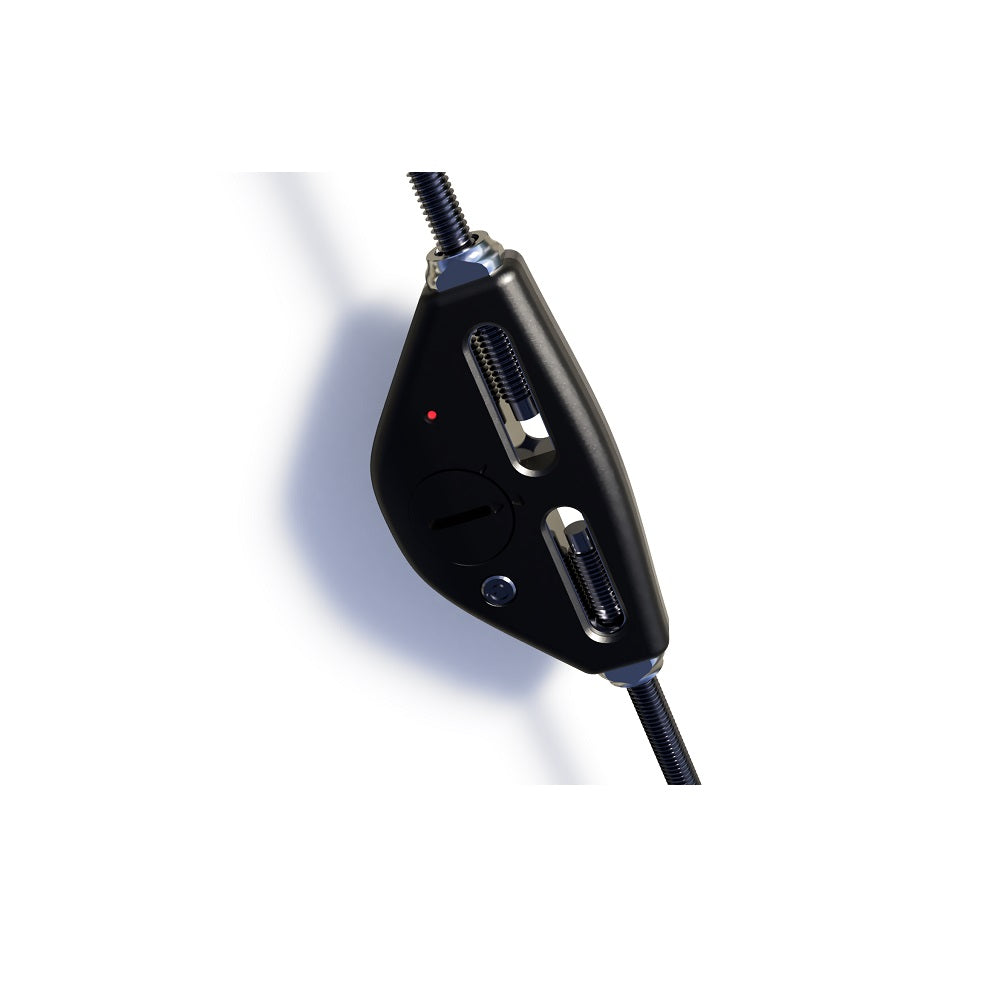

Cyclops Marine Smarttune® 5/16" (5-6mm)

$1,424.00 USD $1,498.95

Description

Next Generation Load Sensing for Standing Rigging on Sports and Day boats.

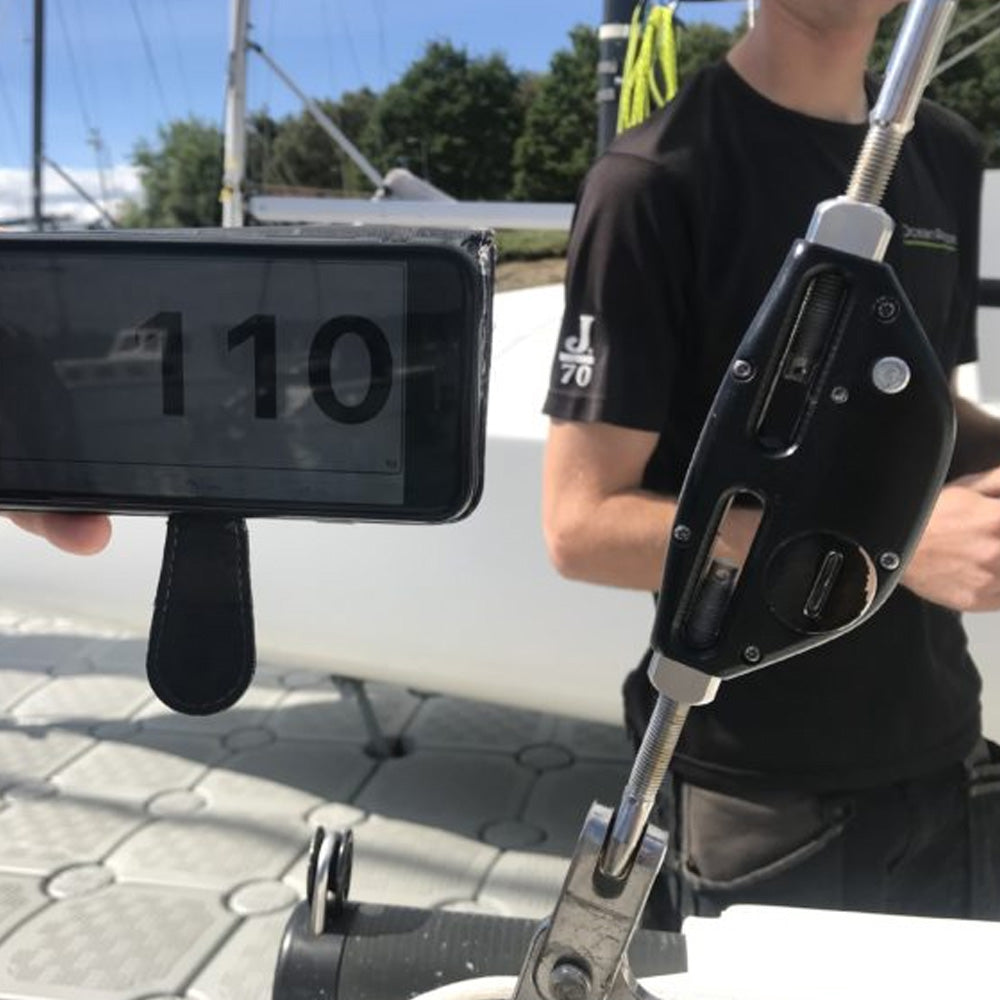

The smarttune 5/16" (the smallest in the smarttune range) is designed specifically for sports and day boats. In minutes it easily swaps in for your existing turnscrew (forestay/backstay/shrouds/diagonals), and moments later can be displaying live load data on your phone wirelessly, or (with the addition of a Cyclops Marine Gateway) on most on-board electronics systems.

  • SmartTune has been precision designed for low weight, low windage.
  • Factory calibrated and accurate to +/- 2% of maximum working load.
  • Durable and waterproof to beyond IP67.
  • Powered by CR2032 batteries.
  • Pair with smartfittings app for logging and analysis.
  • Recommended wireless range of up to 15m while sailing (connect to on-board displays via Gateway for longer range).

Our Part # CYC-SMRTUNE516 | Cyclops Marine Part # TS516B

Features

  • Easily replaces existing rigging turnscrew.
  • Waterproof beyond IP68.
  • Wireless charging.
  • Approx. 16 months battery life.
  • Adjustable data rate via smartfittings app.
  • Wireless connection to your phone via the smartfittings app.
  • Wireless connection directly to Vakaros Atlas 2 and Sailmon MAX.
  • Wireless connection to wired boat electronics via the Cyclops gateway.
  • Data log for analysis stored in smartfittings app and Cyclops gateway.
  • Lightweight and low windage.
  • Accurate to +/- 1% of maximum working load.
  • Designed to fit rigging with relevant working loads.

Knowledge Base

Click on the following technical articles to find relevant information about Cyclops smarttune® below:

Technical Information


DescriptionImperialMetric
Thread Size5/16"7.95 mm.
Calibrated Load 1.10 US Ton.1 Ton.
Breaking Load2.70 US Ton.2.45 Ton.
Sensor Dimensions2.17 x 4.41 x 0.71 in.55 x 112 x 18 mm.
Sensor Weight0.40 lbs.180 gr.
BatteryWireless Charging

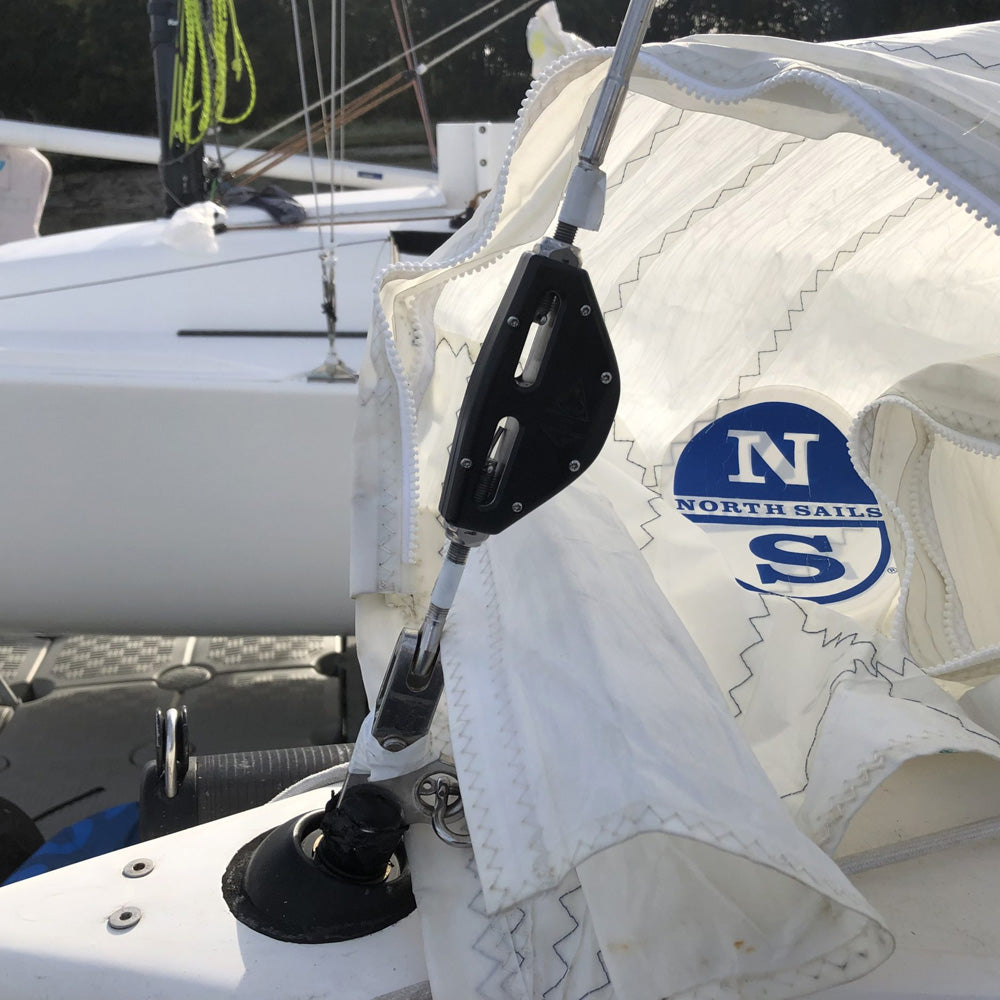

Additional InformationDesigned for sports and day boats. In minutes it easily swaps in for the existing turnscrew in a forestay/backstay or shrouds/diagonals.
