Cyclops Marine  |  SKU: CYC-SMRLINKNANO500

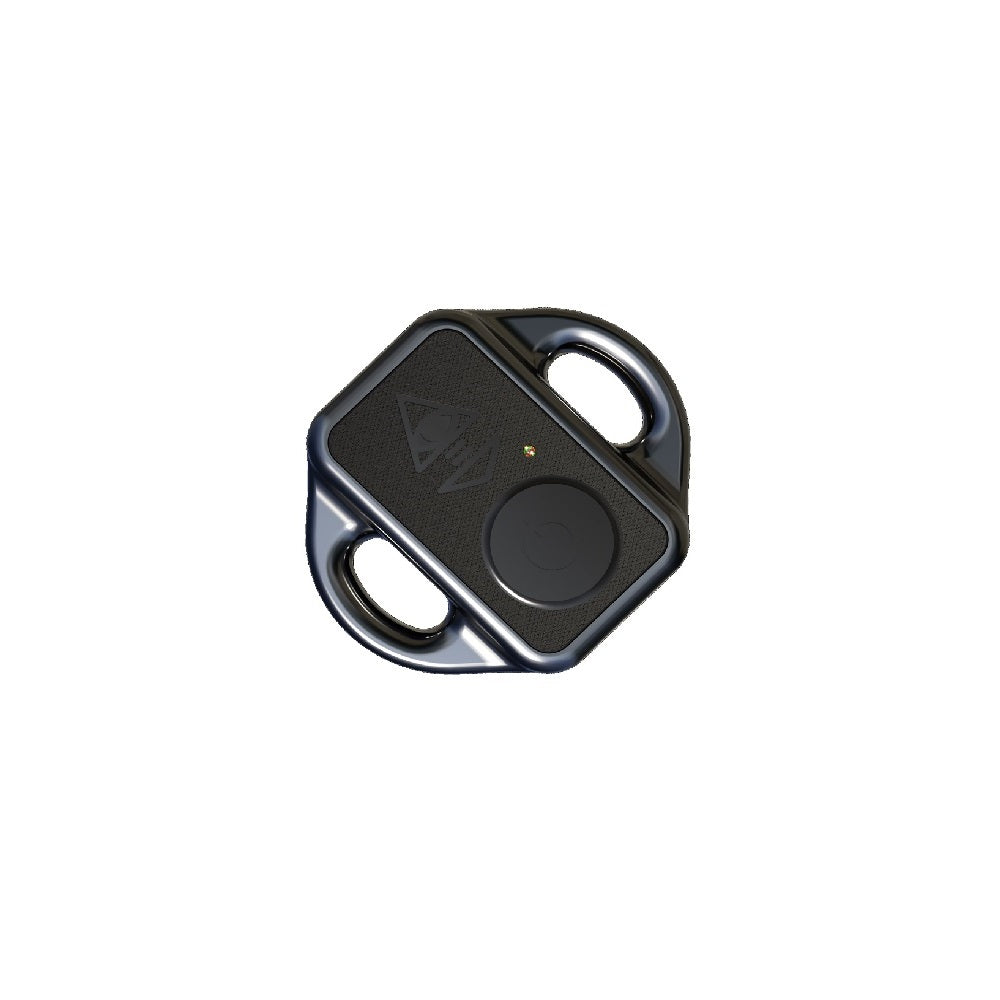

Cyclops Marine Smartlink&#178® Nano 500

$1,296.00 USD $1,364.21

Description

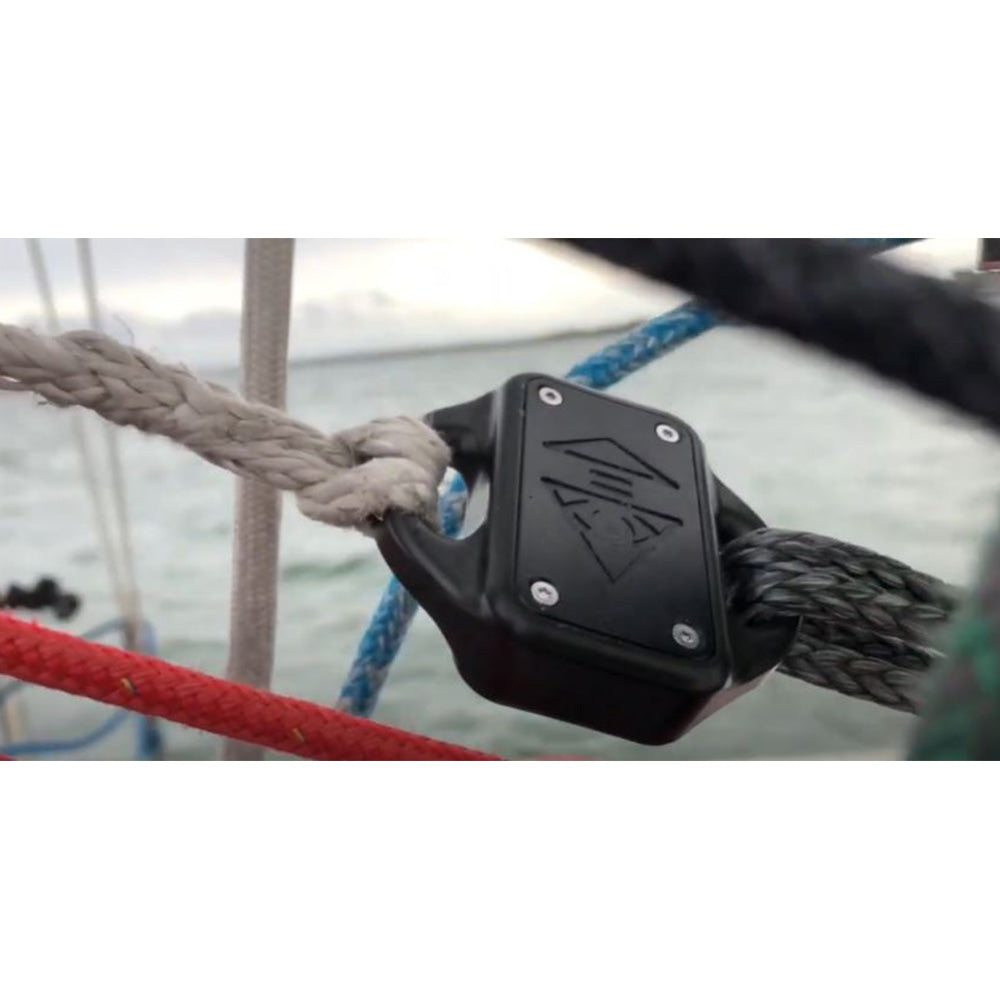

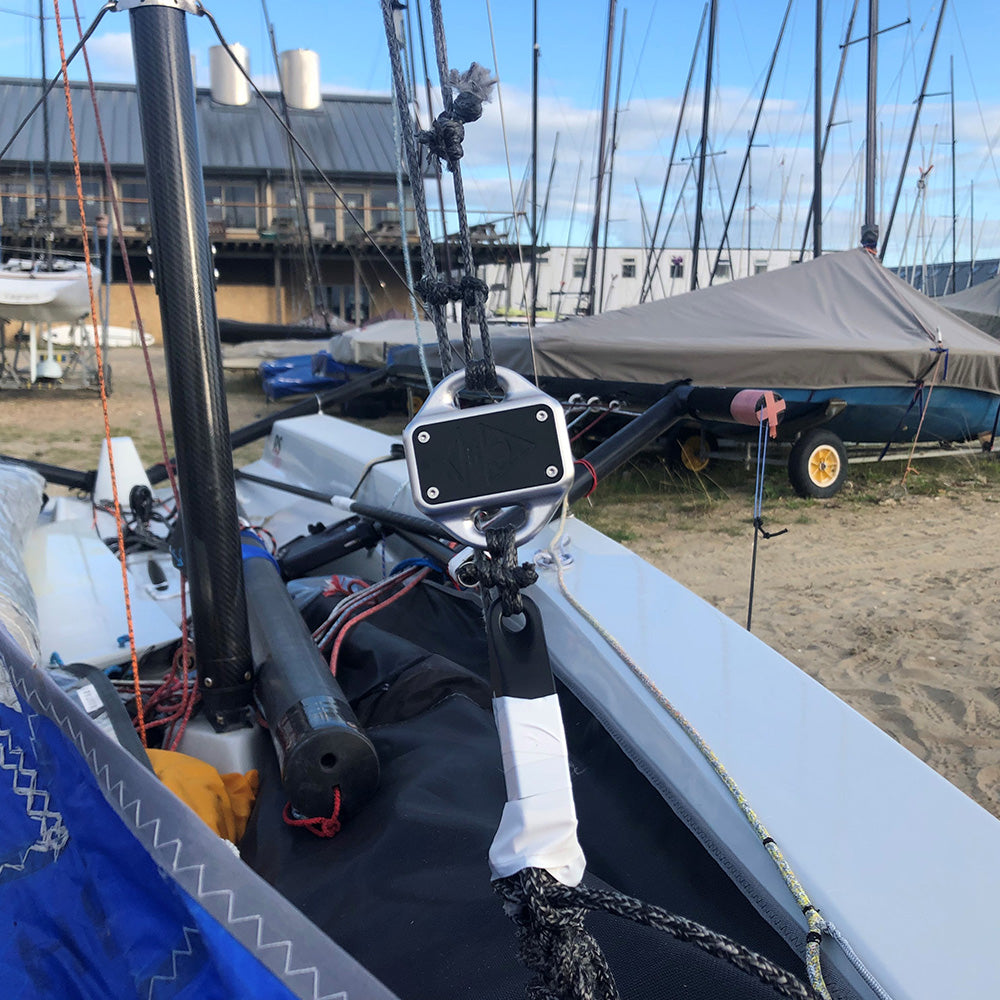

Originally developed with kite surfers and dinghy sailors, the smartlink Nano aims to put load sensing into its smallest possible form. It’s easily added inline of any soft stay or sheet and has been used in countless applications. It displays live load data on your phone wirelessly, or (with the addition of a Cyclops Marine Gateway) on most on-board electronics systems.

The Smallest Possible Load Sensors For Kite Surfers And Sailors.

  • Adjustable tilting head.
  • Quiet, one speed motor.
  • Easy to clean.
  • Soft plastic grip.
  • Integrated belt clip.
  • Operates continuously for 16 hours on one D-cell battery.
  • Economical cooling.
  • Move easily throughout the boat.
  • Great gift.

Our Part # CYC-SMRLINKNANO500 | Cyclops Marine Part # SR09

Features

  • Waterproof beyond IP68.
  • Wireless charging.
  • Fully charged in 1 hour.
  • Up to 2,000 hours battery life.
  • Adjustable data rate via smartfittings app.
  • Wireless connection to your phone via the smartfittings app.
  • Wireless connection directly to Vakaros Atlas 2 and Sailmon MAX wireless displays.
  • Wireless connection to wired boat electronics via the Cyclops gateway.
  • Data log for analysis stored in smartfittings app and Cyclops gateway.
  • Lightweight and low windage.
  • Accurate to +/- 1% of maximum working load.
  • Designed to fit strops with relevant working loads.

Knowledge Base

Click on the following technical articles to find relevant information about Cyclops smartlink® below:

Technical Information


DescriptionImperialMetric
Max. Working Load1322.77 lbs.600 kg.
Sensor Dimensions2.52 x 2.16 x 0.67 in.64 x 55 x 17 mm.
Sensor Weight0.16 lbs.72 gr.
Strop Diameter0.16 in.4.0 mm.
Additional InformationPopular in wind surfing, kiting and dinghy racing.
