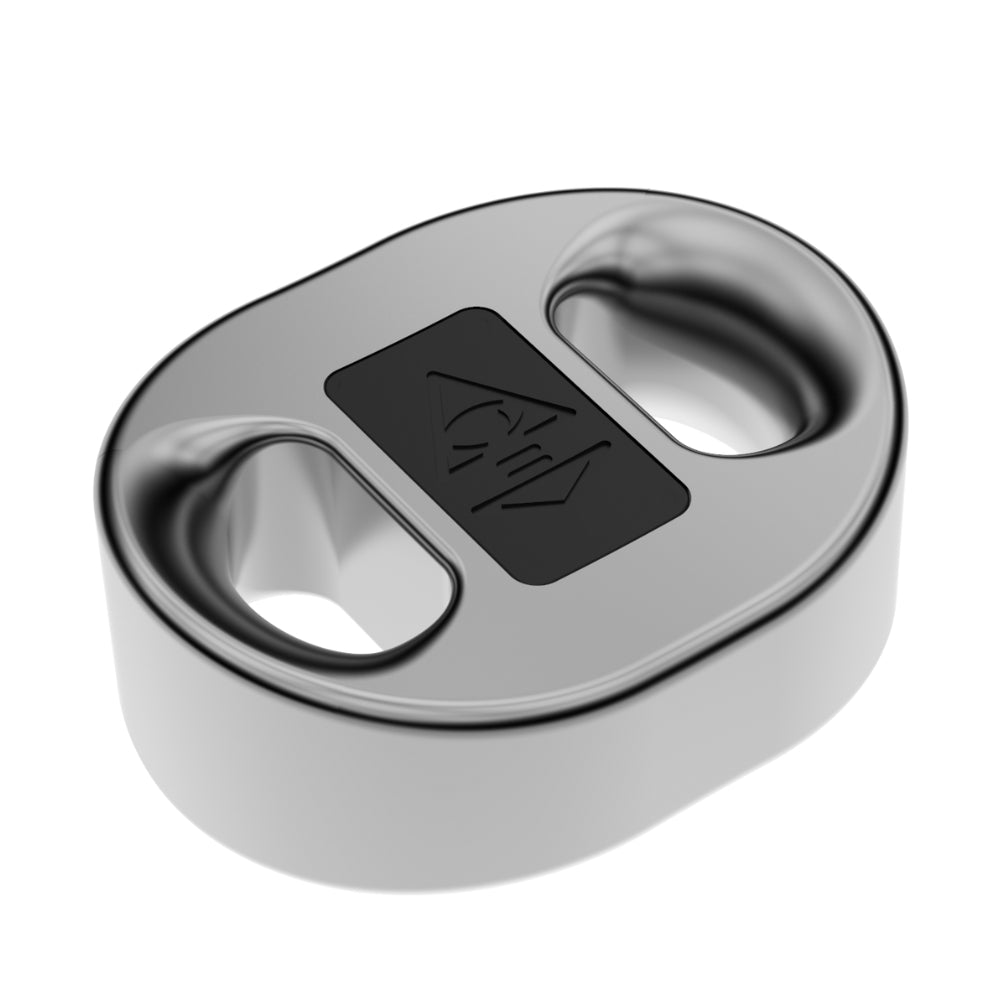

Cyclops Marine Smartlink® 20T Titanium
Cyclops Marine Smartlink® 20T Titanium is backordered and will ship as soon as it is back in stock.
Description
Description
The 20T Titanium #SR10 is the sturdy powerhouse of the smartlink family, engineered for superyachts while keeping it lightweight and compact. Crafted with a focus on precision and strength, it wirelessly streams live load data straight to your phone, making it a reliable companion on larger boats. Whether you're adjusting a soft stay or rigging your sails, it's a versatile addition to any sailing adventure.
Features & Benefits
- Precision designed for low weight, low windage.
- Factory calibrated and accurate to +/- 1% of maximum working load.
- Durable and waterproof beyond IP67.
- Powered by easy-to-source CR2032 batteries.
- Built-in smartbutton preserves battery life, only active when needed.
- Pairs with smartfittings app for logging and analysis.
- Displays on smartphone up to 15m range while sailing, with long-range options via Gateway for on-board systems.
- Bearing surface fits strops with relevant working loads.
Made from high-quality titanium, the smartlink weighs in as the strongest load sensor for its size and weight class. It's specifically designed for compatibility with superyacht rigging, ensuring a perfect fit and reliable performance in demanding marine environments. The device easily integrates into any sailing setup, offering unparalleled accuracy and durability to withstand the harsh conditions of sea life.
Usage

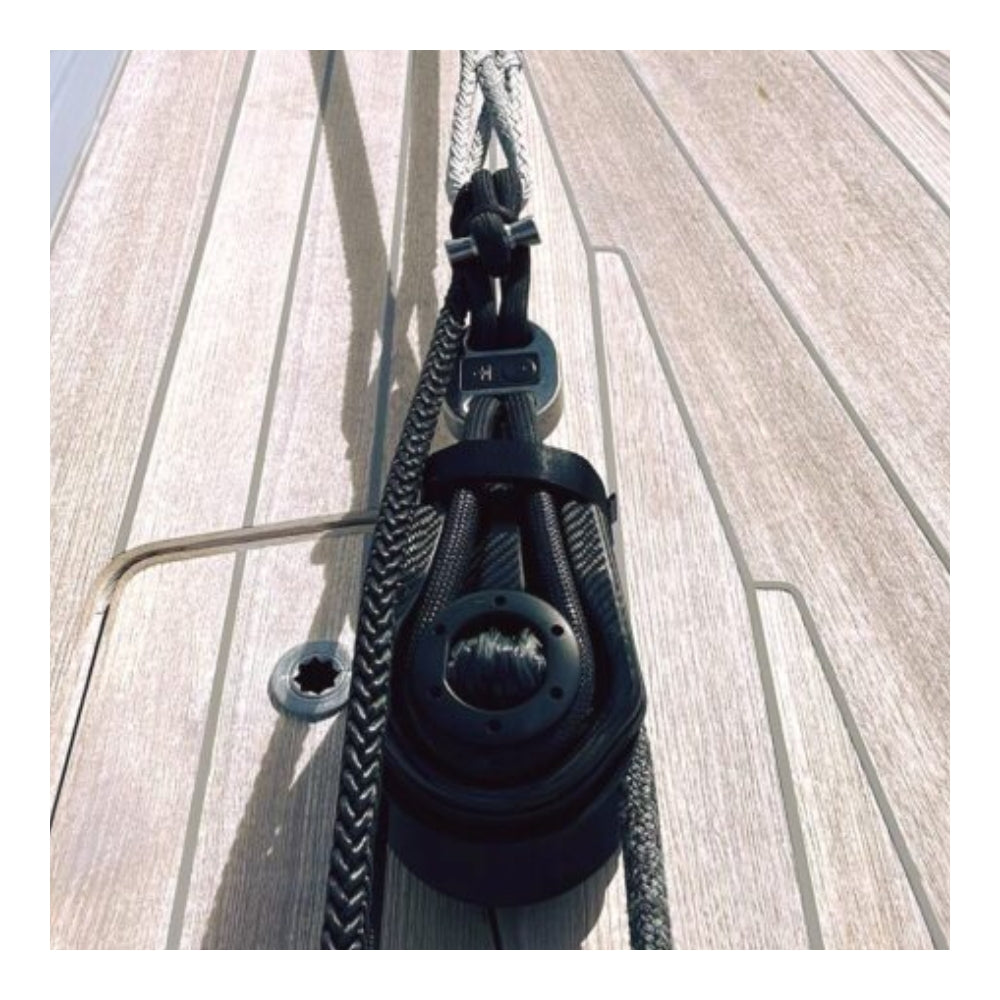

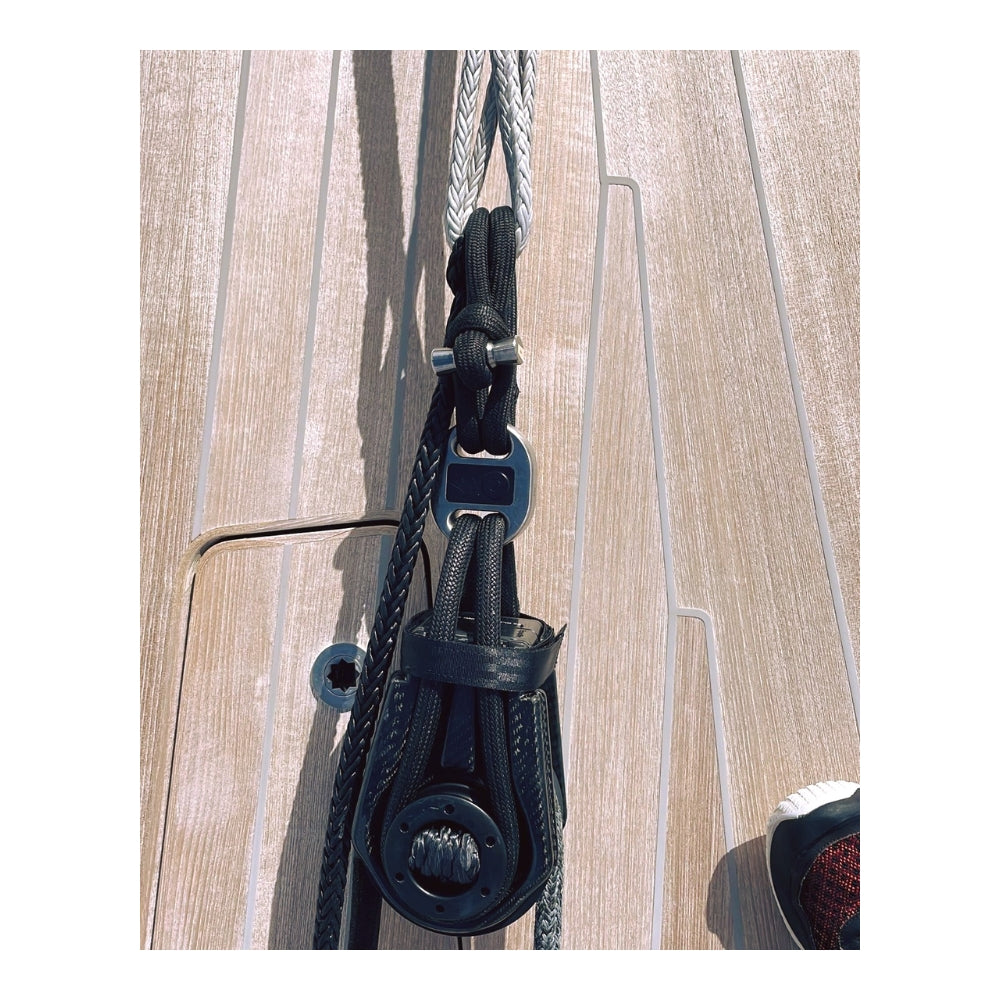

Ideal for superyachts and larger boats, this load sensor is perfect for inline integration on soft stays or sheets. Its wireless capability allows easy monitoring of load data, making it indispensable for applications where precision and safety are paramount.
Features
Features
- Waterproof beyond IP68.

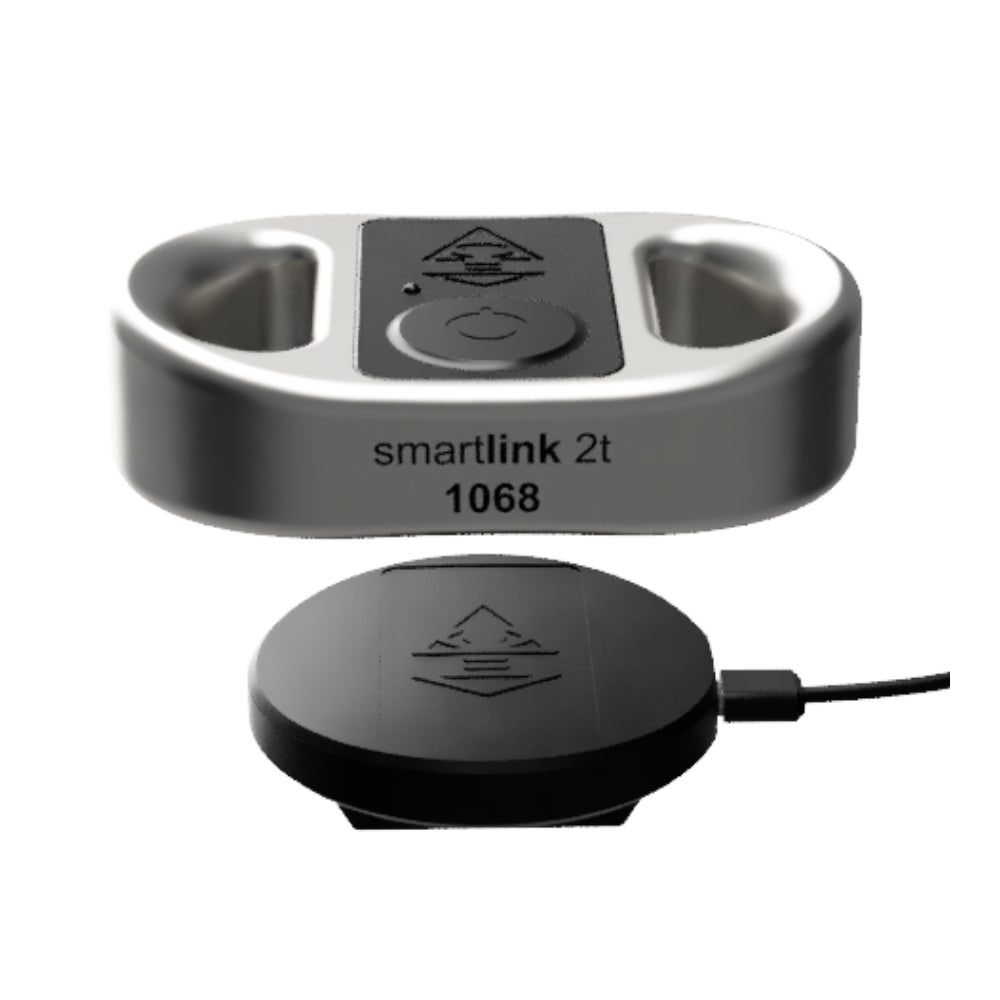

- Wireless charging.
- Fully charged in 1 hour.
- Up to 2,000 hours battery life.
- Adjustable data rate via smartfittings app.
- Wireless connection to your phone via the smartfittings app.
- Wireless connection directly to Vakaros and Sailmon wireless displays.
- Wireless connection to wired boat electronics via the Cyclops gateway.
- Data log for analysis stored in smartfittings app and Cyclops gateway.
- Lightweight and low windage.
- Accurate to +/- 1% of maximum working load.
- Designed to fit strops with relevant working loads.
Knowledge Base
Knowledge Base
Click on the following technical articles to find relevant information about Cyclops smartlink® below:
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Max. Working Load | 22.05 US tons. | 20 tons. |
Sensor Dimensions | 4.21 x 3.46 x 1.54 in. | 107 x 88 x 39 mm. |
Sensor Weight | 1.76 lbs. | 798 gr. |
Strop Diameter | 0.59 in. | 15.0 mm. |
Additional Information | Developed with superyachts in mind and its aperture is crafted specifically for the rigging of larger vessels. |
