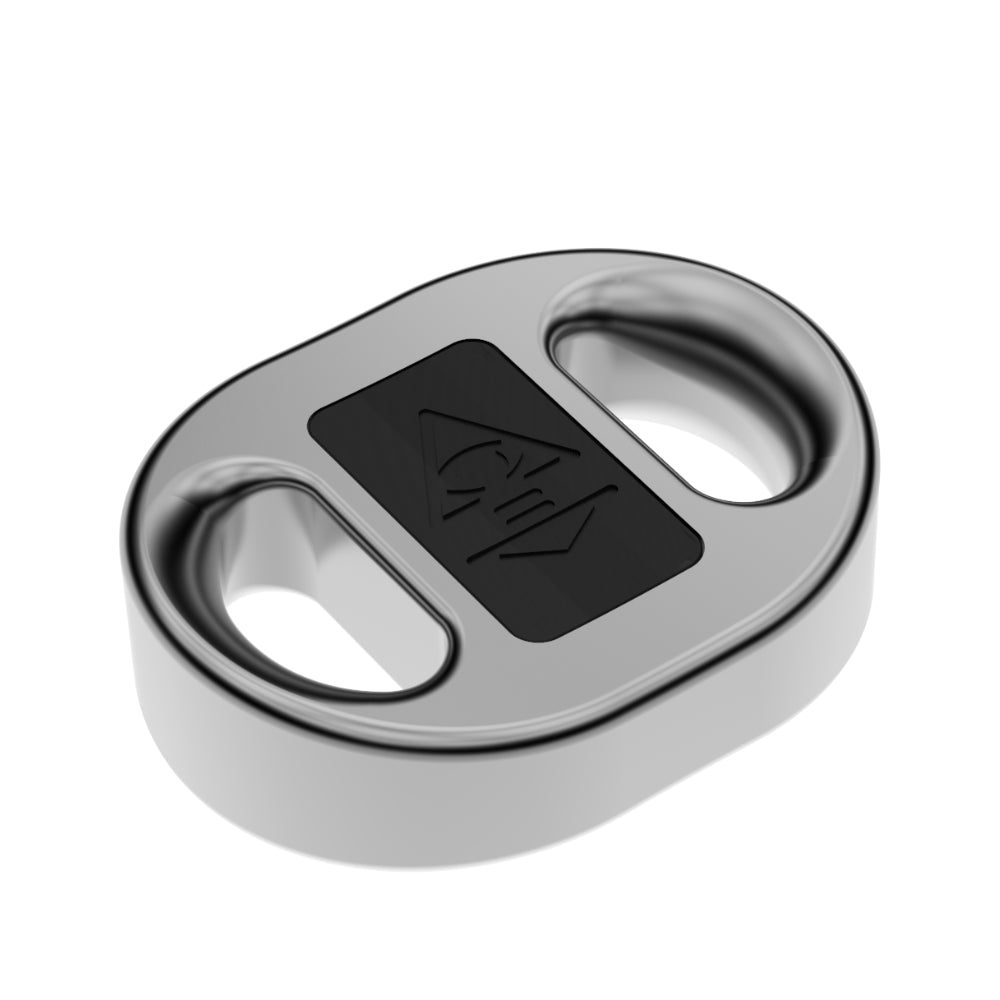

Cyclops Marine Smartlink® 10T Titanium
Cyclops Marine Smartlink® 10T Titanium is backordered and will ship as soon as it is back in stock.
Description
Description
Remember your best race?
When everything clicks, you have another gear, pointing higher, going faster, the boat is in the groove...
Smartlink aims to bring you the smallest, lightest and strongest range of wireless load sensors in the world. Manufactured from titanium, precision designed for soft lines, it delivers real time load information for any performance or safety critical line. Find and repeat the fast settings, quantify adjustments as the wind speed and angle changes. Complete with logging feature for post race analysis. Multiple sensors can be viewed on either our highly intuitive App or via a gateway to your boat displays. Truly "plug and play" for immediate install, complete with a smart power button feature for long battery life. Accurately calibrated to give you repeatable settings, smartlink is the preferred sensing device for leading America's Cup Team INEOS UK, as well as several Olympic and IMOCA teams. Available in four portable sizes dependent on your load requirement. From sheets to halyards, tack lines to backstay, vang to runners - smartlink has everything covered.
- Easy to install and use.
- Multi purpose and location.
- Small, light and strong.
- Durable and waterproof.
- Wireless connectivity.
- Real time loads.
- Calibrated.
- Accurate.
- Endorsed technology.
- Extended battery life.

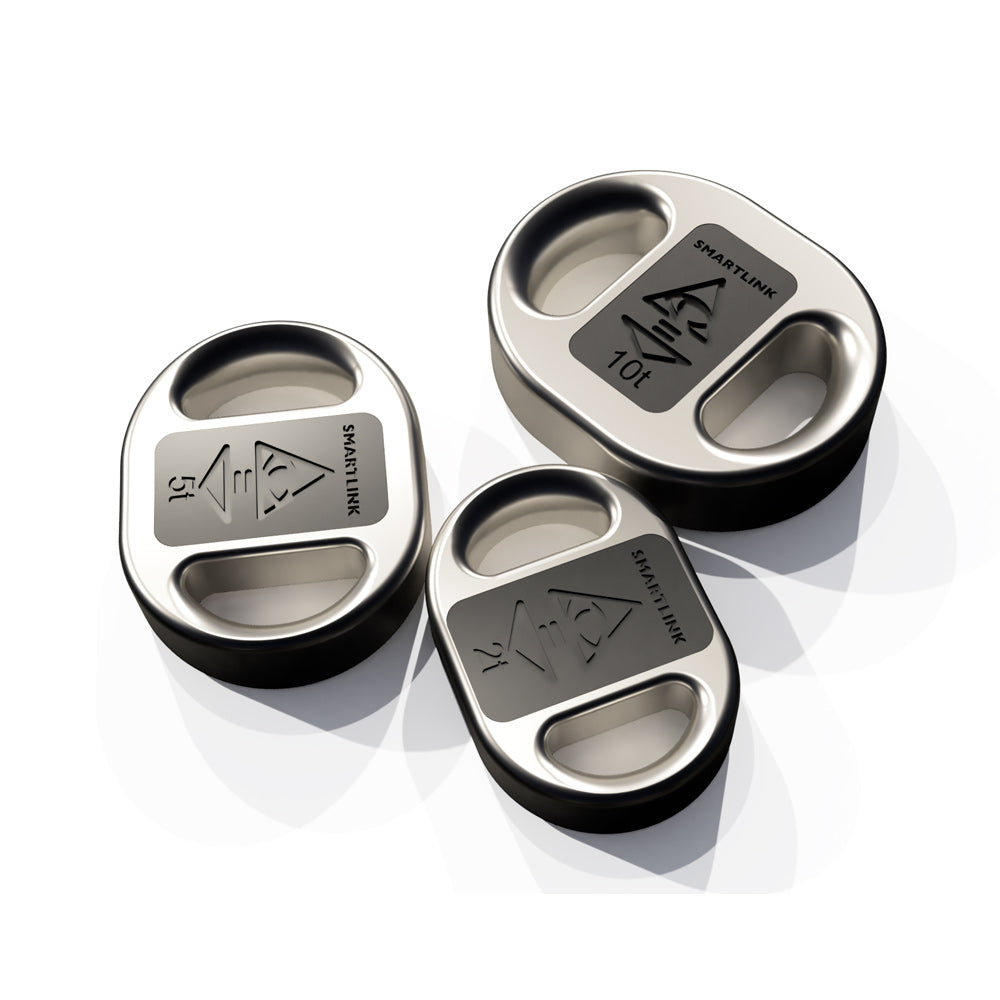

- Available in four sizes.
Our Part # CYC-SMRLINK10T | Cyclops Marine Part # SR13
Features
Features
- Waterproof beyond IP68.
- Wireless charging.
- Fully charged in 1 hour.
- Up to 2,000 hours battery life.
- Adjustable data rate via smartfittings app.
- Wireless connection to your phone via the smartfittings app.
- Wireless connection directly to Vakaros and Sailmon wireless displays.
- Wireless connection to wired boat electronics via the Cyclops gateway.
- Data log for analysis stored in smartfittings app and Cyclops gateway.
- Lightweight and low windage.
- Accurate to +/- 1% of maximum working load.
- Designed to fit strops with relevant working loads.
Knowledge Base
Knowledge Base
Click on the following technical articles to find relevant information about Cyclops smartlink® below:
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Max. Working Load | 11.02 US tons. | 10 tons. |
Sensor Dimensions | 3.66 x 2.91 x 0.98 in. | 93 x 74 x 25 mm. |
Sensor Weight | 0.13 lbs. | 60.0 gr. |
Strop Diameter | 0.49 in. | 12.4 mm. |
Additional Information | Ideal for a range of uses from control systems such as cunningham and vang, through to jib tack, main sheet and backstays. |
