Antal  |  SKU: ANTW16CH  |  Manuf. Code: W16/CH

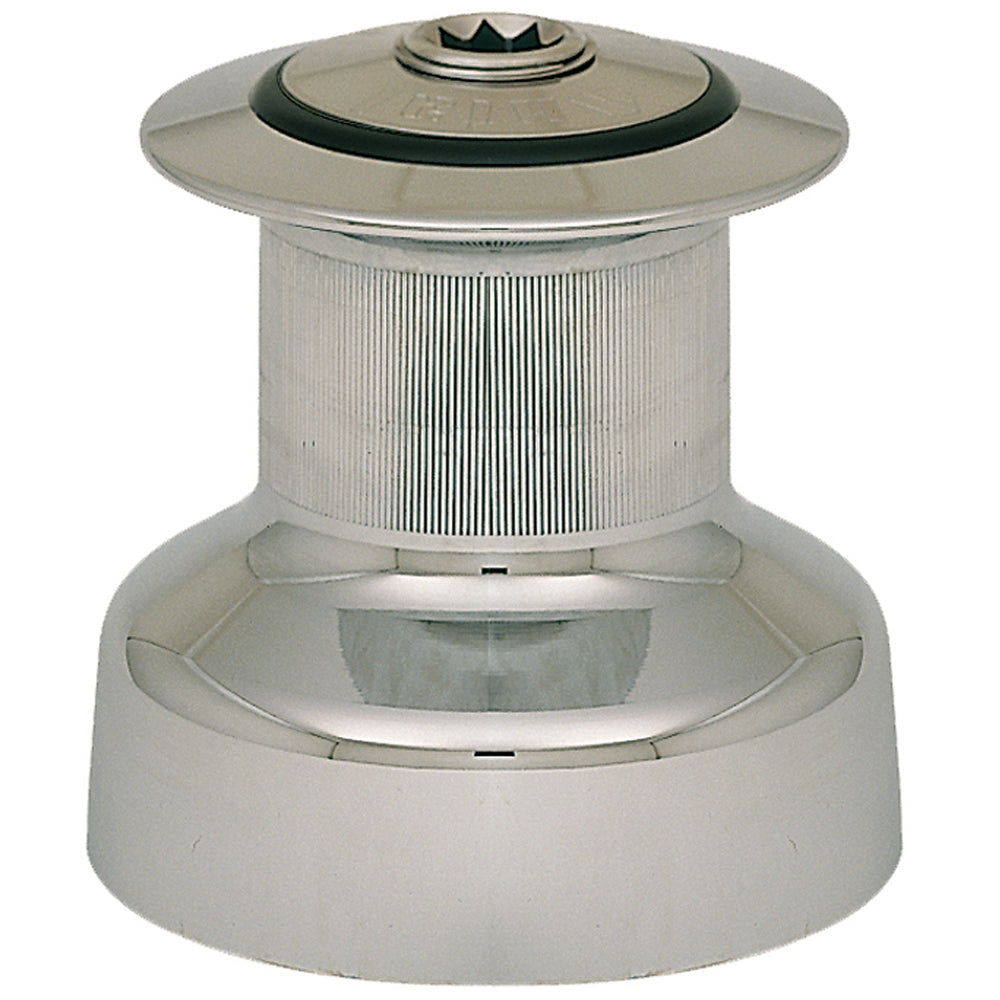

Antal Plain Top Winch Size 16 - Chrome / Two Speed

$408.00 USD $453.33
Special Order Item: 8 - 10 weeks.

Description

Standard winches available in two versions, with black aluminum drum and chromed drum. These are non self-tailing winches. Powers range from 5 to 60.

There are three series of standard winches: one direct speed winches, small and fast models for boats up to 6-7 m, two speed winches, direct and reduced: medium size models for boats up to 9-10 m, two reduced speed winches, medium-large size models for boats up to 12-13 m.

Our Part # ANTW16CH | Antal Part # W16/CH

Features

Features:

  • Standard non ST winches
  • Power 16
  • Two speeds (direct and reduced)
  • Chromed drum

Technical Information


DescriptionImperialMetric
Height4 1/6 in.106.00 mm.
Base4 1/3 in.110.00 mm.
Drum2 4/5 in.71.00 mm.
Weight6.39 lb.2.90 kg.
Power 1 7.307.30
Power 214.5014.50
Recovery (manual use) 18 2/3 in.220.00 mm.
Recovery (manual use) 24 1/3 in.110.00 mm.
Fixing screws1/5 x 1/4 in.5.00 x 6.00 mm.
Gear ratio 11 : 11 : 1
Gear ratio 22.1 : 12.1 : 1
