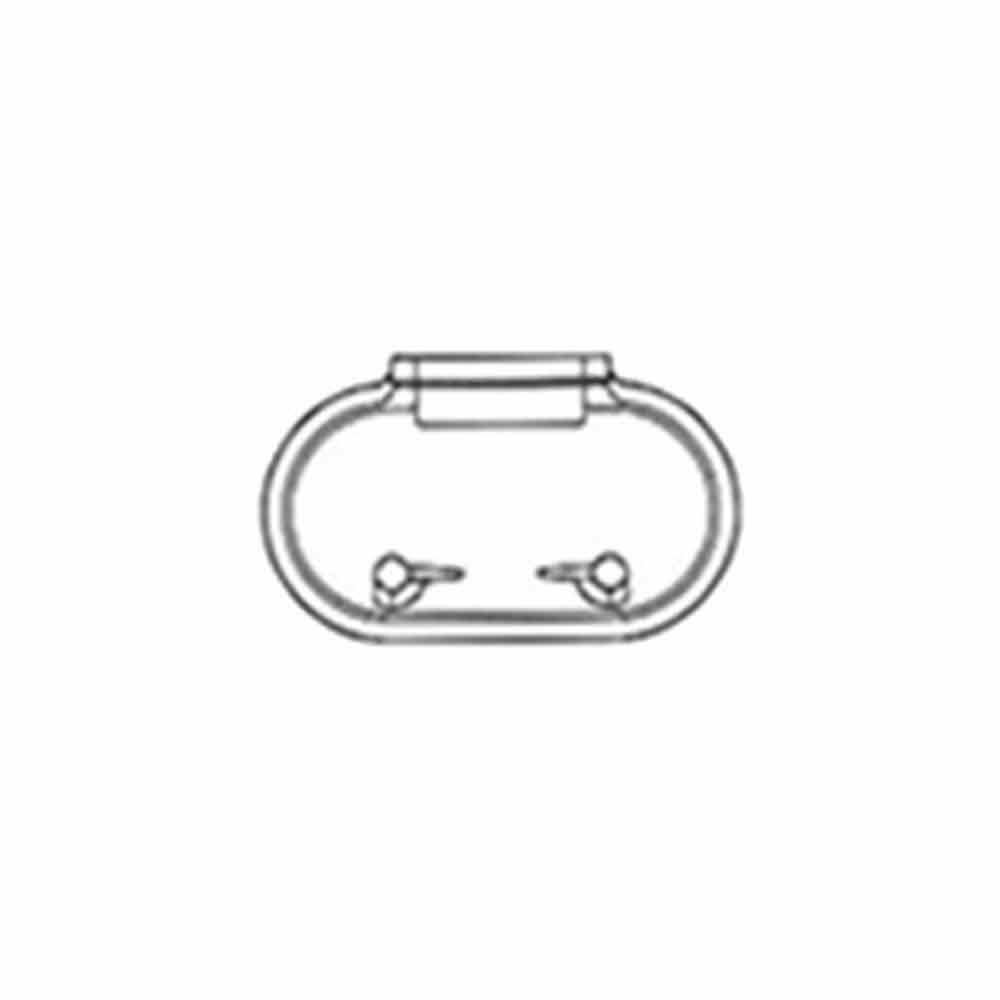

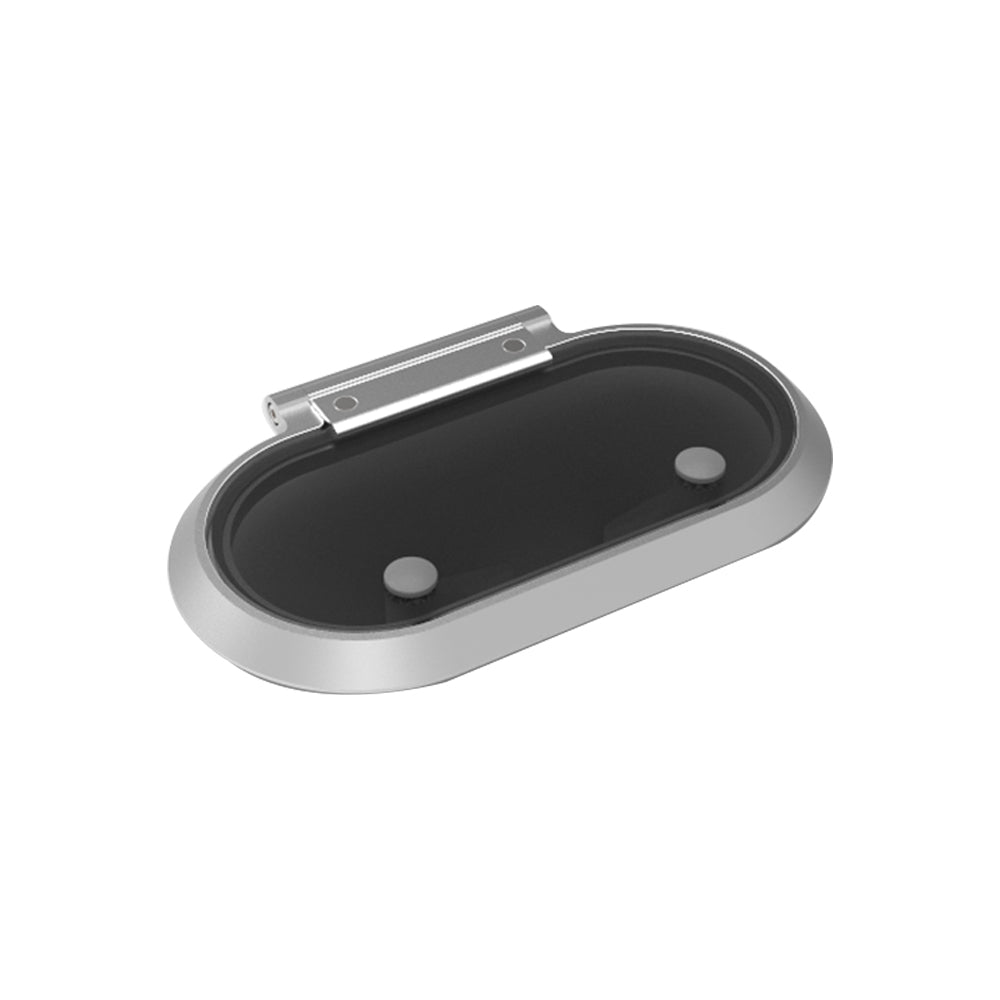

Goiot Integra Hatch Size 26.13 (Round) - Cut Out: 26 x 13.0 cm (10 1/4 x 5 1/8 in) - Grey Acrylic / Aluminum Frame
Goiot Integra Hatch Size 26.13 (Round) - Cut Out: 26 x 13.0 cm (10 1/4 x 5 1/8 in) - Grey Acrylic / Aluminum Frame is backordered and will ship as soon as it is back in stock.
Description
Description
With a flat profile, lightweight construction and acrylic lid, this range is ideally suited for the roof or the deck. The lower frame is engineered from one-piece aluminium casting and therefore provides unequalled strength. With its outward opening, it replaces roof portlights by ensuring a better water draining.
The assembly is done by simple bonding, which definitely reduces labour time for shipyards. We recommend to use a polyurethane compound i.e. Sikaflex 92.
Our Part # GOI-105991 | Mfr. Part # 105991
Features
Features
0
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Weight | 2.2 lb | 1.0 kg |
Cut-out dimensions | 10 1/4 x 5 1/8 in | 260.0 x 13.0 cm |
Overall dimensions | 11 1/7 x 6 19/32 in | 283.0 x 168.0 mm |
Cut-out radius | 2 9/16 in | 65.0 mm |
Acrylic thickness | 5/16 in | 8.0 mm |
Lid height | 19/32 in | 15.0 mm |
Frame flange | 1/2 in | 12.0 mm |
