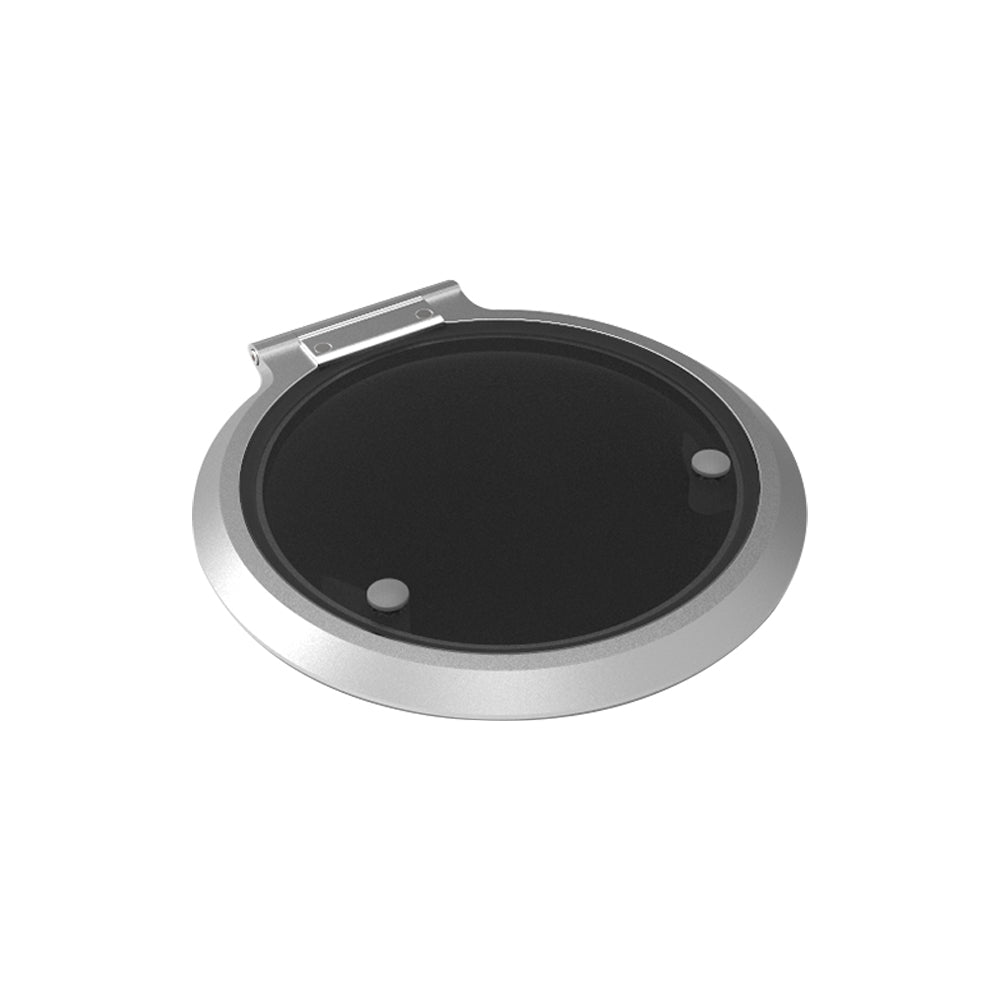

Goiot Integra Hatch Size 27C (Round) - Cut Out: 27.8 x 27.8 cm (10 15/16 x 10 15/16 in) - Grey Acrylic / Aluminum Frame
Goiot Integra Hatch Size 27C (Round) - Cut Out: 27.8 x 27.8 cm (10 15/16 x 10 15/16 in) - Grey Acrylic / Aluminum Frame is backordered and will ship as soon as it is back in stock.
Description
Description
The Goiot Integra Hatch #102117 is perfect for your boat's roof or deck, thanks to its flat profile and lightweight design. Its strong aluminum frame, combined with a sleek grey acrylic lid, ensures durability and style without compromising functionality. You won't find a better choice for an outward-opening ventilation hatch that efficiently drains water.
Benefits
- Lightweight design for easy installation and handling
- Durable one-piece aluminum frame for superior strength
- Outward-opening acrylic lid for optimal ventilation
- Flat profile suitable for roof or deck placement
- Efficient water draining replaces traditional roof portlights
This ventilation hatch measures 12 1/2 x 12 1/2 inches (318 x 318 mm) and features a robust aluminum lower frame with a grey acrylic lid. Its straightforward bonding assembly makes it a time-saving option for shipyards. Compatible with polyurethane compounds like Sikaflex 92, this hatch is a reliable choice for enhancing your boat’s ventilation system.
Usage
Perfect for both recreational and professional sailing, this hatch is ideal for those looking to improve airflow while maintaining a sleek and modern boat aesthetic. Suitable for installation on both roofs and decks.
Features
Features
- Plastic handles incorporate a ventilation position, obtained by turning the small handle in the opposite direction from the opening direction
- The 44C size and the 44.31 to 79.79 sizes are equipped with outside handles ; plastic caps are also supplied on these models, to prevent breaking in from outside.
- Supplied as standard with a gray acrylic
- Mounting on a flat surface with a tolerance of ± 0.5 mm
- Milling diameter of the frame 5.3 mm (for M5 countersunk screws)
- Approved in areas IIa, III and IV
- Not approved for a use as escape hatches
- Available options: ventilator, lock, aluminium handles and aluminium sheet metal panel
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Weight | 3.53 lb | 1.6 kg |
Cut-out dimensions | Ã11.0 mm | Ã278.0 mm |
Overall dimensions | Ã12 1/2 in | Ã318.0 mm |
Cut-out radius | - | - |
Acrylic thickness | 5/16 in | 8.0 mm |
Lid height | 3/4 in | 19.0 mm |
Frame flange | 1/2 in | 12.0 mm |
