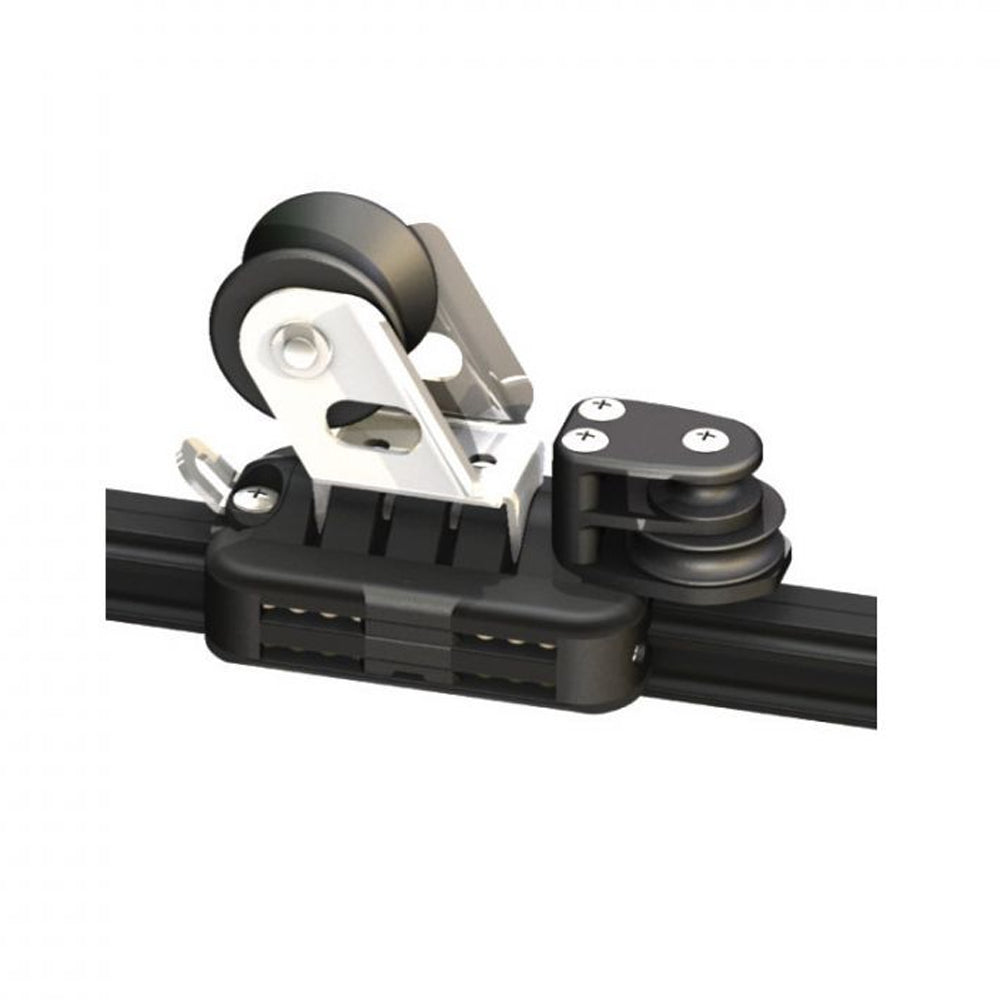

Antal 4Race Car - Ball bearing - Car Sizes: 100 - w/ 2 Control Sheaves

Car with 1 sheave + becket. Ball bearing car in hard black anodized aluminum with four ball circuits: 2 Torlon ball circuits (lower) and 2 Delrin ball circuits (upper). The car will remain on the track even after ball bearing failure (overload). Side windows for easy maintenance and ball bearing cleaning and/or replacement. The car, the track and all components are extruded in high strength alloy and hard black anodized. (Steel parts: AISI 316)

Part Number: 4603

Our Part # ANT4603 | Mfr. Part # 4603

Length: 98 mm
Width: 62 mm
Overall height from deck: 100 mm
No. Sheaves: 1
Track dimensions: 26x20 mm
Ø Sheave: 45 mm
Weight: 0.4 kg
A: 59 mm
SWL: 820 kg
Becket: Yes
Ø control pulley: 35 mm
No. balls: 1/4" 50 x Torlon + 50 x Delrin
M: 125 mm
