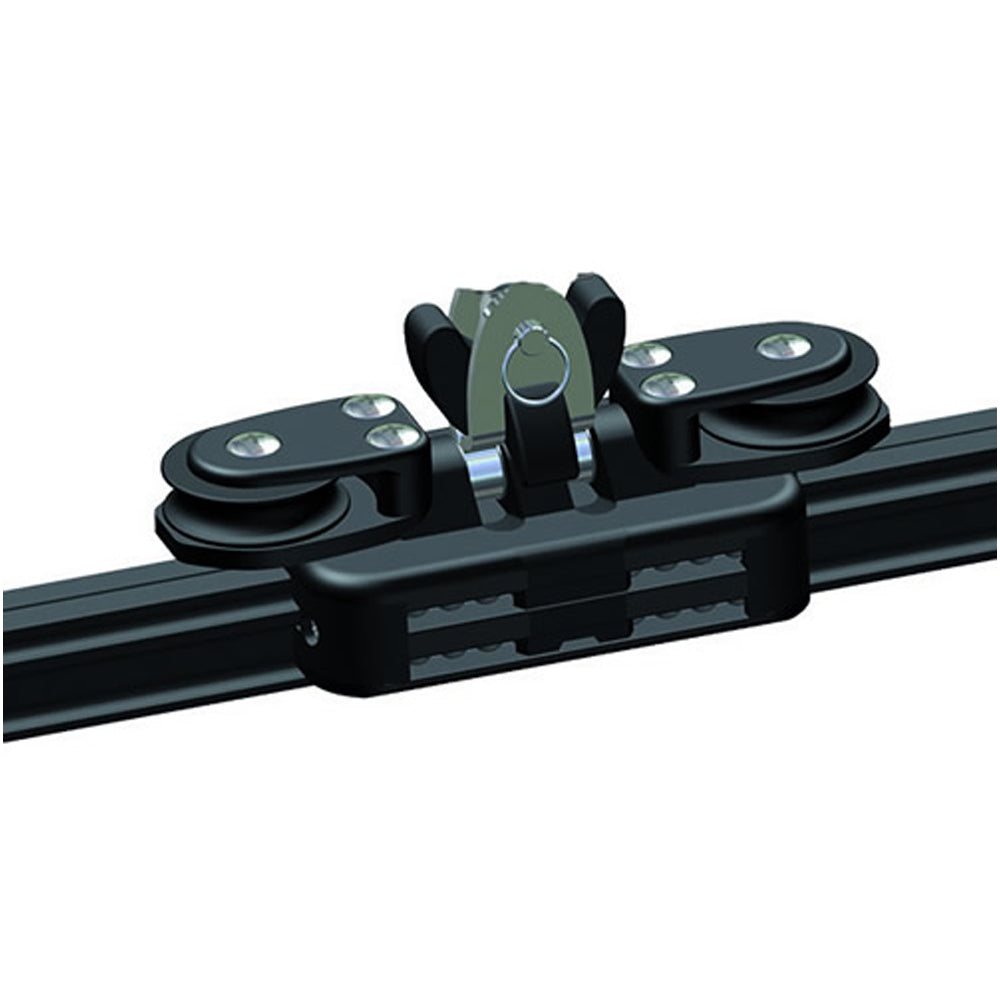

Antal 4Race Car - Ball bearing - Car Sizes: 100 - w/ 1 Sheave

Car with 1 sheave. Ball bearing car in hard black anodized aluminum with four ball circuits: 2 Torlon ball circuits (lower) and 2 Delrin ball circuits (upper). The car will remain on the track even after ball bearing failure (overload). Side windows for easy maintenance and ball bearing cleaning and/or replacement. The car, the track and all components are extruded in high strength alloy and hard black anodized. (Steel parts: AISI 316).

Our Part # ANT4102 | Antal Part # 4102

features:

• Higher efficiency and smoother running.
• Better load resistance to vertical (V), horizontal (H) and torsional (M) loads.
• Higher safety margin as the car will remain on the track even after ball bearing failure (overload).
• Travelers are fitted with 2 Torlon ball circuits (lower) and 2 Delrin ball circuits (upper).
• Single double and triple control sheaves, with or without becket, can be fitted on the car.
• One-piece extruded body.
• The traveler, the track and all components are extruded in high strength alloy and hard black anodized. (Steel parts: AISI 316).
• Side windows for easy maintenance and ball bearing cleaning and/or replacement.
• Standard shackle or special "stand-up" joint.

Length: 110 mm
Width: 62 mm
Track dimensions: 26x20 mm
Weight: 0.23 kg
SWL: 820 kg
Ø control pulley: 35 mm
Ø suggested block: 60 mm
No. balls: 1/4" 50 x Torlon + 50 x Delrin
M: 140 mm
