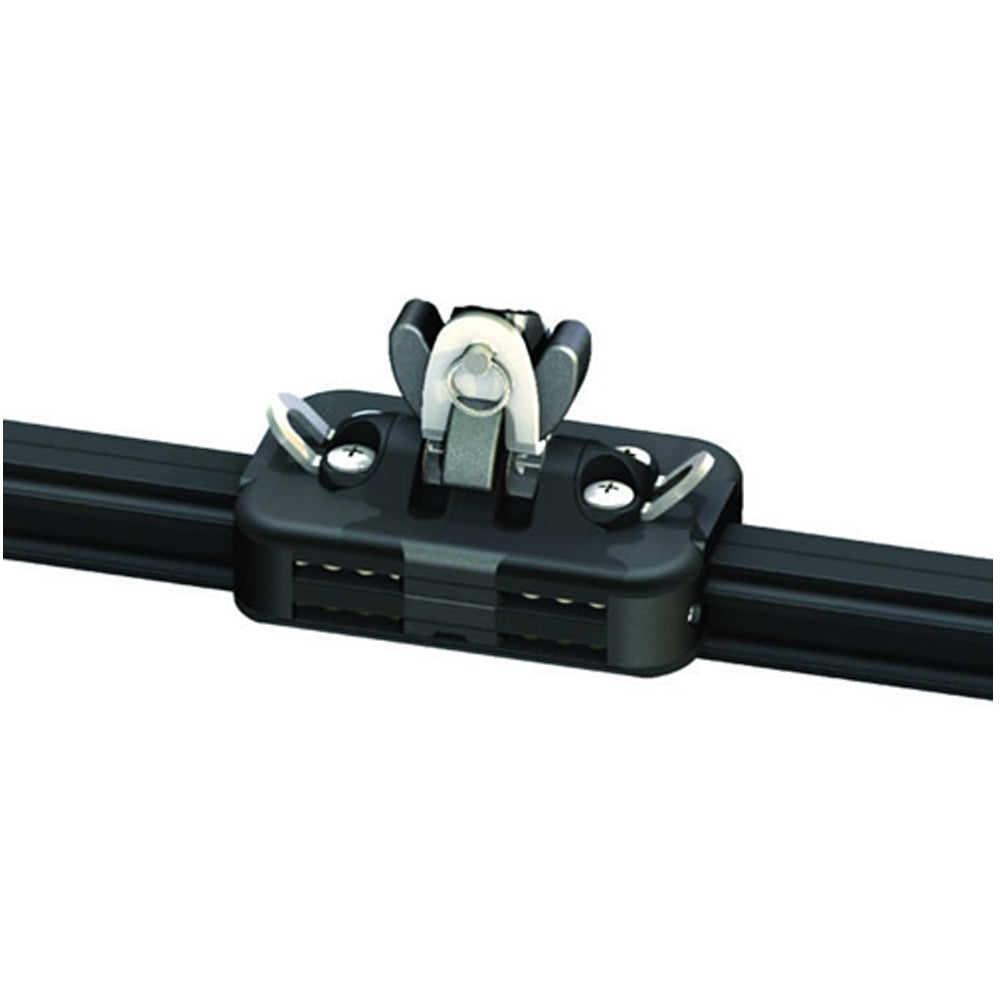

Antal 4Race Car - Ball bearing - Car Sizes: 100 - w/ Beckets

Car with Becket. Ball bearing car in hard black anodized aluminum with four ball circuits: 2 Torlon ball circuits (lower) and 2 Delrin ball circuits (upper). The car will remain on the track even after ball bearing failure (overload). Side windows for easy maintenance and ball bearing cleaning and/or replacement. The car, the track and all components are extruded in high strength alloy and hard black anodized. (Steel parts: AISI 316).
This traveler is 98 mm long and 62 mm wide. The weight is 0.23 kg and the working load = 820 kg.
Fitted with 1/4 in balls (50 Torlon balls on the lower races and 50 Delrin on the upper races). The sheaves for the car control are D=35 mm. The complete systems includes 1.5 m long track. The sheet block (OPF 60) is not included.
Part Number: 4101

Our Part # ANT4101 | Antal Part # 4101

Length: 110 mm
Width: 62 mm
Track dimensions: 26x20 mm
Weight: 0.24 kg
SWL: 820 kg
Becket: Yes
Ø suggested block: 60 mm
No. balls: 1/4" 54 x Torlon + 54 x Delrin
