Antal Clew Block (Aluminum) - Sheave: 4.7 in (120 mm) & Max Line: 11/16 in (18 mm)
Antal Clew Block (Aluminum) - Sheave: 4.7 in (120 mm) & Max Line: 11/16 in (18 mm) is backordered and will ship as soon as it is back in stock.
Description
Description

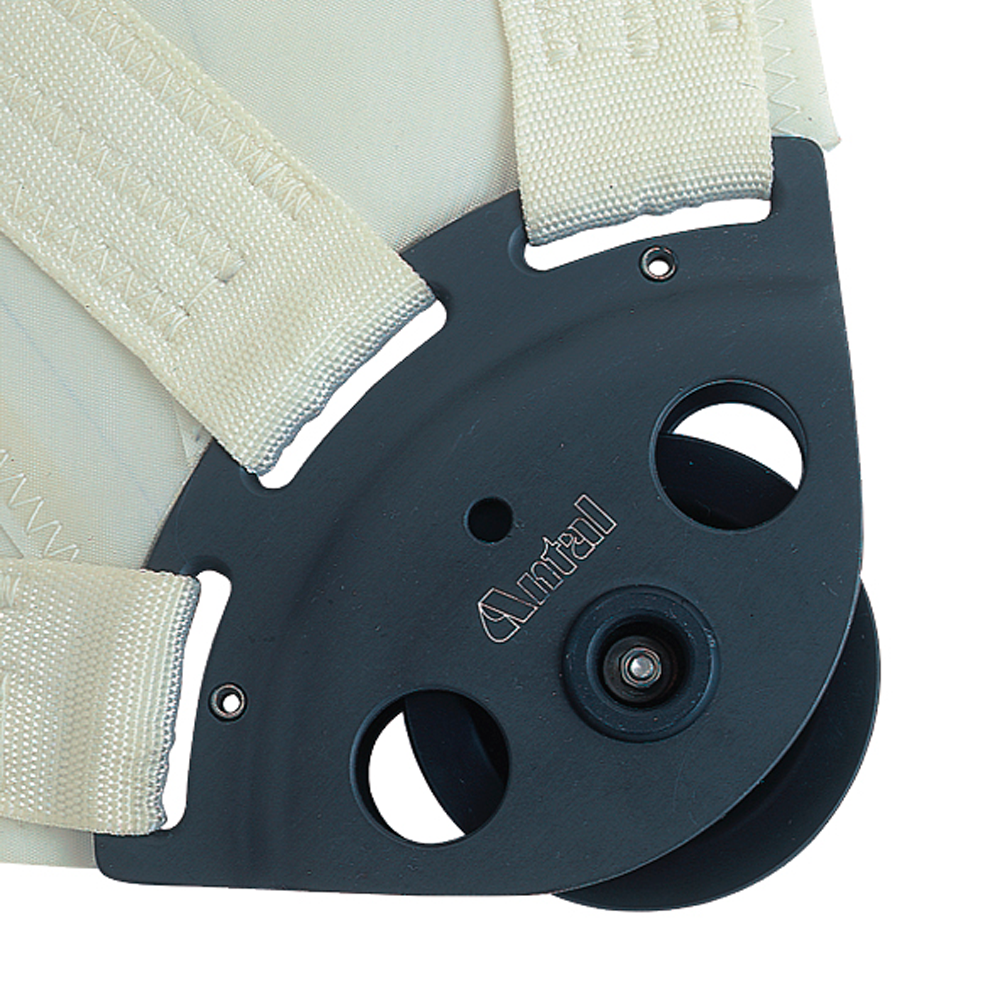

Solution designed to solve the connection of a sheave to the furling mainsail clew efficiently.
The block is contained within the size of the sail, thus allowing a larger surface of the mainsail to be used.
The choice of materials guarantees the least weight as well as a very good mechanical resistance to the environment. Particular care has been taken over the ease of connection which is obtained by normal âwebbingâ. This ensures moreover a very good distribution of the load on the sail.
Our Part # ANT991124A | Antal Part # 991.124/A
Technical Information
Technical Information

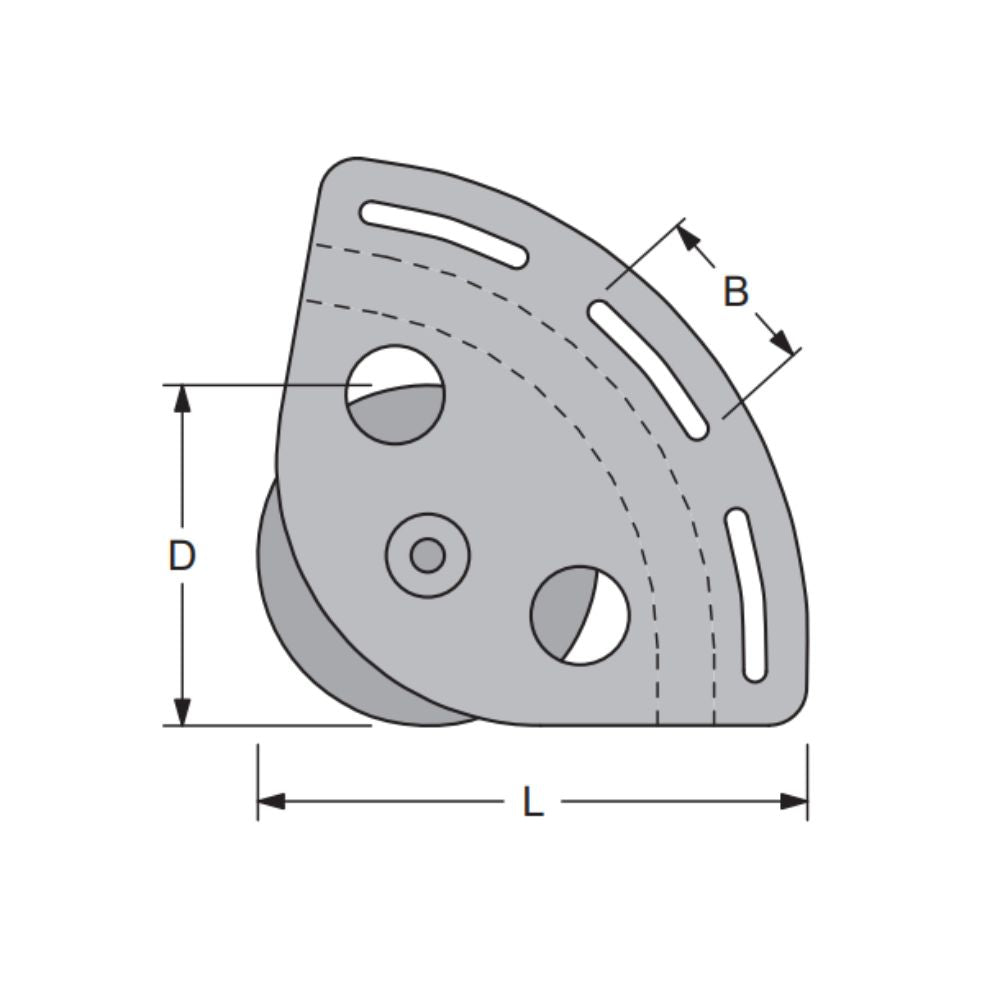

Description | Imperial | Metric |
---|---|---|
Line Diameter | 5/7 in. | 18.00 mm. |
D | 4 5/7 in. | 120.00 mm. |
L | 7 1/2 in. | 190.00 mm. |
B | 1/6 x 1 4/5 in. | 4.00 x 46.00 mm. |
Safe Working Load | 6615.00 lb. | 3000.00 kg. |
Weight | 2.29 lb. | 1.04 kg. |
