Antal Clew Block (Stainless Steel) - Sheave: 3.5 in (90 mm) & Max Line: 5/8 in (16 mm)

SKU: ANT991093S  |  Manuf. Code: 991.093/S
$461.11 $415.00 USD
Special Order Item: 8 - 10 weeks.

Description

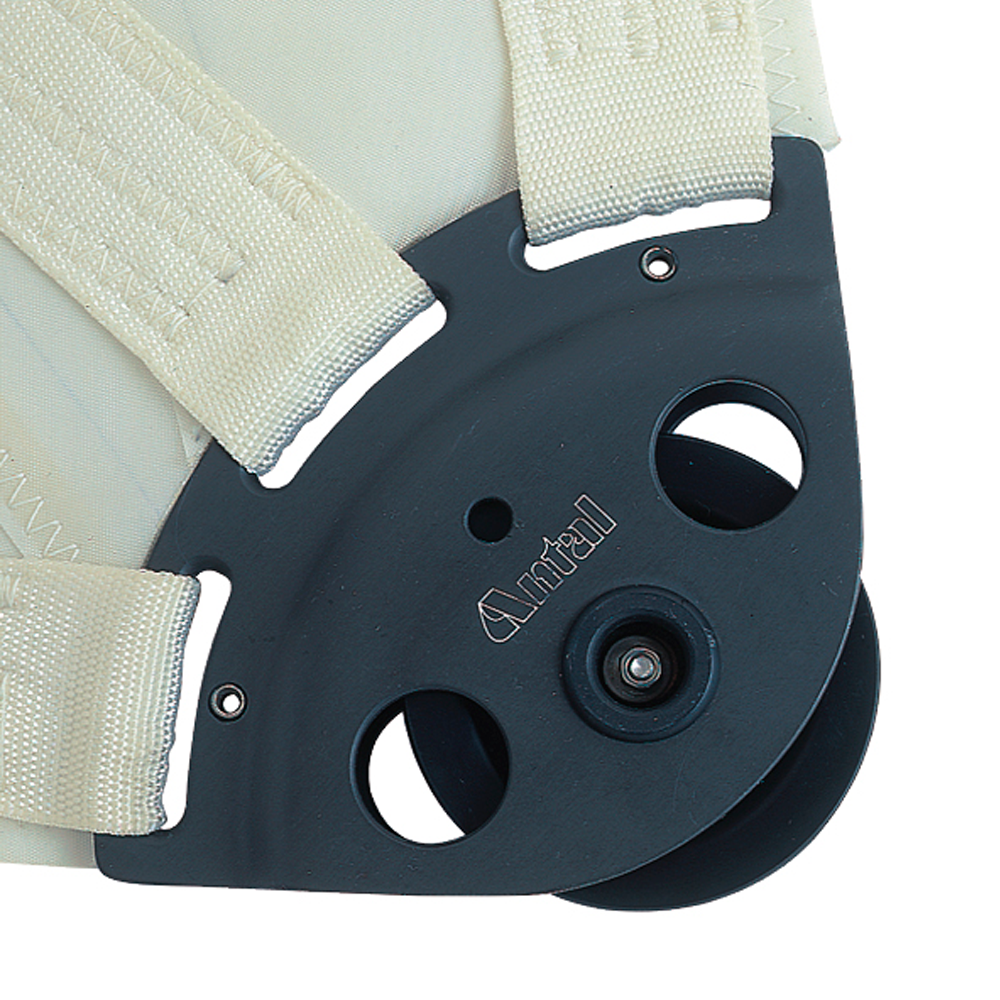

Solution designed to solve the connection of a sheave to the furling mainsail clew efficiently.

The block is contained within the size of the sail, thus allowing a larger surface of the mainsail to be used.

The choice of materials guarantees the least weight as well as a very good mechanical resistance to the environment. Particular care has been taken over the ease of connection which is obtained by normal “webbing”. This ensures moreover a very good distribution of the load on the sail.

Our Part # ANT991093S | Mfr. Part # 991.093/S

Technical Information

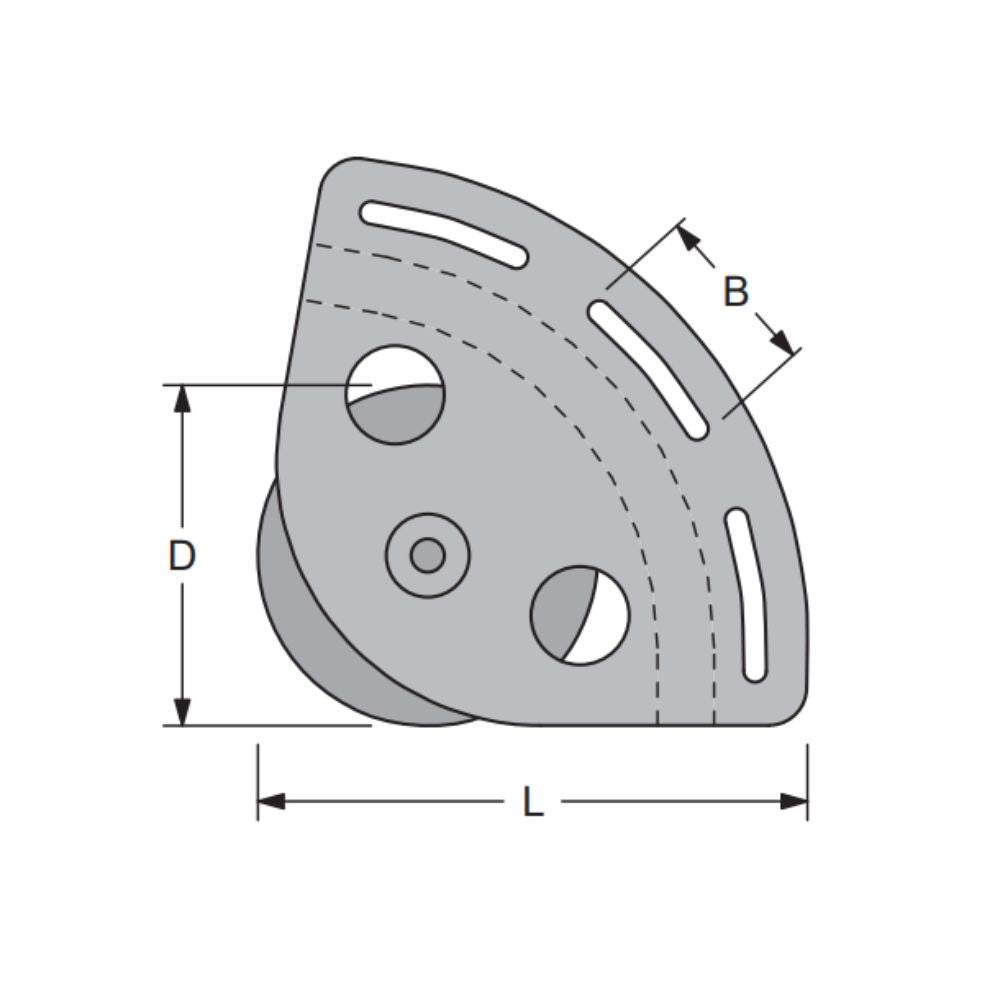

DescriptionImperialMetric
Line Diameter5/8 in.16.00 mm.
D3 1/2 in.90.00 mm.
L5 5/7 in.145.00 mm.
B1/8 x 1 4/5 in.3.00 x 46.00 mm.
Safe Working Load4410.00 lb.2000.00 kg.
Weight0.99 lb.0.45 kg.
