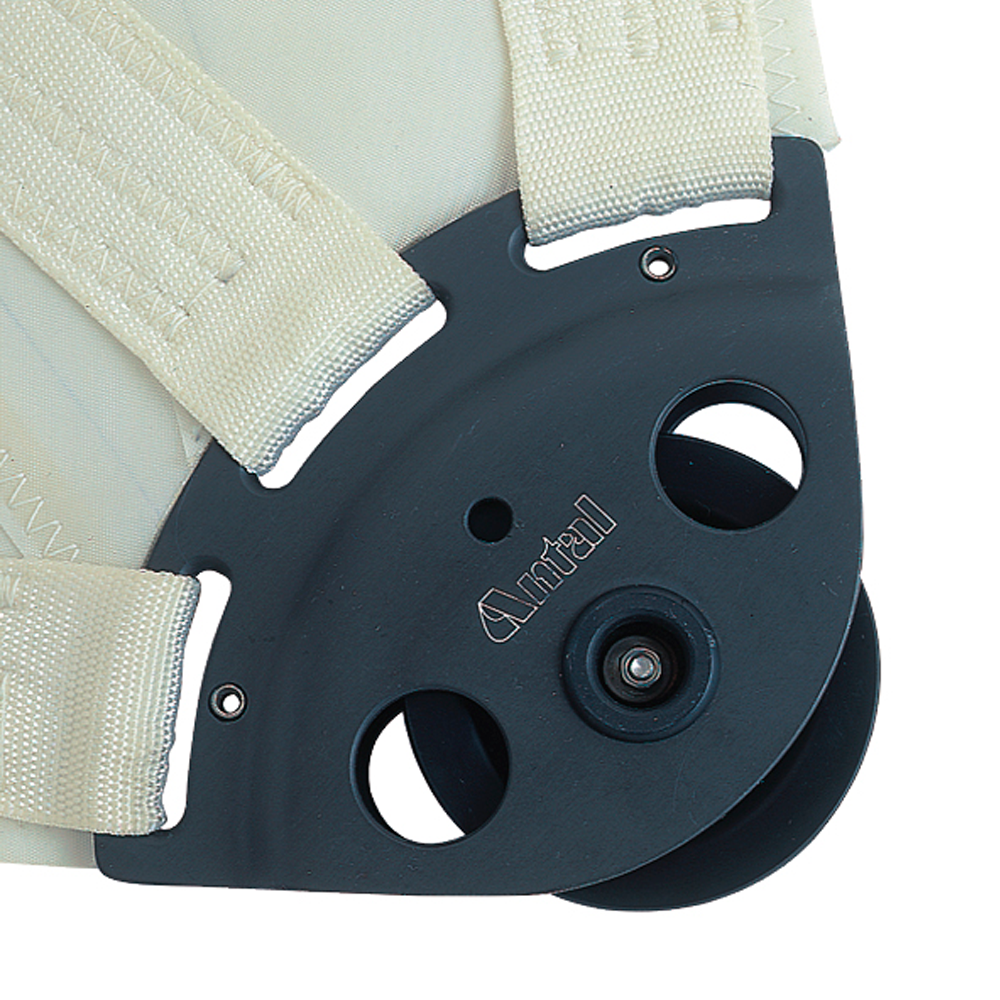

Antal Clew Block (Aluminum) - Sheave: 3.5 in (90 mm) & Max Line: 5/8 in (16 mm)
Antal Clew Block (Aluminum) - Sheave: 3.5 in (90 mm) & Max Line: 5/8 in (16 mm) is backordered and will ship as soon as it is back in stock.
Description
Description
Solution designed to solve the connection of a sheave to the furling mainsail clew efficiently.
The block is contained within the size of the sail, thus allowing a larger surface of the mainsail to be used.
The choice of materials guarantees the least weight as well as a very good mechanical resistance to the environment. Particular care has been taken over the ease of connection which is obtained by normal âwebbingâ. This ensures moreover a very good distribution of the load on the sail.
Our Part # ANT991093A | Antal Part # 991.093/A
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Line Diameter | 5/8 in. | 16.00 mm. |
D | 3 1/2 in. | 90.00 mm. |
L | 5 5/7 in. | 145.00 mm. |
B | 1/8 x 1 4/5 in. | 3.00 x 46.00 mm. |
Safe Working Load | 4410.00 lb. | 2000.00 kg. |
Weight | 0.99 lb. | 0.45 kg. |
