Antal Clew Block (Stainless Steel) - Sheave: 2.8 in (70 mm) & Max Line: 9/16 in (14 mm)
Antal Clew Block (Stainless Steel) - Sheave: 2.8 in (70 mm) & Max Line: 9/16 in (14 mm) is backordered and will ship as soon as it is back in stock.
Description
Description

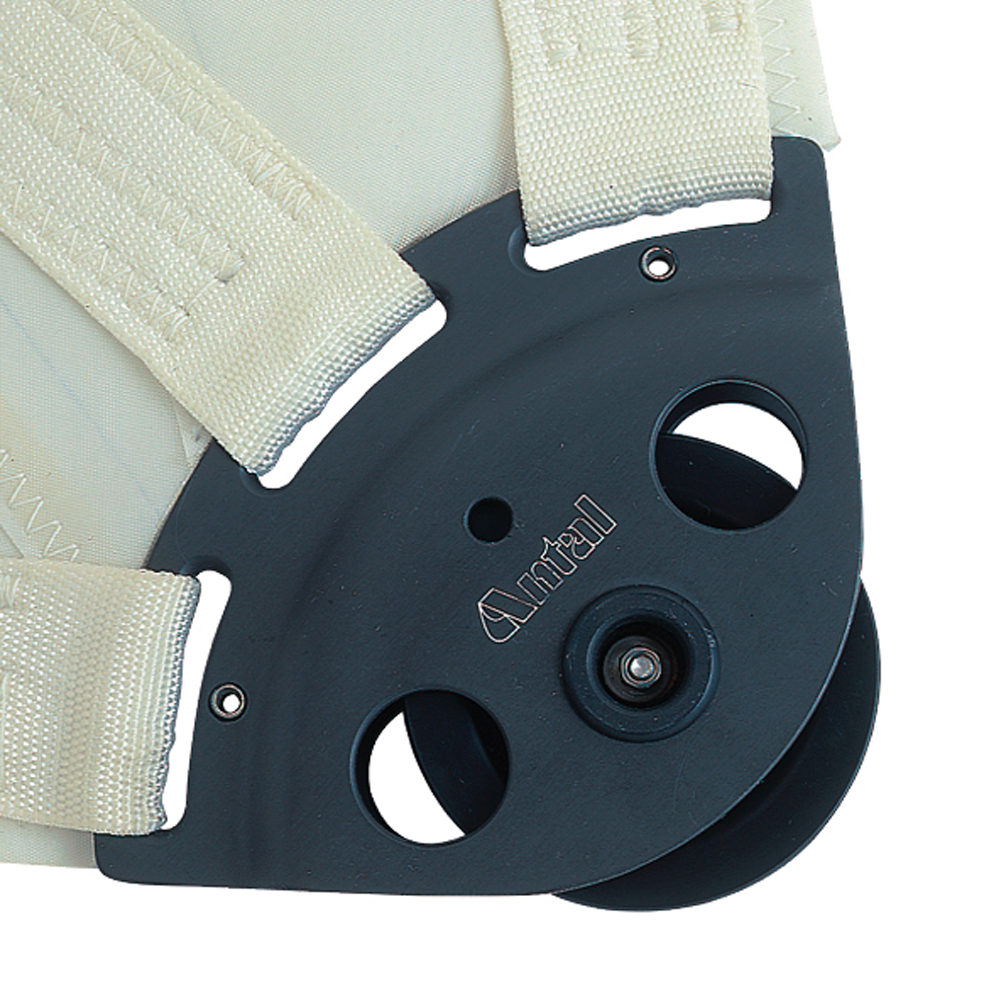

Solution designed to solve the connection of a sheave to the furling mainsail clew efficiently.
The block is contained within the size of the sail, thus allowing a larger surface of the mainsail to be used.
The choice of materials guarantees the least weight as well as a very good mechanical resistance to the environment. Particular care has been taken over the ease of connection which is obtained by normal âwebbingâ. This ensures moreover a very good distribution of the load on the sail.
Our Part # ANT991073S | Antal Part # 991.073/S
Technical Information
Technical Information

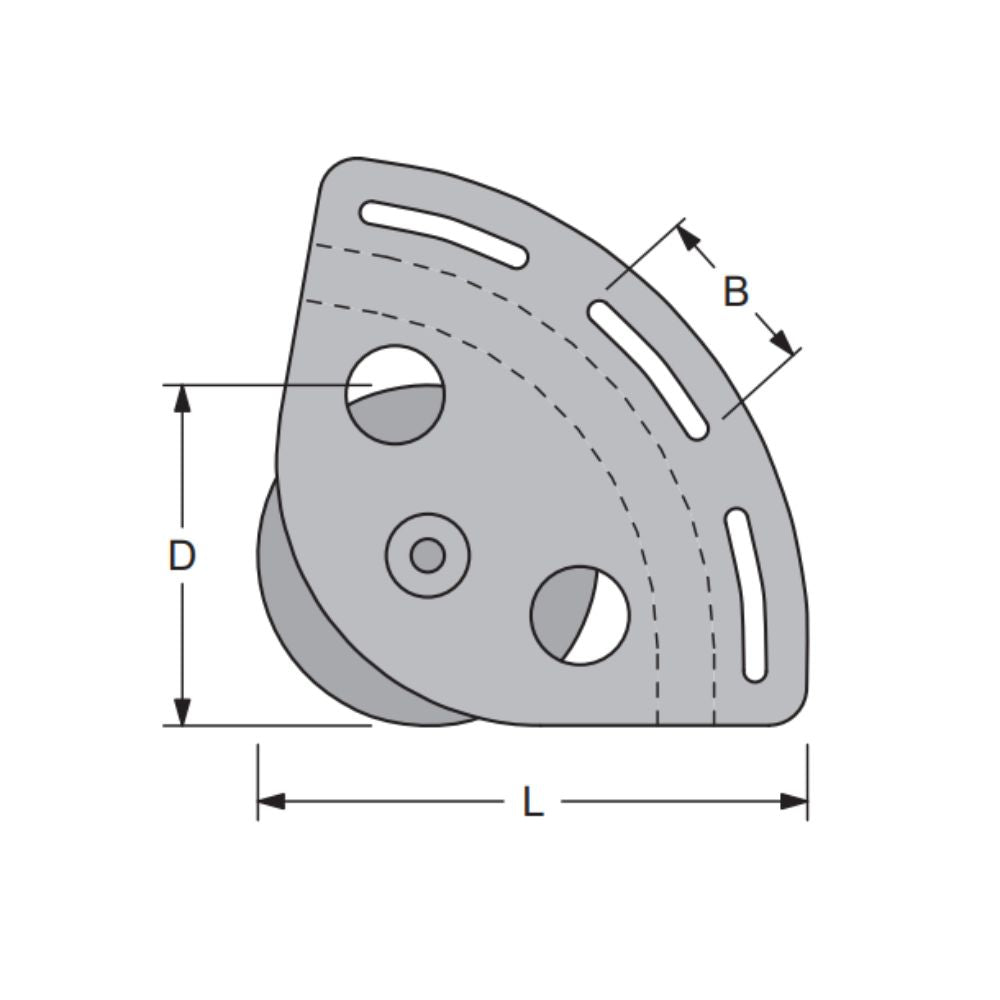

Description | Imperial | Metric |
---|---|---|
Line Diameter | 5/9 in. | 14.00 mm. |
D | 3.00 in. | 75.00 mm. |
L | 4 2/5 in. | 112.00 mm. |
B | 1/8 x 1 3/7 in. | 3.00 x 36.00 mm. |
Safe Working Load | 2205.00 lb. | 1000.00 kg. |
Weight | 0.51 lb. | 0.23 kg. |
