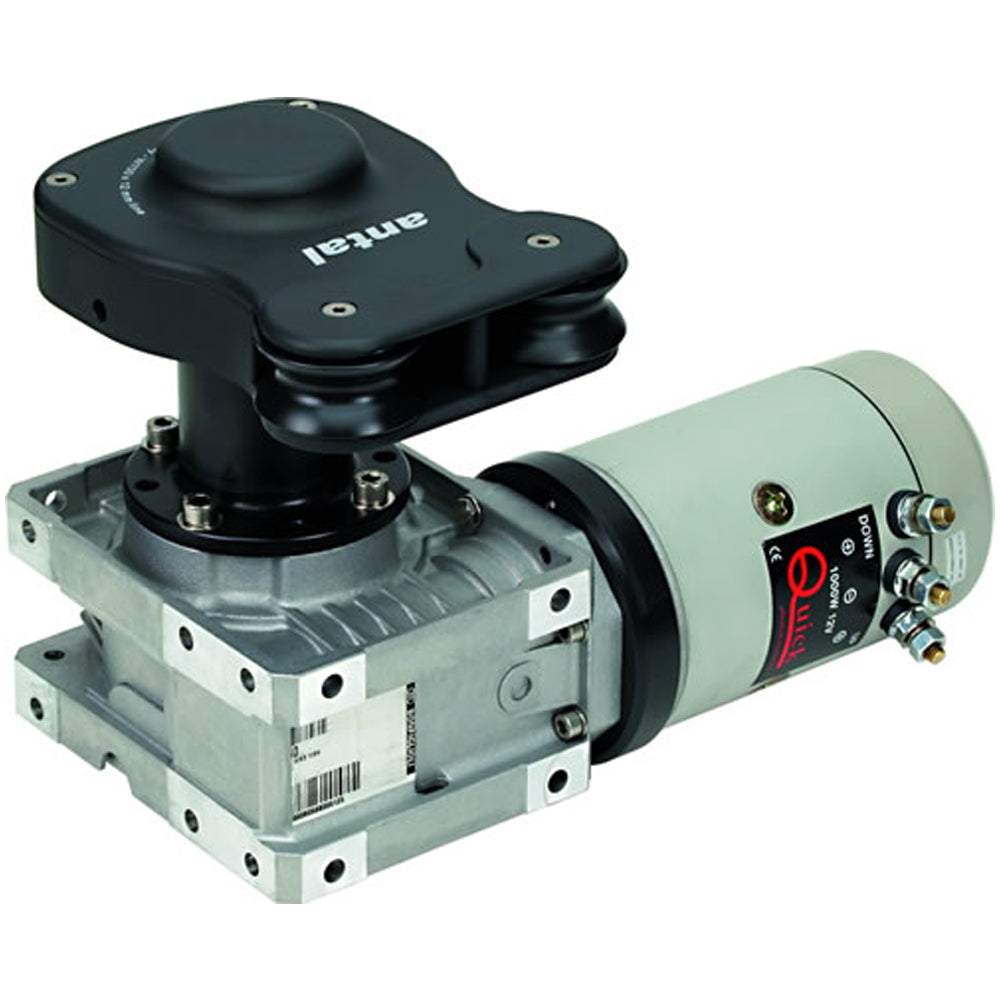

Antal Line Driver Electric - Voltage: 700W / 24V

The control system is connected to a traveler on a closed circuit and ensures efficient control and a clean layout for systems such as the mainsail sheet.

Line drivers mount a self tailing sheave which operates in both direction with a textile "gripping" system that is efficient even if the circuit is not under strain and causes no wear in the rope. This is a solution done for the control of the main car with a simple "self-tailing" sheave on the deck, a motor and gearbox under the deck. Three sizes available with 700, 1000 and 1500 W motors in 12 or 24 Volt version.

Our Part # ANTLD70024 | Mfr. Part # LD700/24

Motor: 700

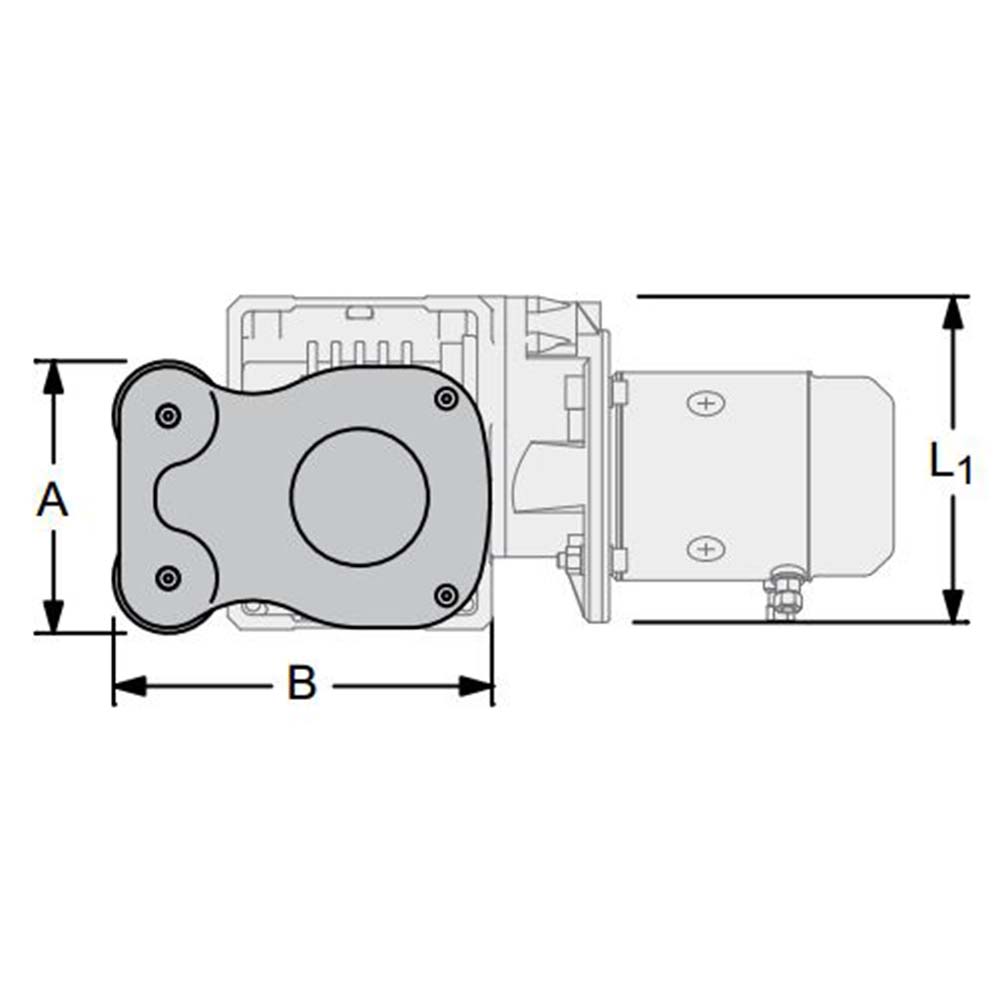

A: 149 mm / 5 7/8 in
B: 207 mm / 8 5/32 in
D: 160 mm / 6 5/16 in
H1: 56 mm / 2 7/32 in
H2: 58 mm / 2 19/64 in
H3: 218 mm / 8 19/32 in
L1: 183 mm / 7 7/32 in
L2: 73 mm / 2 7/8 in
L3: 293 mm / 11 35/64 in
Line: 12 mm / 15/32 in
